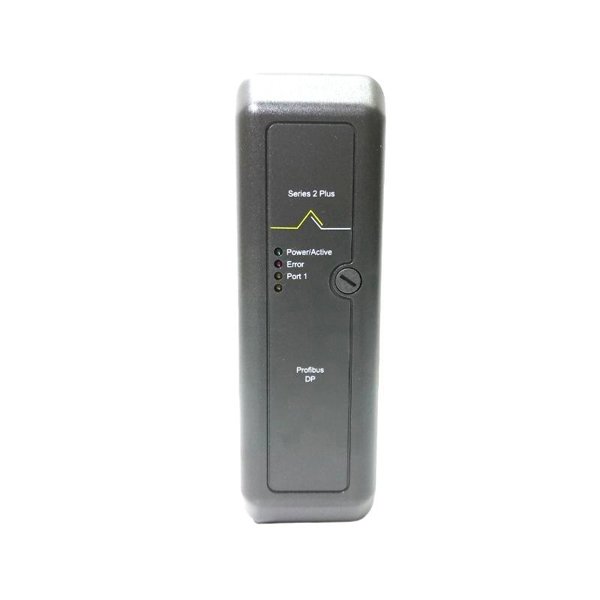

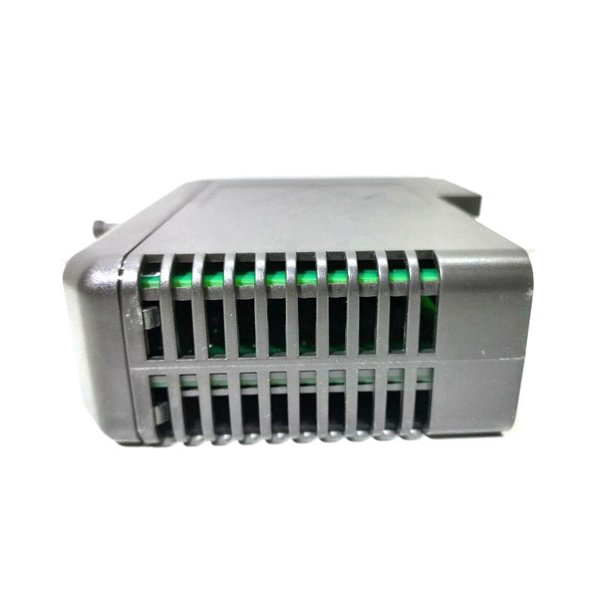

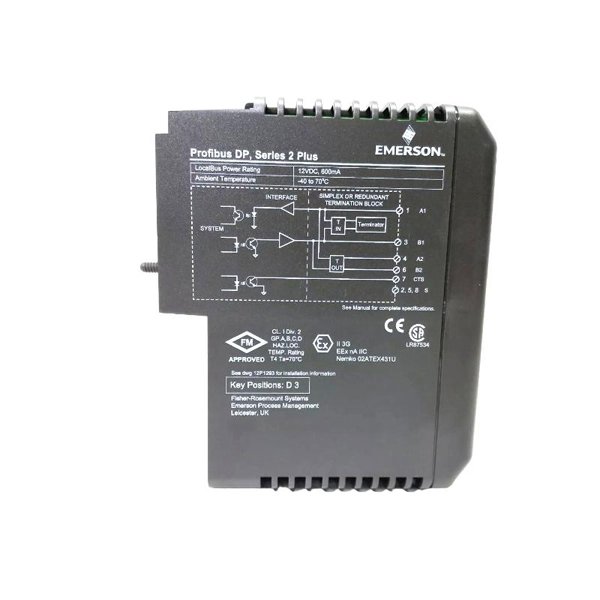

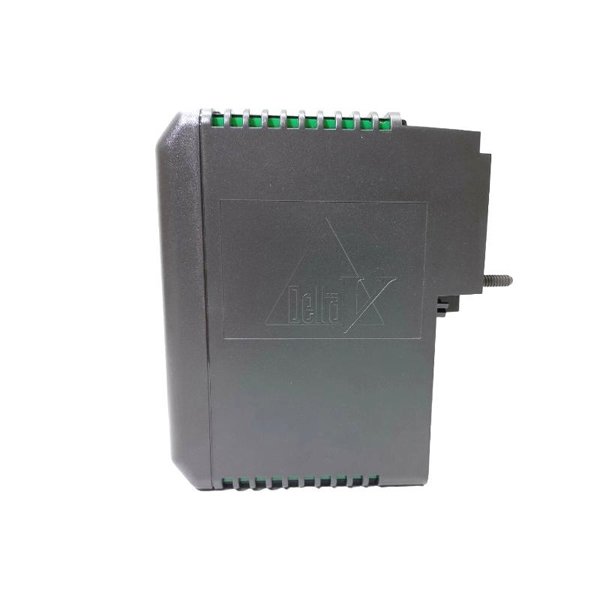

Emerson VE4022 M-series Profibus DP Interface Card
Manufacturer:Emerson
Product Number:VE4022
Product Type:Profibus DP Interface Card
Origin:USA
Dimensions:107 x 41 x 105 mm
Weight:0.3 kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Emerson VE4022 M-series Profibus DP Interface Card is engineered for seamless communication between DeltaV systems and discrete field devices. It serves as a robust master interface for Profibus DP networks, supporting high data throughput and system diagnostics in a compact, easy-to-install format.
Key Features
-
Native controller-level Profibus DP communication
-
Supports up to 64 DP slaves
-
High-speed RS485 communication (up to 1.5 Mbps)
-
Redundant master option with auto switch-over
-
Reduces wiring and installation complexity
-
Conforms to IEC, FM, CSA, ATEX, and Marine certifications
-
Supports GSD file imports for third-party device configuration
Applications
-
Discrete actuator and sensor interfacing
-
Motor Control Center integration
-
Remote I/O island systems
-
Process automation requiring modular, expandable bus technology
-
Industrial sectors requiring IEC/ATEX-compliant systems
Advantages
-
Scalable Architecture: Easily integrates new devices without affecting existing operations
-
Redundancy Support: Built-in auto-failover reduces downtime risks
-
Simplified Configuration: One-step setup using DeltaV’s diagnostics and engineering tools
-
Cost-Efficient: Reduces wiring cost versus classic I/O
-
Flexible Bus Integration: Supports combination with FOUNDATION Fieldbus, DeviceNet, AS-i, and traditional I/O
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | VE4022 |
| Interface Type | Profibus DP (RS485) |
| Baud Rate | 9.6 Kbps to 1.5 Mbps |
| Max Number of Slaves | 64 per segment |
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5–95%, non-condensing |
| Protection Rating | IP20 |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm (5–16 Hz); 0.5 g (16–150 Hz) |
| Cable Type | Twisted-pair shielded copper |
| Dimensions (W x H x D) | 107 × 41 × 105 mm |
| Weight | 0.3 kg |
| Certifications | CE, FM, CSA, ATEX, IEC-Ex, Marine |
| Redundancy Support | Yes (with VE4038) |
Frequently Asked Questions (FAQ)
Q1: What type of devices can VE4022 communicate with?
A1: It interfaces with discrete actuators, sensors, MCCs, and remote I/O that support Profibus DP.
Q2: Is redundancy supported?
A2: Yes. For redundancy, the VE4038 version includes two interface cards and a redundant terminal block.
Q3: How many DP slaves can the VE4022 handle?
A3: It can support up to 64 DP slave devices per segment.
Q4: Can I mix Profibus DP with other protocols in DeltaV?
A4: Yes. DeltaV allows mixing of Profibus DP, DeviceNet, HART, FOUNDATION Fieldbus, and more.
Q5: Does VE4022 require external converters?
A5: No. It communicates natively with DeltaV controllers without any intermediate devices.
Q6: Can I replace a failed card without shutting down the system?
A6: Yes, in safe areas, cards can be replaced under power.
Q7: What is the typical switchover time in redundant mode?
A7: Less than 100 milliseconds.
Q8: How does the card handle GSD files?
A8: GSD files can be imported directly into the DeltaV system for easy device configuration.
Q9: What cabling does it require?
A9: Twisted-pair shielded copper cable (standard RS485).
Q10: What kind of diagnostic data does it support?
A10: Station-related, module-related, and channel-related diagnostics.
