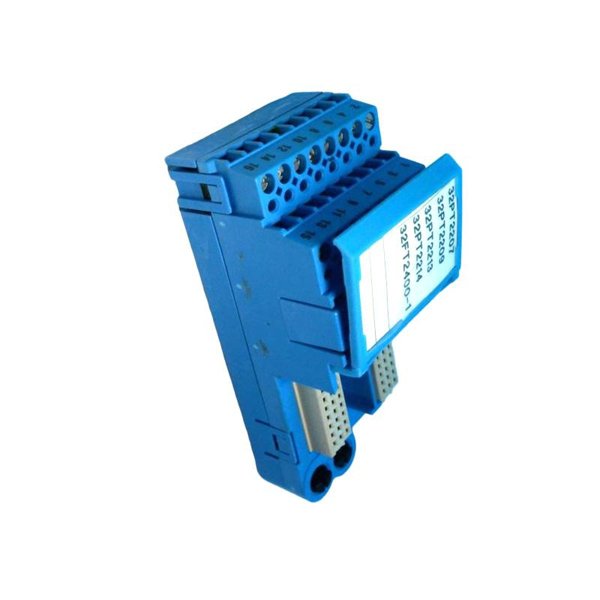

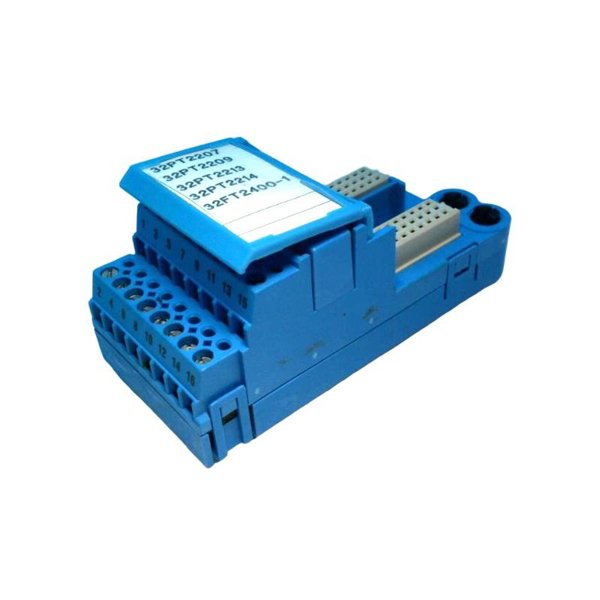

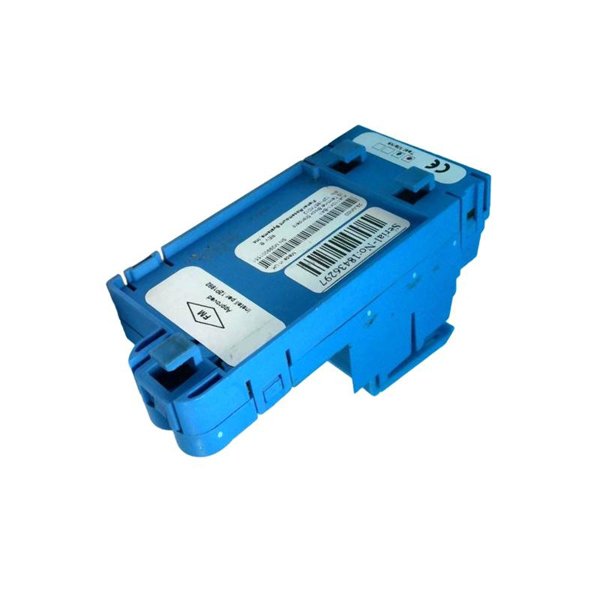

Emerson KJ4110X1-BA1 I/O Terminal Block

The Emerson KJ4110X1-BA1 I/O terminal block is designed for use in industrial control systems such as DeltaV™, OVATION™, and PLC systems. This terminal block acts as an intermediary for field devices, managing the flow of discrete signals between control systems and field devices. It is designed to handle both digital and analog I/O signals, offering reliability and flexibility in industrial applications. With its robust design and easy integration into existing systems, the KJ4110X1-BA1 helps optimize communication between controllers, sensors, and actuators. It is ideally suited for environments that require high-density wiring solutions while minimizing space usage and panel clutter.

Technical Specifications

Typical Applications

The Emerson KJ4110X1-BA1 I/O terminal block is suitable for a wide range of industrial applications, including but not limited to:

• DCS and PLC Systems: Facilitating signal transfer between field devices and the main control system.

• Power Plants: Connecting sensors, actuators, and control systems in a power generation environment.

• Process Industries: Used for managing analog and digital signals in chemical, petrochemical, and pharmaceutical applications.

• Factory Automation: Enabling control and monitoring of manufacturing processes with high-density wiring requirements.

• Safety and Alarm Systems: Ensuring reliable communication between alarm systems, sensors, and control systems.

• System Integration: Seamlessly integrates with existing control panels and other modular I/O equipment in a distributed I/O architecture.

Key Advantages

The Emerson KJ4110X1-BA1 offers numerous benefits for industrial applications:

• High Density: Supports multiple I/O channels, allowing for space-saving installations in tight panels or control rooms.

• Flexible Mounting: Can be mounted on DIN rail or directly on the panel, providing flexibility based on installation requirements.

• Easy to Integrate: Compatible with DeltaV™, OVATION™, and other DCS/PLC systems, ensuring easy integration into existing setups.

• Efficient Signal Handling: Capable of handling both discrete and analog signals, making it versatile across a wide range of applications.

• Robust Design: Built to endure the harsh conditions of industrial environments, including exposure to vibrations, temperature fluctuations, and moisture.

• Simplified Maintenance: Spring-clamp or screw-type terminals ensure ease of installation and service, minimizing downtime.

• Reduced Wiring Complexity: Consolidates multiple signal types in a single terminal block, reducing the need for multiple individual terminal connections and simplifying wiring.

• Cost-Effective: Eliminates the need for separate modules for analog and discrete signals, providing a more economical solution.

• Modular and Expandable: Easily expandable for future needs, allowing for simple integration of additional channels or systems.

• Improved Safety: Ensures a reliable connection between field devices and control systems, reducing the risk of signal failure in safety-critical applications.

FAQ

What types of signals can the KJ4110X1-BA1 terminal block handle?

The terminal block is designed for both discrete and analog signals. It supports the integration of digital I/O signals (on/off) and analog signals (e.g., 4-20 mA, 0-10V) for efficient control and monitoring.

What is the maximum current rating per channel?

Typically, the terminal block supports up to 1 A per channel, but this can vary depending on the application. Ensure to check the device specifications and system requirements.

Can this terminal block be used for both input and output signals?

Yes, the KJ4110X1-BA1 terminal block can be used for both input and output signals. The configuration can be customized based on your system’s needs.

How do I mount the terminal block?

The KJ4110X1-BA1 terminal block can be mounted on a standard DIN rail or directly onto the panel using its mounting holes, offering flexibility for different panel designs.

What is the voltage rating for this terminal block?

The KJ4110X1-BA1 terminal block supports a voltage rating of up to 30 VDC. Ensure the voltage level used in your system is within this limit.

Can I use this terminal block for high-power applications?

The terminal block is suitable for low-power digital and analog signals. For high-power applications, ensure that the current and voltage ratings align with your equipment’s specifications.

Is this terminal block compatible with third-party control systems?

While it is optimized for DeltaV™ and OVATION™ systems, the terminal block can be used with most standard PLC and DCS systems. Always verify compatibility with your specific control system.

Does the KJ4110X1-BA1 support signal isolation between channels?

Yes, the terminal block features channel-to-channel isolation, ensuring that signals do not interfere with one another, improving signal integrity.

How do I connect the I/O signals to the terminal block?

The KJ4110X1-BA1 uses spring-clamp or screw-type terminals to securely connect I/O signals. Follow the appropriate wiring diagram for your system configuration.

Can I expand the number of channels in my system with this terminal block?

Yes, the terminal block can be expanded to accommodate more channels. You can add additional modules to handle more signals as your system grows.
