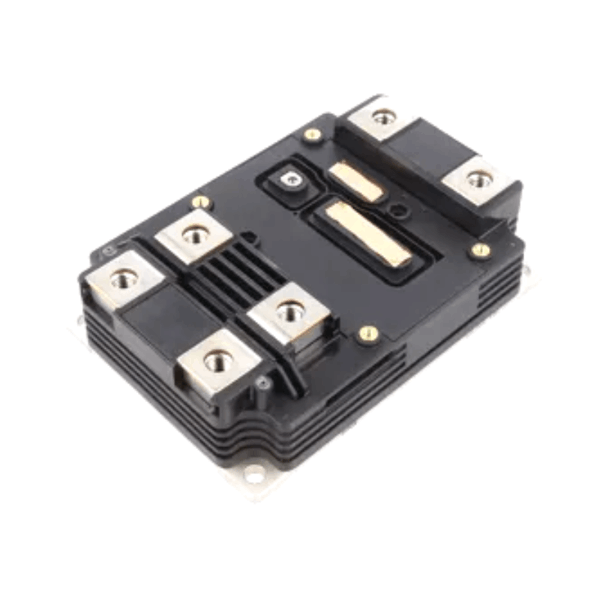

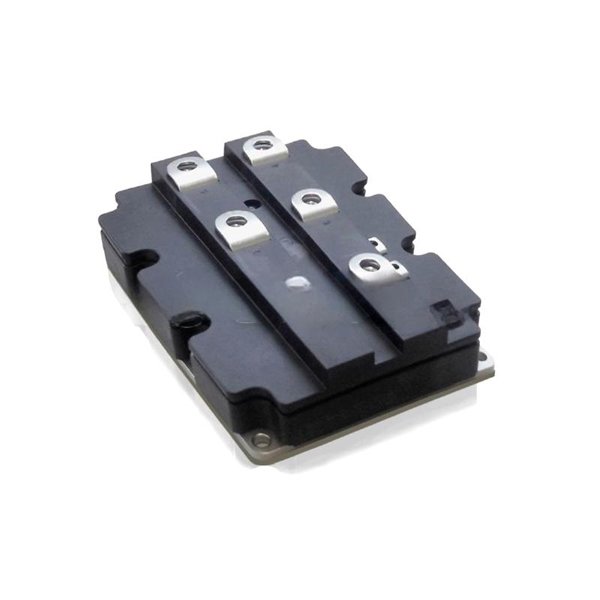

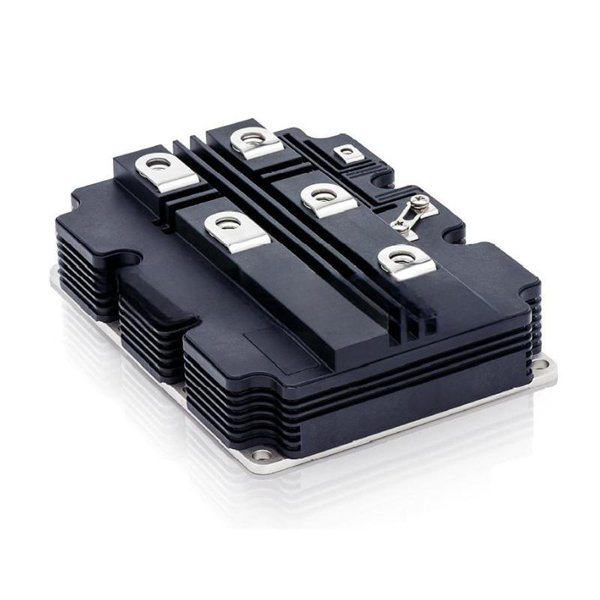

ABB 5SNA1000G650300 IGBT Modules
Manufacturer:ABB
Product Number:5SNA1000G650300
Condition:IGBT Modules
Origin:Sweden
Dimensions:190 x 48 x 140 mm
Weight:1.33 kg
Views:27
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 5SNA1000G650300 is a high-performance snubber module designed to protect semiconductor devices from voltage spikes and transient overvoltages. It is widely used in industrial and power electronics applications to enhance system reliability and longevity.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | 5SNA1000G650300 |
| Type | Snubber Module |
| Rated Voltage | 650V |
| Capacitance | 1.0µF |
| Resistance | 30Ω |
| Operating Temperature | -40°C to +125°C |
| Dimensions | 190 x 48 x 140 mm |
| Weight | 1.33 kg |
| Mounting Style | Screw or Snap-in |
| Compliance | RoHS, UL Certified |
Applications
The ABB 5SNA1000G650300 is commonly used in:
-
Motor Drives – Protects IGBTs and diodes from voltage transients.
-
Power Supplies – Reduces switching losses and EMI.
-
Renewable Energy Systems – Used in solar inverters and wind power converters.
-
Industrial Automation – Ensures stable operation of high-frequency switching circuits.
-
UPS Systems – Enhances reliability in uninterruptible power supplies.
Product Advantages
-
High Reliability – Robust design ensures long-term performance in harsh environments.
-
Low Power Dissipation – Optimized resistance reduces heat generation.
-
Compact Size – Space-saving design for easy integration.
-
Wide Temperature Range – Operates efficiently in extreme conditions.
-
Easy Installation – Flexible mounting options for quick assembly.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 5SNA1000G650300?
A1: It acts as a snubber circuit to suppress voltage spikes and protect semiconductor devices.
Q2: Can this module be used in high-frequency applications?
A2: Yes, it is designed for high-frequency switching environments.
Q3: What is the expected lifespan of this snubber module?
A3: Under normal operating conditions, it can last over 5+ years.
Q4: Is external cooling required?
A4: No, its low power dissipation eliminates the need for additional cooling.
Q5: Can it be used in parallel for higher capacitance?
A5: Yes, but ensure proper balancing to avoid uneven current distribution.
Q6: What are the failure modes of this module?
A6: Common failures include open-circuit resistance or degraded capacitance due to aging.
Q7: Is it compatible with all IGBT modules?
A7: It is optimized for ABB IGBTs but can work with other brands with matching specs.
Q8: Does it require maintenance?
A8: No, it is maintenance-free under standard conditions.
Q9: What is the storage temperature range?
A9: -40°C to +85°C in a dry environment.
Q10: Where can I find the datasheet?
A10: The datasheet is available on ABB’s official website or through authorized distributors.
