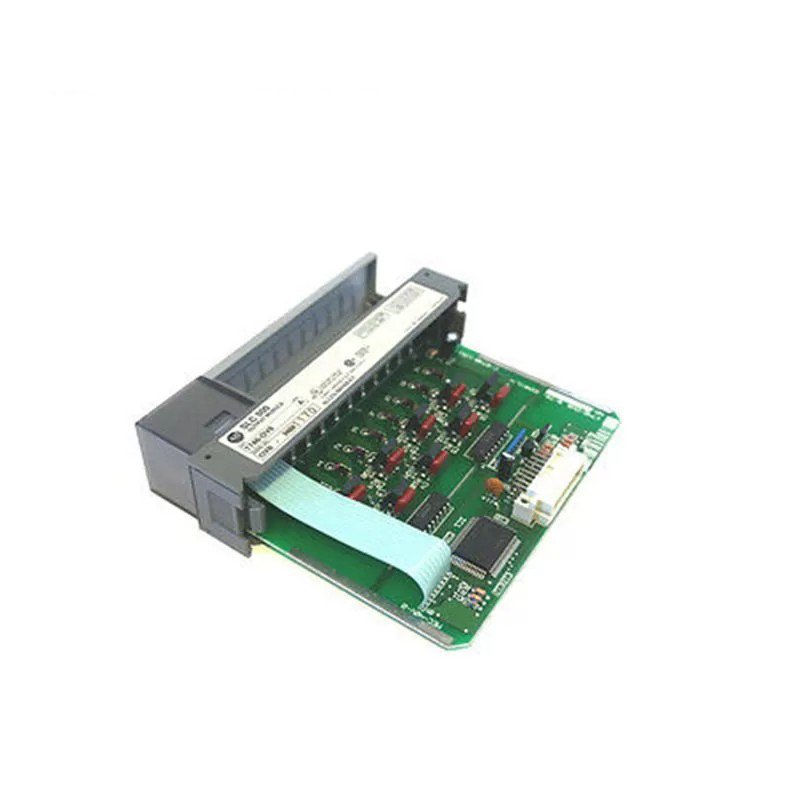

The Allen-Bradley 1746-OV8 is a digital I/O module designed for the SLC 500 system. This module offers reliable performance for general industrial automation.

Key Features

• 8 Discrete Outputs: Control up to eight different devices or processes with individual 24V DC outputs.
• Current Sinking: Outputs function as current sinks, requiring an external load to complete the circuit.
• Voltage Range: Operates within a voltage range of 10-50V DC.
• Compact Design: Installs easily as a single-slot module in any SLC 500 chassis.
• General Purpose: Suitable for a wide range of applications.

Technical Specifications

• Model Number: 1746-OV8
• Manufacturer: Allen-Bradley / Rockwell Automation
• Series: SLC 500
• Type: Digital Output Module
• Voltage: 10-50V DC (sink)
• Outputs: 8 points, 24V DC
• Current: 8 points per common
• Backplane Current: 0.135A, 5V DC
• Mounting: Single slot

Applications

Use the 1746-OV8 to control various devices and processes, including:

• Solenoids
• Relays
• Motors
• Lights
• Other electrical loads
