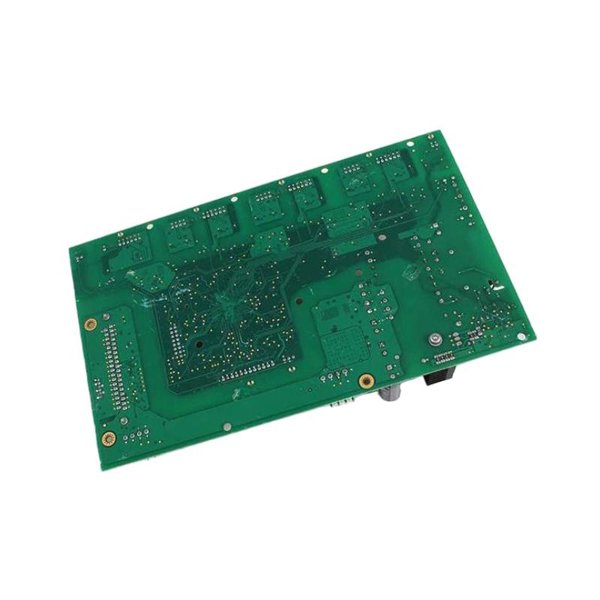

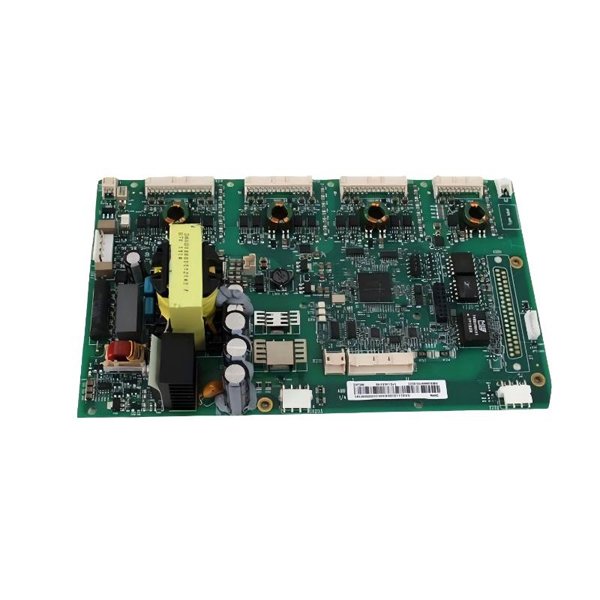

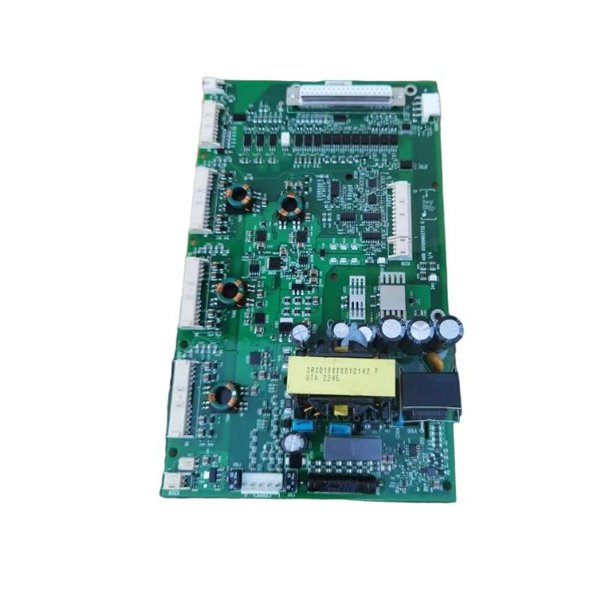

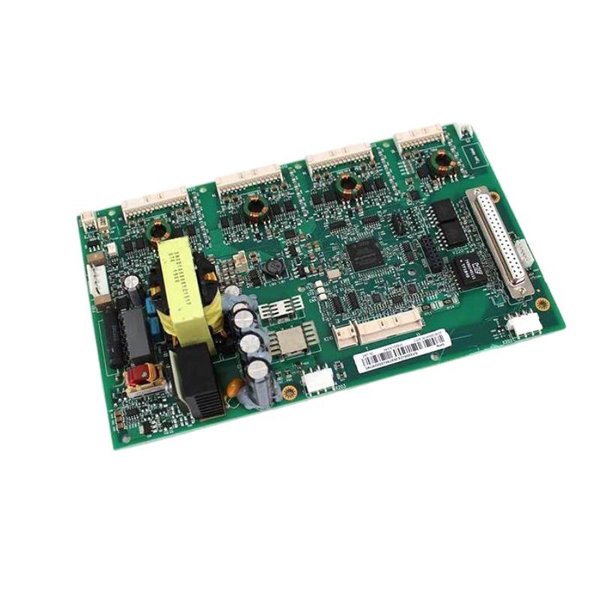

ABB ZINT-792+N8205 3AXD50000030405 MC Interface Board

The ABB ZINT‑792+N8205 MC Interface Board (order code 3AXD50000030405) is engineered as a high‑performance multichannel communication core for ABB automation platforms. It links programmable logic controllers, drives, HMIs, and third‑party field devices, guaranteeing deterministic data flow even in electrically noisy plant environments. Rigorously tested to IEC 61000‑6‑2/4 standards, it withstands voltage surges, ESD, and radiated RF without communication loss. A conformally coated PCB and industrial‑grade components extend mean‑time‑between‑failure well beyond 150 000 h. The board drops directly onto a 35 mm DIN rail, drawing minimal power from the 24 VDC control bus—ideal for retrofit projects where cabinet space and power budgets are tight.

Product Specifications

Applications

• Distributed Control Systems (DCS) – Integrates remote I/O islands with central process controllers over long RS‑485 trunks.

• Drive Chains – Provides deterministic command/feedback loops between ACS/ACS‑S drives and plant PLCs, enabling speed and torque coordination.

• Machine Tools – Bridges high‑speed CANopen motion networks with legacy Modbus diagnostics for spindle and axis modules.

• Energy Management – Aggregates data from smart meters and power analyzers, forwarding key KPIs to SCADA dashboards in real time.

• Building Automation – Acts as a protocol gateway between HVAC controllers, lighting panels, and security systems, reducing gateway counts.

• Lab & Test Rigs – Offers galvanic isolation and surge immunity critical for precision measurement devices in EMC‑heavy test cells.

Product Advantages

• Multi‑Protocol on One PCB – Handles Modbus, CANopen, and ABB DriveBus simultaneously; no extra gateway modules required.

• Robust Isolation – 2.5 kV isolation safeguards PLC CPU boards from field transients and ground loops.

• Field‑Upgradeable Firmware – DFU utility delivers bug fixes and feature upgrades without removing the board.

• Compact Footprint – 30 mm thickness leaves airflow channels free inside crowded cabinets.

• Low Power Draw – < 12 W typical, easing load on 24 VDC power supplies and UPS systems.

• Extended Life Design – Conformal coating plus 105 °C electrolytic capacitors push service life beyond 15 years in 45 °C ambient.

• Tool‑Free Installation – Spring‑lock DIN clip and pluggable terminals cut installation time by 40 %.

• Diagnostic LEDs – Per‑channel status LEDs simplify troubleshooting, reducing downtime.

• EMC‑Hardened – Meets Class A limits; passes 10 V/m radiated immunity—ideal for drives rooms.

• Global Compliance – CE, UKCA, cULus Recognition, RCM‑Australia certified for worldwide deployment.

FAQ

1. What cabling should I use for RS‑485 lines?

   Use 2‑conductor shielded twisted pair, 120 Ω characteristic impedance, AWG 22 – 24.

2. Is hot‑swap permitted?

   Yes, the board supports live insertion on powered 24 VDC buses; communications resume within 3 s.

3. Can I mix CANopen and Modbus devices simultaneously?

   Absolutely—the MCU allocates independent buffers and time slices for each protocol stack.

4. How do I update firmware?

   Connect a PC via micro‑USB, launch ABB DFU‑Suite, select the *.bin file, and press “Flash”; typical load time < 90 s.

5. Does the board log diagnostics?

   Yes, a 64‑entry circular fault log is accessible through the Modbus holding register range 0x3000–0x303F.

6. What is the idle power consumption?

   9 W at 24 VDC with all channels enabled but no traffic.

7. Are termination resistors integrated?

   Each RS‑485 segment has switchable 120 Ω termination accessible on the terminal header.

8. What enclosure rating is required?

   Mount inside a minimum IP20 enclosure; no forced cooling needed below 50 °C ambient.

9. How many nodes can one board manage?

   Up to 64 Modbus slaves and 127 CANopen devices concurrently.

10. Is a conformity certificate available?

    CE Declaration of Conformity is downloadable from the ABB product page; hard copy ships with each unit.
