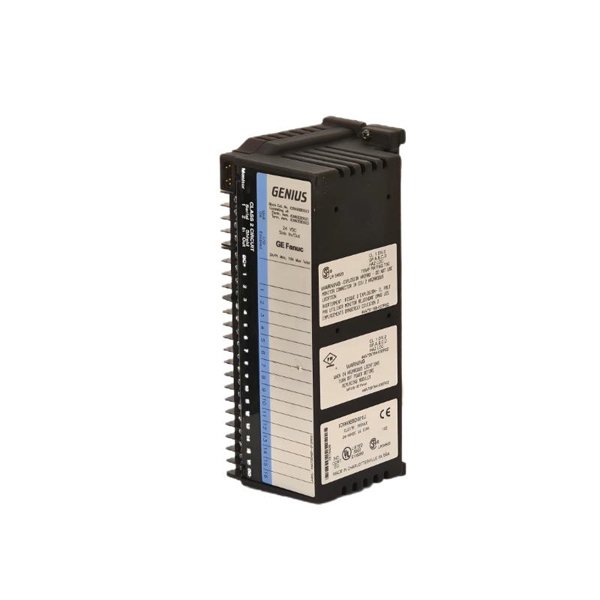

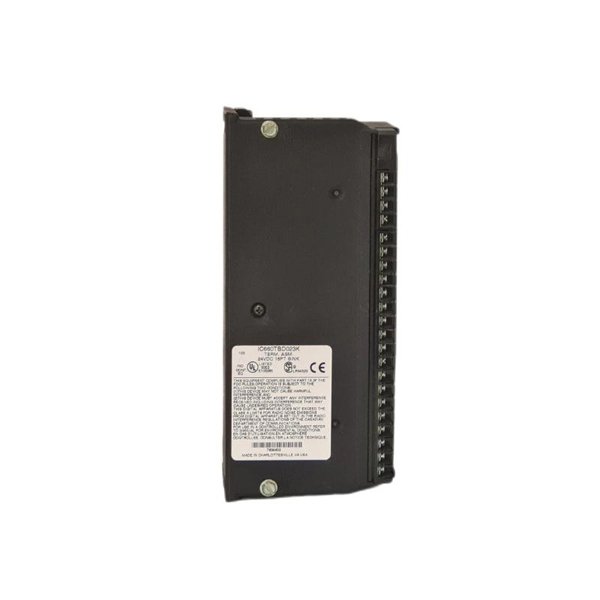

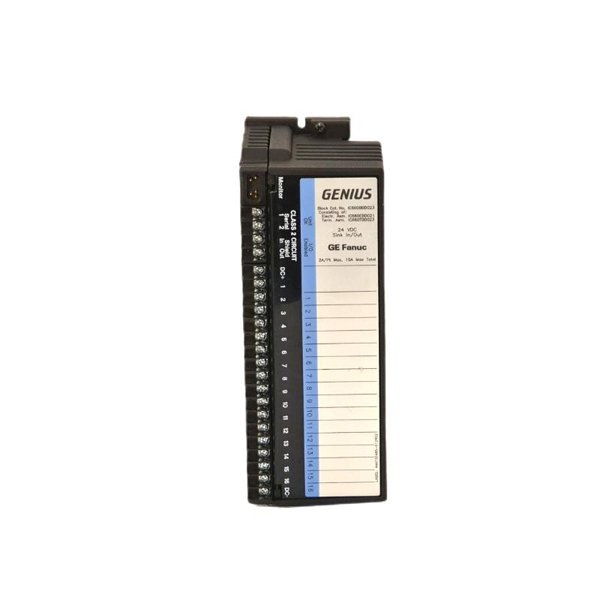

General Electric IC660TBD023 Terminal Assemblies

The GE IC660TBD023 Terminal Assembly is a robust and reliable component designed for use in industrial automation systems. Part of the GE Fanuc Series, this terminal assembly ensures effective integration and connectivity for various control systems. Known for its durability and ease of use, the IC660TBD023 helps streamline wiring, reducing potential errors in complex automation systems. With its modular design, it supports quick, simple maintenance and ensures long-lasting performance in demanding environments.

This product is typically used in various control panels, industrial automation equipment, and field instrumentation systems. It allows for secure connections, facilitating efficient signal transmission between different components within the system. This terminal assembly is engineered to meet high standards of reliability and functionality in mission-critical industrial applications.

Product Parameters

The GE IC660TBD023 Terminal Assembly is built with high-quality materials and precision engineering, offering excellent performance in even the most challenging environments. Below are the key specifications for this terminal assembly:

Product Applications

The GE IC660TBD023 Terminal Assembly is designed for a wide range of applications in industrial and automation environments. Key applications include:

• Control Panels: Used for wiring and connecting different modules in control panels and automation systems.

• Field Instrumentation: Integrates field devices to ensure proper signal transmission between field sensors and control systems.

• Industrial Equipment: Facilitates secure and stable connections in machinery and equipment in manufacturing plants, oil refineries, and power stations.

• PLC Systems: Supports easy and effective wiring of PLCs (Programmable Logic Controllers), reducing installation time and effort.

• Power Distribution Systems: Enables efficient power distribution with a high rating for electrical load.

Product Advantages

The GE IC660TBD023 Terminal Assembly offers several significant advantages that make it an ideal choice for industrial automation systems:

1. Ease of Use: The screw-type terminal design allows for quick and simple wiring, reducing installation time and minimizing errors.

2. Durability: Made from high-quality thermoplastic materials, this terminal assembly ensures long-term reliability even in harsh industrial environments.

3. Compact Design: Its compact size allows for easy integration into control panels and other equipment, saving space.

4. Flexible Connections: Supports multiple wiring configurations, making it versatile for a wide range of industrial applications.

5. High Current and Voltage Rating: With its 10A current rating and support for both AC and DC systems, it can be used for more powerful systems.

6. Wide Temperature Range: The terminal assembly operates efficiently in extreme temperatures, from -20°C to 60°C, making it suitable for both indoor and outdoor use.

7. Safety: The terminal assembly is designed with dust protection (IP20), ensuring safe operation in various industrial environments.

Frequently Asked Questions (FAQs)

1. What is the purpose of the GE IC660TBD023 Terminal Assembly?

   • The terminal assembly is designed to provide reliable and secure connections for wiring in control panels and industrial systems.

2. What is the current rating of this terminal assembly?

   • The terminal assembly is rated for a maximum current of 10A.

3. Can this terminal assembly be used in outdoor environments?

   • Yes, the terminal assembly has an IP20 rating, which provides dust protection, making it suitable for outdoor use in many industrial applications.

4. What materials is the GE IC660TBD023 made of?

   • The terminal assembly is constructed from high-quality thermoplastic, which ensures durability and reliability.

5. What is the voltage rating of this terminal assembly?

   • It is rated for 250V AC and 30V DC, making it versatile for a wide range of industrial systems.

6. What is the temperature range for this terminal assembly?

   • The terminal assembly can operate in temperatures ranging from -20°C to 60°C.

7. How is the terminal assembly wired?

   • The terminal assembly uses screw-type terminals for easy and secure wiring connections.

8. Is this terminal assembly compatible with PLC systems?

   • Yes, it is designed to integrate seamlessly with PLC systems, making it ideal for industrial automation.

9. Can I use this terminal assembly in power distribution systems?

   • Yes, the terminal assembly is rated for high current and voltage, making it suitable for power distribution applications.

10. What are the dimensions of the GE IC660TBD023 Terminal Assembly?

    • The dimensions of the terminal assembly are 150 x 145 x 60 mm.
