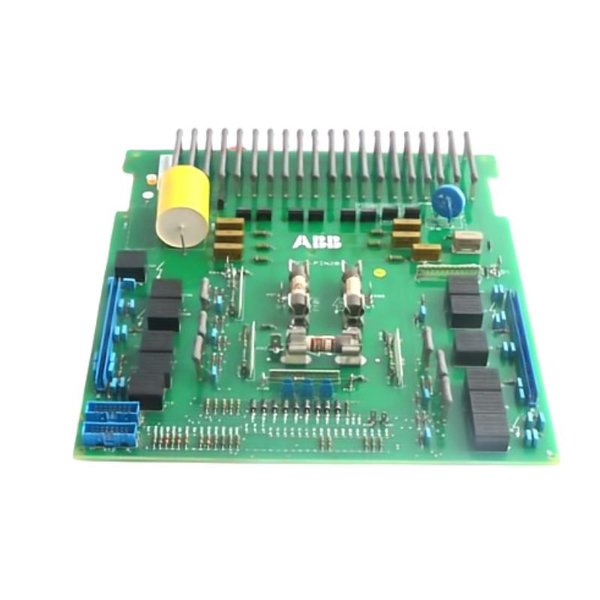

ABB SDCS-PIN-205B-COAT 3ADT220090R0035 Power Circuit Board

The ABB SDCS-PIN-205B-COAT (Part No: 3ADT220090R0035) is a coated version of the renowned SDCS-PIN-205B power circuit board, used primarily in ABB’s DCS500 and DCS600 DC drive systems. This coated variant includes an additional protective conformal coating, providing improved resistance to moisture, dust, corrosive chemicals, and conductive contaminants—making it ideal for use in demanding or humid industrial environments.

This power interface board serves as the electrical interface between the control system and the power electronics of the drive. It facilitates the reliable transfer of analog and digital signals, integrates diagnostic features, and ensures proper communication across all key modules in the DC drive system. With its rugged build and enhanced protection, the SDCS-PIN-205B-COAT is widely used in harsh and mission-critical applications in industries such as mining, steel, pulp and paper, and heavy process automation.

Technical Specifications

Applications

The ABB SDCS-PIN-205B-COAT is designed for challenging industrial environments where standard boards may degrade over time. Typical application areas include:

• Steel Mills & Rolling Lines – Offers improved corrosion resistance in dusty and high-temperature zones.

• Pulp & Paper Manufacturing – Ensures high availability in areas with high humidity and chemical vapors.

• Chemical Processing Plants – Suitable for control cabinets near corrosive or chemically active areas.

• Mining & Quarry Equipment – Withstands extreme vibration and particulate conditions.

• Marine Systems – Used in marine drives due to its moisture-resistant coating.

• Heavy-Duty Automation Panels – Ensures reliable interfacing in large-scale, high-load DC drives.

Product Advantages

• Enhanced Protection with Coating – Prevents corrosion, oxidation, and dust ingress, ideal for harsh environments.

• Seamless Compatibility – Fully compatible with ABB DCS500 and DCS600 drives.

• Reliable Signal Interface – Manages analog and digital signals with high integrity and low interference.

• Integrated Diagnostic LEDs – Provides immediate visual feedback for operational and error states.

• Reduced Downtime – Durable design minimizes the risk of premature failure in extreme applications.

• Fast Field Replacement – Plug-in architecture allows quick installation and service without special tools.

Frequently Asked Questions (FAQ)

1. What does the “COAT” version of SDCS-PIN-205B provide over the standard version?

   The COAT version includes a conformal protective coating to improve resistance to moisture, chemicals, and dust.

2. Can SDCS-PIN-205B-COAT be used as a direct replacement for SDCS-PIN-205B?

   Yes, it’s electrically and functionally identical, with added environmental protection.

3. Is this board suitable for outdoor or unsealed enclosures?

   No, it should still be used within sealed electrical cabinets; the coating enhances protection but doesn’t eliminate the need for enclosure.

4. What kind of maintenance does this board require?

   Routine cabinet inspection and ventilation checks; the board itself requires minimal upkeep.

5. How do I identify a fault using this board?

   Fault conditions are shown via diagnostic LEDs located on the PCB edge.

6. Is ESD protection required during installation?

   Yes. Always use standard anti-static precautions when handling and installing.

7. Can this board be used in a multi-motor control configuration?

   Yes, when properly configured within a coordinated drive system.

8. What is the expected operational life of this board in a high-humidity environment?

   Over 10 years, assuming cabinet integrity and ventilation are maintained.

9. How do I differentiate this board from other SDCS-PIN models?

   Look for “COAT” in the part label or conformal coating visible on the board’s surface.

10. Does the coating impact electrical performance or heat dissipation?

    No, the coating is designed to be non-conductive and thermally stable under operating conditions.
