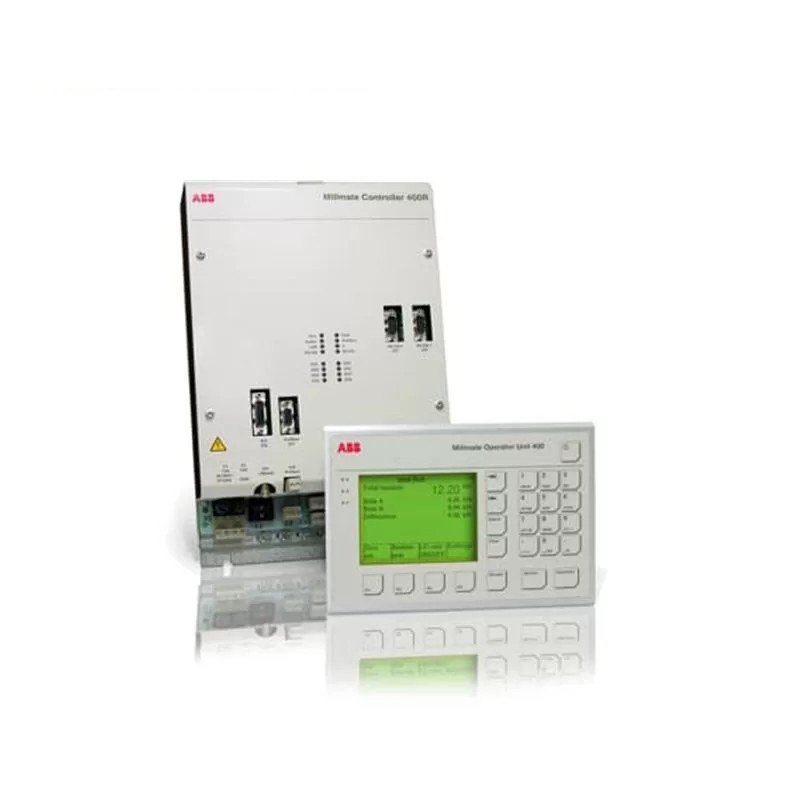

ABB PFCA401 Millmate Controller 400 offers advanced functionalities with high user-friendliness. It is designed specifically for metal rolling mills to enhance production processes.

Technical Specifications

• True Strip Position and Width Calculation: Calculates strip position and width relative to the mill.
• Filter Times: Adjustable from 10 ms.
• Configurable Inputs/Outputs: Analog and digital inputs/outputs are easily configurable.
• Digital Detectors: Includes digital edge position level detectors and digital min/max width level detectors.
• Unit Selection: Choose between mm or inch units.
• Self-Diagnostic System: Performs continuous edge sensor tests and includes a self-diagnostic test system.
• Simulation Mode: Allows easy checking of system integration.

Control Functions

• Temperature, Pressure, Flow Control: Manages various process parameters.
• Measurement: Provides precise measurements of process parameters.
• Automation: Automates critical process steps.
• Communication: Supports multiple communication protocols.
• Display: Features a clear display for monitoring and control.

Dimensions and Weight

• Dimensions: 380 x 235 x 90 mm (H x W x D).
• Weight: 5 kg.

Protection and Power

• Protection Class: IP 20.
• Mains Voltage: 85 – 264 V.
• Power Consumption: 140 VA.
