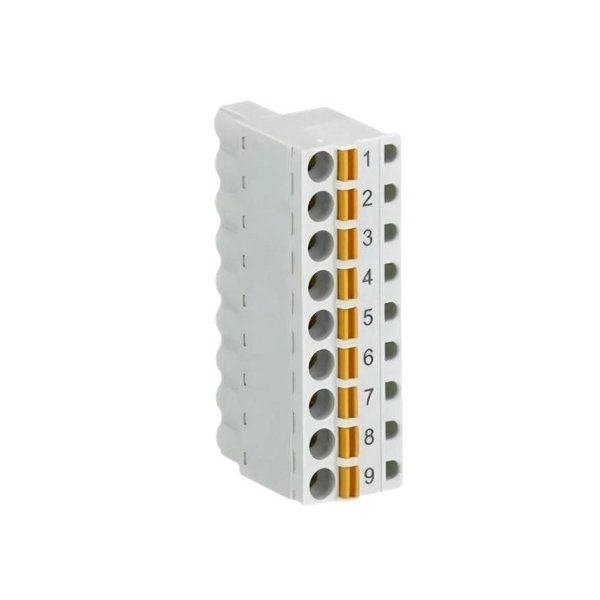

ABB TA565-9 1TNE968901R3105 Terminal Block

The ABB TA565-9 1TNE968901R3105 Terminal Block is a high-quality electrical connection component designed for reliable and secure wiring in industrial and commercial electrical systems. Manufactured by ABB, a globally recognized leader in electrical engineering, this terminal block ensures robust performance under various operating conditions. It is engineered to facilitate safe and efficient connection of wires, supporting both signal and power distribution tasks.

With its durable construction and precision engineering, the TA565-9 terminal block is an ideal choice for applications requiring stable electrical connections, minimizing the risk of loose contacts and electrical faults.

Product Specifications

Product Applications

The ABB TA565-9 terminal block is widely used across various industries and electrical systems, including:

• Industrial control panels: Ensuring reliable wiring connections in factory automation.

• Power distribution systems: Facilitating secure electrical connections for power lines.

• Building electrical installations: Used in junction boxes and switchboards.

• Renewable energy systems: Suitable for photovoltaic panel wiring and inverter connections.

• Transportation systems: Applied in rail and automotive electrical assemblies.

• Machinery and equipment manufacturing: Ensuring consistent electrical contact within machines.

Its versatility and safety features make it essential for complex wiring requirements and maintenance operations.

Product Advantages

• Robust Design: The terminal block is constructed with durable insulating materials and corrosion-resistant contacts, ensuring longevity and safety.

• Reliable Electrical Connection: The screw clamp design guarantees strong mechanical and electrical contact, reducing contact resistance.

• Ease of Installation: Designed for quick and secure DIN rail mounting, which simplifies assembly and maintenance.

• Wide Operating Temperature Range: Suitable for harsh environments with temperatures from -40°C up to +105°C.

• Compliance and Certification: Meets international electrical safety and quality standards, offering peace of mind for users.

• Compact Size: Saves space in control panels and electrical enclosures without compromising performance.

• Flexible Usage: Compatible with various wire sizes and types, adaptable to multiple wiring scenarios.

• Enhanced Safety: Incorporates features that reduce accidental disconnections and improve operator safety.

Frequently Asked Questions (FAQ)

1. What types of wires are compatible with the TA565-9 terminal block?

   It supports both solid and stranded copper wires within the recommended wire gauge, typically from 0.5 mm² to 6 mm².

2. Can this terminal block be mounted on any DIN rail?

   Yes, it is designed to fit standard 35 mm DIN rails for easy installation.

3. Is the terminal block suitable for outdoor use?

   While it is robust and temperature-resistant, it should be installed within appropriate protective enclosures for outdoor environments.

4. How tight should the screws be during installation?

   Tighten screws to the torque specified by ABB (usually around 0.5–0.6 Nm) to ensure secure contact without damaging the terminal.

5. Does this terminal block support high current applications?

   It is rated up to 24 A; for higher currents, a different model with higher ratings is recommended.

6. Are there color coding options available for this terminal block?

   ABB offers several terminal block colors for easy circuit identification, but the TA565-9 is typically available in a neutral color.

7. What maintenance is required?

   Regular inspection for loose screws and corrosion is recommended, especially in high-vibration or humid environments.

8. Is it possible to use this terminal block in hazardous areas?

   This terminal block is not intrinsically rated for hazardous locations unless specified otherwise by ABB certifications.

9. Can multiple wires be connected in the same terminal?

   Generally, only one wire per terminal is recommended unless the terminal is explicitly rated for multiple conductors.

10. How does the TA565-9 compare to other terminal blocks in the ABB range?

    The TA565-9 is a versatile, general-purpose terminal block ideal for medium current and voltage applications, balancing size and performance.
