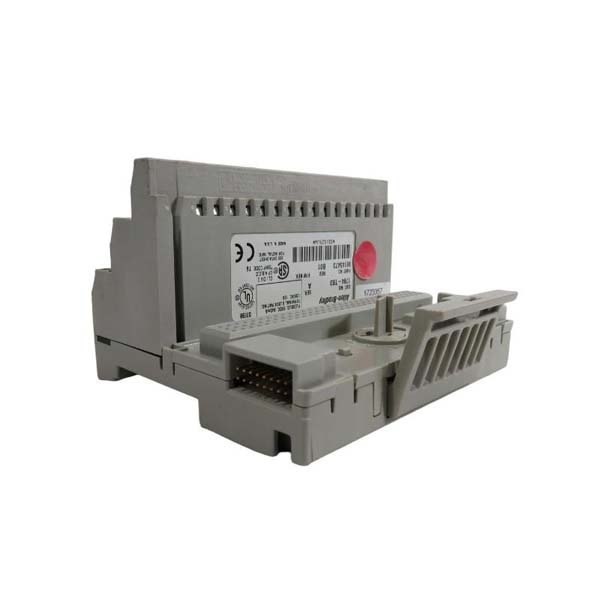

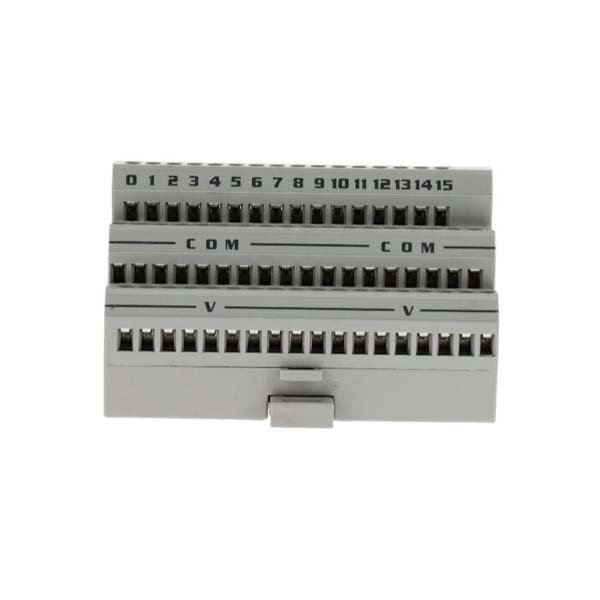

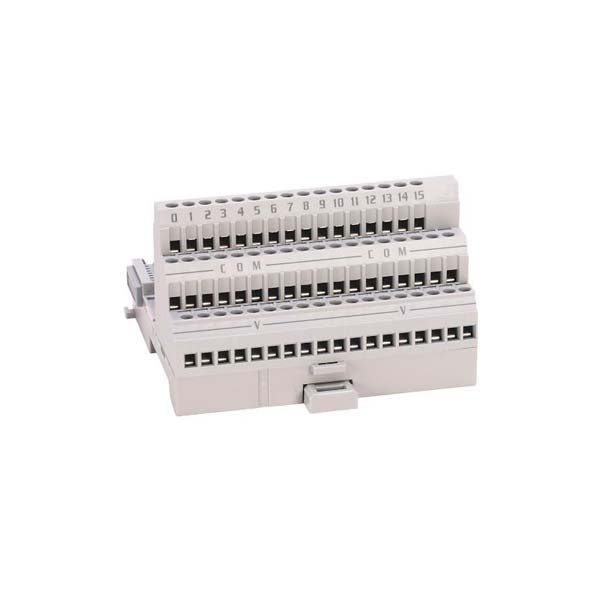

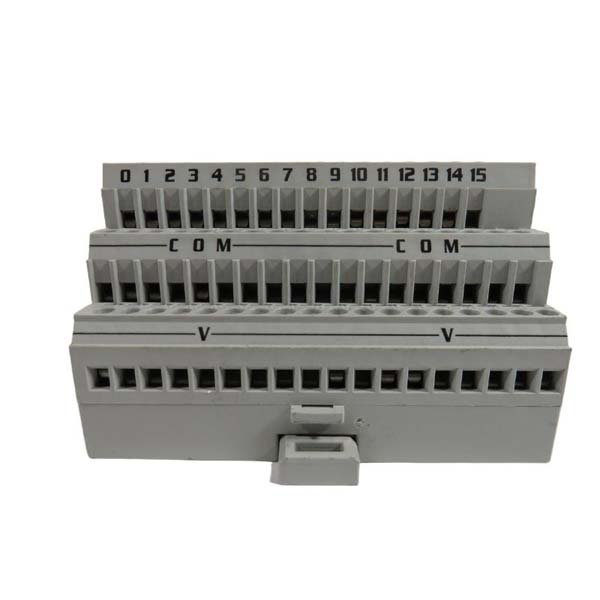

Allen-Bradley 1794-TB3 Terminal Base Unit

The Allen-Bradley 1794-TB3 is a Terminal Base Unit within the FLEX I/O system, serving as the essential mechanical and electrical interface between FLEX I/O modules and the field wiring connections. It provides a reliable, modular connection point for digital or analog I/O modules, simplifying installation, wiring, and maintenance in both centralized and distributed control applications.

Engineers value the 1794-TB3 for its tool-free modular assembly, secure wiring interface, and high vibration resistance, making it a cornerstone component in many industrial automation and process control systems.

Technical Specifications

Field Applications

The 1794-TB3 is a foundational part of any FLEX I/O system, used across industries where modular and scalable I/O design is required. Common applications include:

• Process Automation Systems – connects analog modules for process variables such as flow, temperature, or level.

• Machine Control – links digital modules to sensors, solenoids, and actuators.

• Distributed I/O Networks – supports remote I/O in EtherNet/IP, ControlNet, or DeviceNet topologies.

• Batch and Packaging Systems – allows quick module replacement with minimal downtime.

• Material Handling Equipment – simplifies distributed control wiring for conveyors or sortation systems.

Why Engineers Prefer the 1794-TB3

• Universal Compatibility: Works with a broad range of FLEX I/O modules, offering unmatched flexibility.

• Effortless Installation: DIN-rail mountable and supports tool-free assembly with interlocking bases.

• Simplified Maintenance: Modules can be hot-swapped without disconnecting field wiring.

• Reliable Connections: Screw clamp terminals ensure vibration-resistant, long-lasting wiring integrity.

• System Efficiency: Reduces wiring complexity and saves panel space for distributed I/O configurations.

• Built-In Keying: Prevents incorrect module installation and ensures wiring accuracy.

FAQs

1. What is the purpose of the 1794-TB3 base?

   It provides both the electrical and mechanical connection between FLEX I/O modules and field wiring.

2. Can the 1794-TB3 be used with all FLEX I/O modules?

   Yes, it is compatible with all 1794 analog, digital, and specialty modules.

3. What type of wiring connection does it use?

   It uses screw clamp terminals to secure solid or stranded wires.

4. Is it hot-swappable?

   Yes, I/O modules can be replaced without removing the terminal base or disconnecting wiring.

5. Does it include integrated diagnostics?

   No, diagnostics depend on the connected I/O module.

6. Can the TB3 be used in hazardous locations?

   Yes, it’s certified for Class I, Division 2 and ATEX Zone 2 applications.

7. What is the terminal screw torque specification?

   0.6 N·m (5 lb·in) typical for secure wiring connections.

8. How does the keying system work?

   The base and module are keyed to prevent mismatched installation.

9. Is it compatible with EtherNet/IP networks directly?

   No, communication is provided through adapters such as the 1794-AENT.

10. Can it support redundant connections?

    Redundancy is determined by the adapter module (e.g., 1794-AENTR for dual ports).
