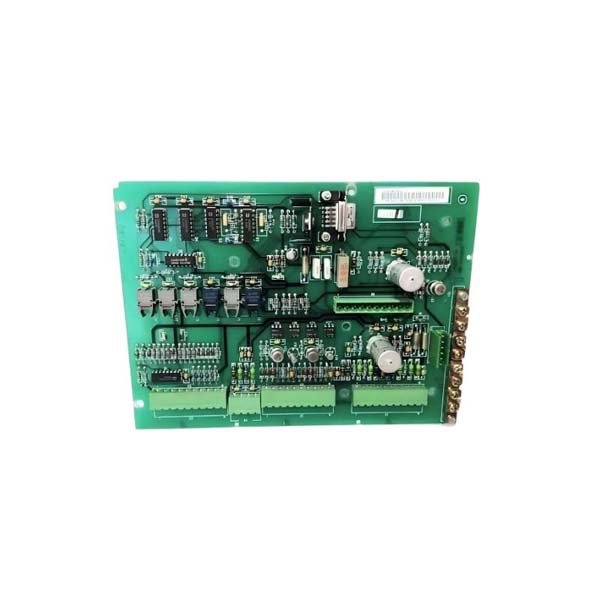

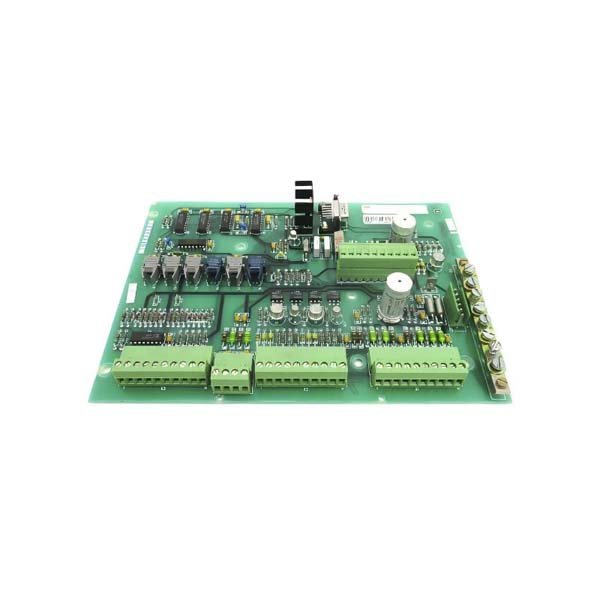

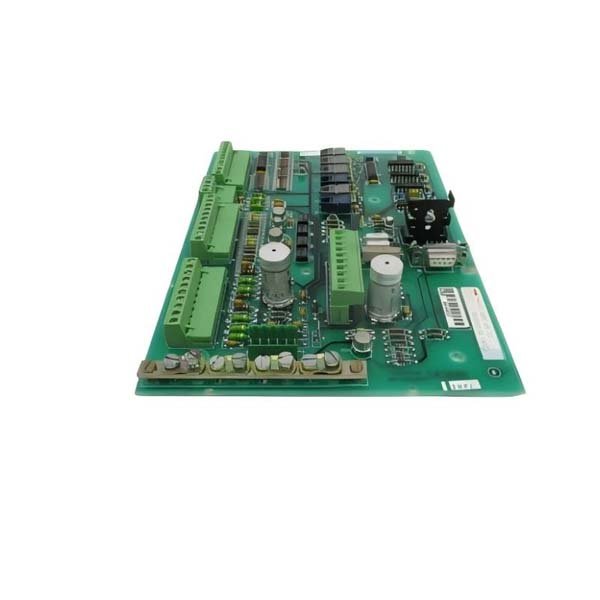

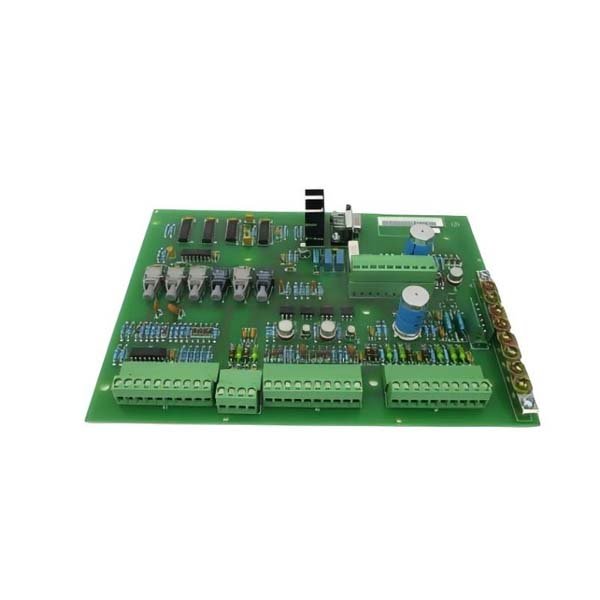

ABB SAFT189TSI Power Supply Interface Module

The ABB SAFT189TSI Power Supply Interface Module is a precision-engineered component developed for ABB’s Symphony Plus and Advant DCS systems, functioning as a power and signal integration interface. This module manages both the distribution and conditioning of electrical signals between control processors and field devices, ensuring high reliability and isolation integrity across process automation systems.

Engineered for high-density control environments, the SAFT189TSI features superior EMC protection, redundant operation capabilities, and diagnostic LED indicators that simplify system monitoring and maintenance. It is ideally suited for industries that demand operational continuity — such as power generation, petrochemical refining, pulp and paper, and marine automation.

Technical Specifications

Application Scenarios

• Power Generation Systems — Supplies isolated and stable power to local I/O nodes.

• Oil & Gas Automation — Protects communication lines and instrumentation from surges.

• Chemical Processing Plants — Manages critical process signals with isolation and stability.

• Pulp and Paper Mills — Ensures uninterrupted control for distributed field equipment.

• Marine and Offshore Platforms — Designed to resist vibration and moisture exposure.

• Water Treatment Facilities — Provides reliable interfacing for control and measurement devices.

Operational Advantages

• Dual Voltage Regulation: Simultaneously supports both 24 VDC and 5 VDC supply lines.

• High Isolation Integrity: 1500 VDC isolation safeguards control and field devices.

• Industrial-Grade Robustness: Built for continuous operation in demanding conditions.

• Enhanced Diagnostic Visibility: LED indicators simplify real-time fault tracing.

• Low Power Loss Design: Reduces operational heat and improves energy efficiency.

• Compact Mounting Design: Saves control cabinet space while improving cable routing.

• Flexible System Integration: Fully compatible with ABB’s Symphony Plus and Advant systems.

• Superior EMC Compliance: Immune to industrial noise and electromagnetic interference.

• Maintenance-Friendly Architecture: Modular layout supports quick replacement.

• Certified for Global Standards: CE and UL approval ensure universal compliance.

FAQs

1. Q: What is the main function of the SAFT189TSI module?

   A: It serves as a power supply and signal interface within ABB DCS systems.

2. Q: What voltage does it operate on?

   A: It uses a nominal 24 VDC input with regulated 5 VDC and 24 VDC outputs.

3. Q: Does the module include electrical isolation?

   A: Yes, it provides 1500 VDC isolation between the system bus and field I/O.

4. Q: How many channels are supported?

   A: There are 8 configurable input/output interface channels.

5. Q: What kind of protection circuits are built-in?

   A: Overcurrent, surge, and reverse polarity protections are standard.

6. Q: Can this module work in redundant power configurations?

   A: Yes, it supports redundant and parallel operation for critical systems.

7. Q: What is the standard operating temperature range?

   A: From 0°C to +55°C under industrial conditions.

8. Q: Is this module compatible with non-ABB controllers?

   A: It is optimized for ABB DCS, but may work with other systems via interface adaptation.

9. Q: How heavy is the unit?

   A: Approximately 0.72 kg (1.59 lb).

10. Q: How is the SAFT189TSI installed?

    A: It can be mounted on a DIN-rail or within a DCS cabinet rack.
