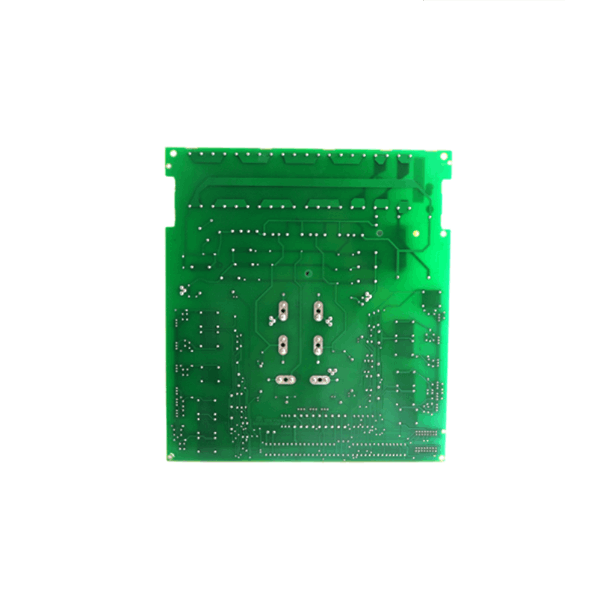

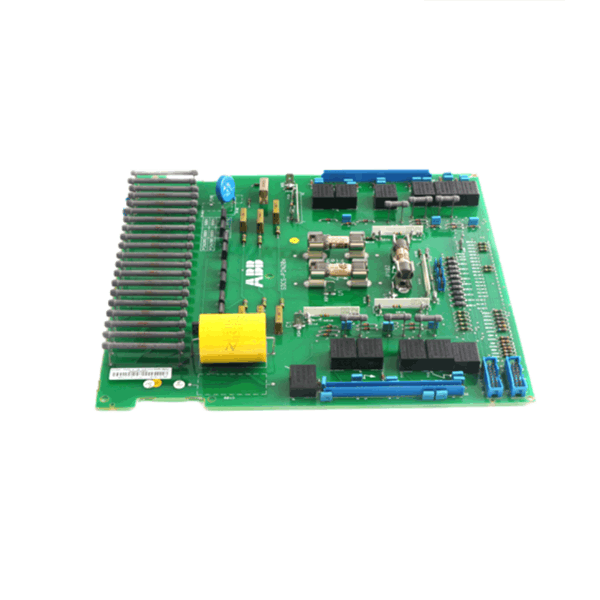

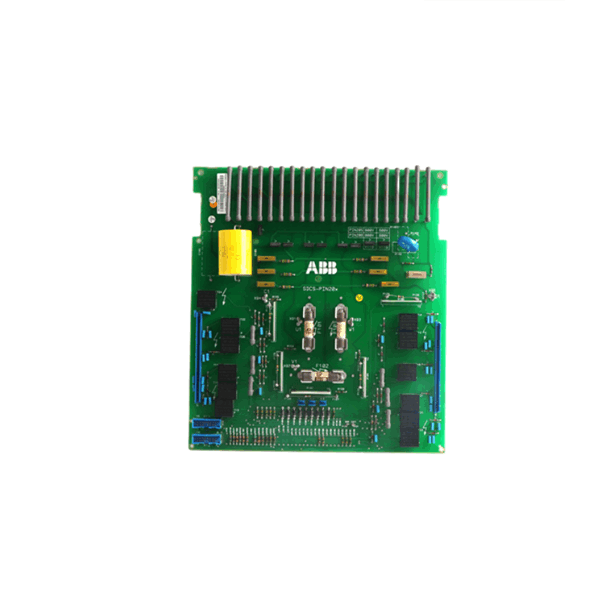

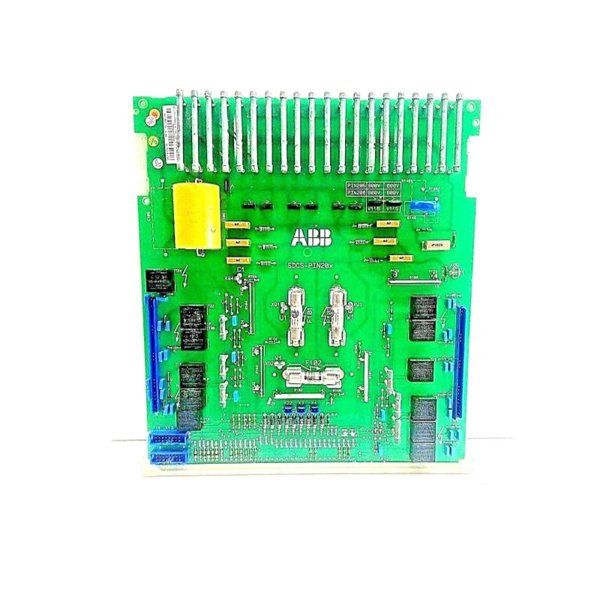

ABB SDCS-PIN-205 3ADT310500R1 Plc Module

Due to its modular design, this board simplifies both system integration and future expansion. The SDCS-PIN-205 is widely recognized for its reliability, plug-and-play installation, and high compatibility with ABB’s industrial automation platforms.

Technical Specifications

Product Advantages

1. High Compatibility: Fully compatible with ABB DCS 500 and DCS 600 series drive systems, enabling direct replacement or integration.

2. Stable Pulse Transmission: Offers accurate pulse signal interfacing with low interference and high noise immunity.

3. Compact and Lightweight: With a slim form factor and light weight, it reduces the load and footprint in control cabinets.

4. Ease of Installation: Designed for easy plug-and-play replacement with guided terminal layouts.

5. Industrial-Grade Reliability: Withstands industrial environments thanks to its rugged design and robust temperature range.

6. Reduced Downtime: Proven ABB quality ensures long service life and high MTBF, minimizing maintenance needs.

7. Universal Signal Support: Interfaces both analog and digital signals, increasing its flexibility in control architectures.

8. Service-Friendly Design: Clear labeling, diagnostic LEDs, and accessible terminals make maintenance efficient.

Product Applications

• Used in ABB DCS 500 and DCS 600 DC drive systems for interfacing control and power modules.

• Ideal for industrial automation systems that require precise pulse signal processing.

• Commonly found in:

  • Paper and pulp machinery

  • Steel and metal processing

  • Marine propulsion systems

  • Chemical and petrochemical plant automation

  • Mining conveyor control systems

  • Large motor control centers (MCCs)

Installation Instructions

1. Preparation: Power down the control system. Verify part number and version match your system requirements.

2. Mounting: Secure the SDCS-PIN-205 board to the DIN rail or chassis. Ensure the board is properly grounded.

3. Wiring: Connect all signal and power cables according to the drive manual. Use shielded cables for pulse signal lines.

4. Verification: After connection, inspect for any loose terminals or reversed polarity.

5. Power-Up and Test: Re-energize the system, then perform a drive diagnostic or test run to confirm the interface board is functioning.

6. Final Checks: Use system diagnostic tools to ensure that pulse signals are being properly received and transmitted.

FAQ

Q1: What does the SDCS-PIN-205 board primarily do?

A1: It interfaces pulse signals between the drive control unit and external systems, ensuring accurate timing and communication.

Q2: Can this board be used in systems other than ABB DCS drives?

A2: It is designed specifically for ABB’s DCS 500/600 systems, and use in other systems is not recommended unless verified by ABB.

Q3: What happens if this board fails?

A3: Pulse signal communication will be interrupted, potentially halting drive functions. Replacement or repair is advised immediately.

Q4: Is this board hot-swappable?

A4: No. Power must be disconnected before installing or replacing the board.

Q5: How can I identify a malfunction?

A5: Indicators such as drive alarms, irregular pulse reception, or diagnostic LED errors may signal board issues.

Q6: Can the SDCS-PIN-205 be upgraded with firmware?

A6: No, this is a hardware interface board with no upgradeable firmware.

Q7: What are the signs of board wear or damage?

A7: Burn marks, degraded connectors, or intermittent signal transmission suggest board failure.

Q8: Are there special tools required for installation?

A8: Standard tools such as screwdrivers and crimpers are sufficient. Follow ESD safety procedures.

Q9: How often should the board be inspected?

A9: Periodic visual inspections every 6-12 months are recommended in harsh environments.

Q10: Can I replace this board myself?

A10: Yes, if you are a trained technician or follow ABB’s installation manual. Otherwise, consult ABB service personnel.
