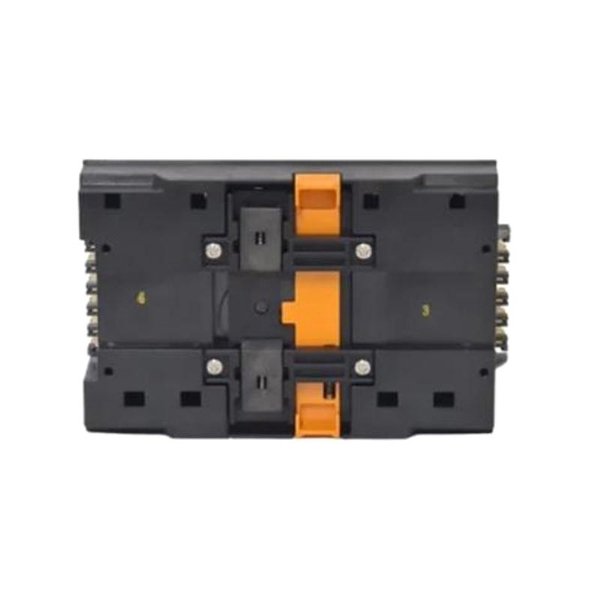

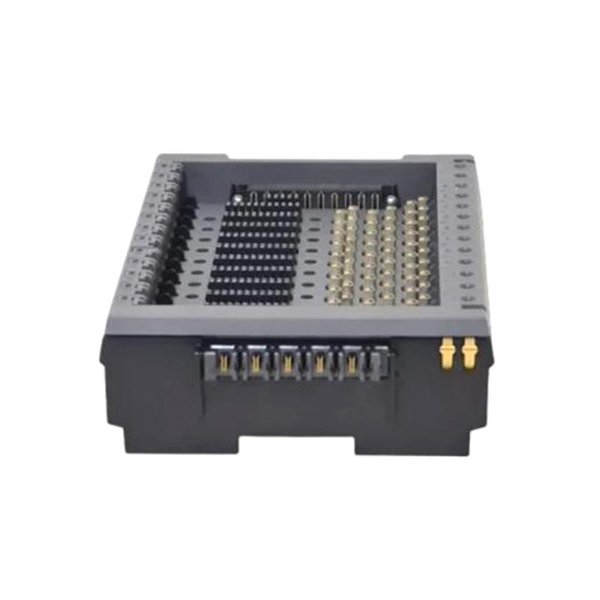

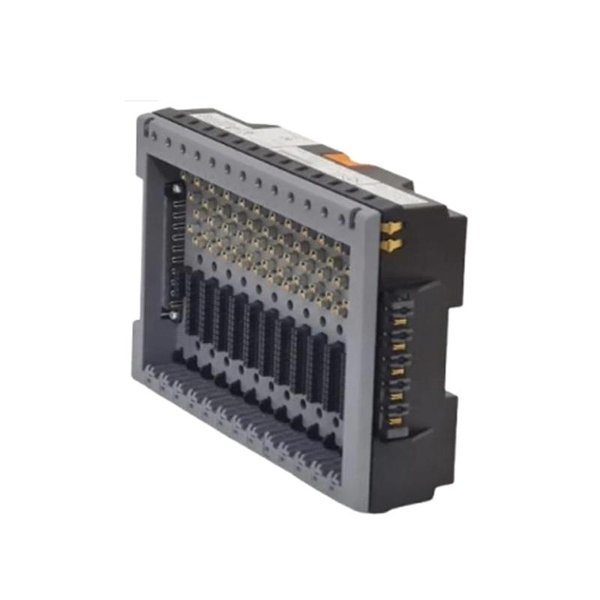

Emerson KL4201X1-BA1 CHARM Baseplate

The Emerson KL4201X1-BA1 CHARM Baseplate is an integral component of the DeltaV™ Electronic Marshalling system, designed to streamline the integration of field devices into the DeltaV control system. This baseplate facilitates the connection of up to 12 CHARM (Characterization Module) I/O cards, enabling flexible and efficient field wiring without the need for traditional marshalling panels.

Product Specifications

The following table outlines the key specifications of the KL4201X1-BA1 CHARM Baseplate:

Product Applications

The KL4201X1-BA1 CHARM Baseplate is utilized across various industries for:

• Process Automation: Facilitating seamless integration of field instruments into the DeltaV control system, enhancing process efficiency.
• Hazardous Environments: Certified for use in Zone 2 hazardous areas, making it suitable for industries like oil and gas, chemical processing, and pharmaceuticals.
• Flexible I/O Management: Allowing for late-stage design changes and expansions without extensive re-wiring, thereby reducing project risks and costs.

Product Advantages

The KL4201X1-BA1 offers several benefits:

• Simplified Wiring: Eliminates the need for traditional marshalling, reducing wiring complexity and potential for errors.
• Scalability: Supports up to 12 CHARM I/O cards, providing flexibility to scale I/O as needed.
• Enhanced Safety: Designed for use in hazardous areas, ensuring reliable operation under challenging conditions.
• Cost Efficiency: Reduces installation and maintenance costs through streamlined design and easy integration.

FAQ

1. What is the primary function of the KL4201X1-BA1 CHARM Baseplate?

   • It serves as a mounting platform for CHARM I/O cards, facilitating the integration of field devices into the DeltaV control system.

2. How many CHARM I/O cards can the baseplate accommodate?

   • It can accommodate up to 12 CHARM I/O cards.

3. Is the KL4201X1-BA1 suitable for hazardous environments?

   • Yes, it is certified for use in Zone 2 hazardous areas.

4. What are the power requirements for the baseplate?

   • CHARM Bus Power: +6.3 VDC at 4 A; Field Circuit Power: +24 VDC at 10 A.

5. What is the operating temperature range?

   • The baseplate operates within a temperature range of -40 °C to +70 °C.

6. Does it support redundant configurations?

   • Yes, the DeltaV Electronic Marshalling system supports fully redundant architectures.

7. What are the dimensions and weight of the baseplate?

   • Dimensions: 200 x 120 x 60 mm; Weight: 0.499 kg.

8. Can the baseplate be used in field-mounted installations?

   • Yes, it is designed to be field-mounted, reducing system design and installation costs.

9. What type of field devices can be connected?

   • Various field instruments, including sensors and actuators, can be connected through appropriate CHARM modules.

10. Is the KL4201X1-BA1 compatible with all CHARM I/O modules?

    • Yes, it is designed to support a wide range of CHARM I/O modules, ensuring flexible configuration and seamless integration with DeltaV systems.
