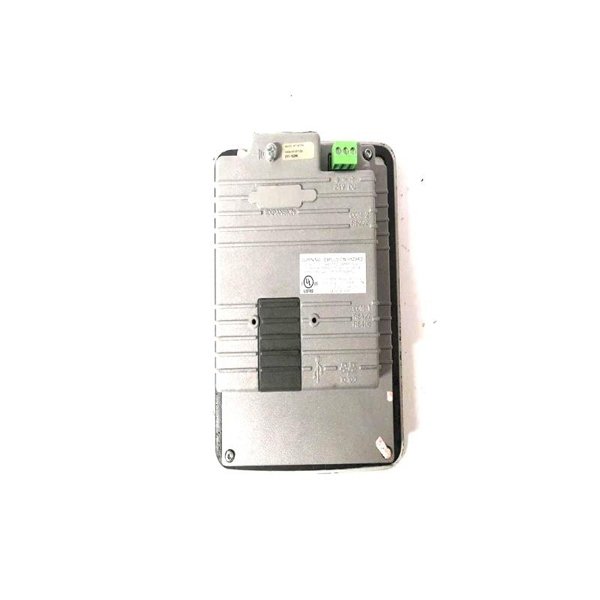

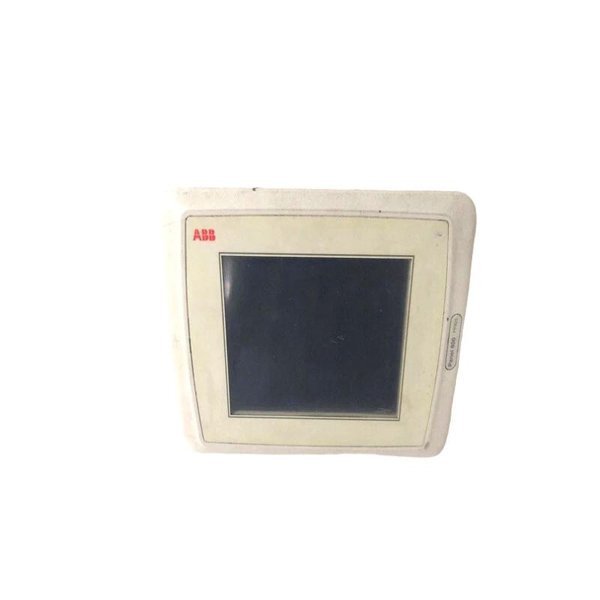

ABB PP825 3BSE042240R1 Panel 800 Operator Panel

Name: ABB PP825 3BSE042240R1 Panel 800 Operator Panel
Brand: ABB
Availability: InStock

Manufacturer:ABB

Product Number:PP825 3BSE042240R1

Product Type:Operator Panel

Origin:Sweden (SE)

Front panel:202 x 152 x 6 mm

Weight:0.9 kg

Views:40

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The ABB PP825 3BSE042240R1 is a robust operator panel from the Panel 800 series designed for efficient human-machine interaction. With object-oriented operation and a user-friendly interface, it enables monitoring, control, alarms, and recipe handling for various industrial automation systems.

Technical Specifications

Parameter	Specification
Model	PP825
Display	5.7″ STN-LCD, 320×240 pixels, 64K colors
Touchscreen Type	Polyester on glass, 1 million touch operations
Active Display Area (WxH)	115.2 x 86.4 mm
Flash Memory	12 MB
Real-Time Clock	±20 PPM accuracy, max 1 min/month at 25 °C
Power Supply	+24V DC (20 – 30V DC)
Power Consumption	0.25 A (typical), 0.45 A (max)
USB Port	Host Type A (USB 1.1), 500 mA max
Ethernet	Shielded RJ45
Serial Ports	RS232 (9-pin), RS422/RS485 (25-pin)
Front Panel Dimensions	202 x 152 x 6 mm
Mounting Depth	57 mm (157 mm with clearance)
Weight	0.9 kg
Protection (Front/Rear)	IP66 / IP20
Ambient Temp (Vertical)	0°C to +50°C
Storage Temperature	-20°C to +70°C
Relative Humidity	5 – 85% non-condensed
Certifications	CE, UL, cUL, DNV

Applications

Human-Machine Interface (HMI) for industrial automation
Process control in manufacturing plants
PLC, servo, or drive communication interface
Monitoring and controlling operational data in real-time
Use in hazardous (Class I, Div 2) and standard environments

Advantages

Compact and rugged aluminum casing with IP66 front protection
Intuitive object-oriented design simplifies user interaction
Supports multiple communication protocols (Ethernet, RS232, RS485)
Built-in USB host port and 12 MB application memory
Long-lasting display (CCFL backlight >75,000 h at 25 °C)
Supports wide temperature and humidity conditions
Certified for harsh industrial use

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the PP825 panel?

A1: It serves as a human-machine interface (HMI) for controlling and monitoring industrial processes.

Q2: What kind of display does it use?

A2: It features a 5.7″ color STN-LCD with 320×240 resolution and CCFL backlight.

Q3: Is the panel suitable for hazardous areas?

A3: Yes, it’s certified for Class I, Division 2 hazardous locations.

Q4: How much internal memory is available for applications?

A4: The PP825 offers 12 MB of flash memory including fonts.

Q5: What interfaces are supported for communication?

A5: It supports RS232, RS422/RS485, and Ethernet (RJ45).

Q6: What is the panel’s protection rating?

A6: IP66 on the front panel and IP20 on the rear.

Q7: Can it be installed in a cabinet with other high-voltage devices?

A7: Yes, with proper grounding and cable separation as per guidelines.

Q8: What are the power requirements?

A8: +24V DC with current draw of 0.25 A typical and 0.45 A maximum.

Q9: Is the touch screen durable?

A9: Yes, it supports up to 1 million finger touch operations.

Q10: What software is used for configuration?

A10: The Panel Builder 800 configuration tool is used for setup.
