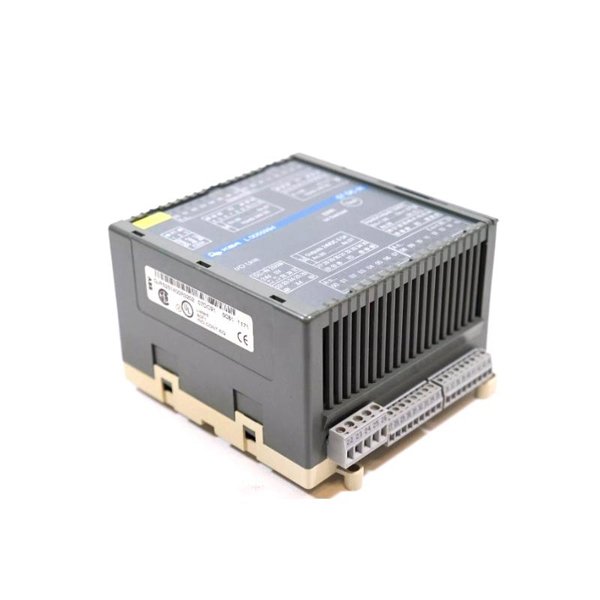

ABB 07DC91 GJR5251400R3202 Digital I/O Module

The ABB 07DC91 GJR5251400R3202 is a state-of-the-art Digital I/O Module designed for industrial automation systems. This module plays a crucial role in managing input and output signals between controllers and various field devices like sensors, switches, and actuators. It’s built with high reliability, offering fast response times and robust data processing, ensuring smooth integration within control systems.

The 07DC91 module is part of ABB’s extensive range of digital I/O solutions, designed for use in demanding environments such as power plants, manufacturing, and other industrial settings. With its high-quality construction and precision, this I/O module meets the highest standards in terms of performance, reliability, and flexibility, making it an essential component for any advanced automation system.

Product Specifications

Applications

The 07DC91 Digital I/O Module is ideal for a variety of industrial applications, including:

• Industrial Automation Systems: Facilitates the integration of various field devices with controllers for automation in factories, production lines, and process control environments.
• Process Control: Used to monitor and control digital signals from field devices, making it a key element in maintaining system stability and performance.
• Building Automation: Supports the management of inputs and outputs for systems such as HVAC, lighting control, and security systems.
• Energy Management: Essential for controlling inputs and outputs in energy monitoring and control applications, providing real-time data transmission to the central system.
• Remote Monitoring: The module supports various communication protocols like Modbus RTU, enabling remote monitoring and management of the system from a central location.

Advantages

• High Reliability: The module is designed for continuous, reliable operation in industrial environments, with a high tolerance for harsh conditions.
• Flexible Integration: Supports multiple communication protocols (e.g., Modbus RTU, CANopen), ensuring compatibility with different industrial controllers and devices.
• Easy Installation: It features a user-friendly DIN rail mounting design that simplifies installation and maintenance in existing automation systems.
• Compact Design: The module’s small form factor allows it to fit into space-constrained areas, making it ideal for tight panel installations.
• Wide Operating Range: With a broad operating temperature range from -20°C to +60°C, it is suitable for a variety of environments, from extreme heat to cold.
• Robust Performance: Designed to handle up to 1A per output channel, it can efficiently control multiple field devices without compromising on performance.
• Energy Efficient: With a low power consumption of only 1.5W, it ensures minimal impact on the overall energy efficiency of the automation system.

FAQ

1. What is the ABB 07DC91 GJR5251400R3202 Digital I/O Module?

   • The ABB 07DC91 is a digital input/output module designed for industrial automation systems, enabling seamless communication between controllers and field devices.

2. What is the maximum current output of the 07DC91 module?

   • The maximum current output per channel is 1A at 24V DC.

3. What is the operating temperature range for the 07DC91 module?

   • The operating temperature range is from -20°C to +60°C.

4. What communication protocols are supported by the 07DC91?

   • The module supports Modbus RTU and CANopen communication protocols.

5. How is the ABB 07DC91 mounted?

   • It uses a DIN rail mounting system, which makes it easy to install in standard industrial control panels.

6. Can the 07DC91 module be used in hazardous environments?

   • The module is rated IP20, which provides basic protection from dust and contact with parts, but it is not suitable for use in highly hazardous environments without additional protection.

7. What is the weight of the ABB 07DC91 module?

   • The weight of the module is 1.07 kg.

8. .What devices can be connected to the digital I/O module?

   • The module can connect to a wide range of field devices such as sensors, actuators, switches, and indicators, typically used in process and automation control systems.

9. Is the 07DC91 compatible with other ABB automation products?

   • Yes, it is compatible with other ABB automation systems and devices, ensuring seamless integration into existing setups.

10. How does the 07DC91 contribute to energy efficiency in industrial systems?

    • With low power consumption (1.5W), it contributes to the overall energy efficiency of the automation system while maintaining high-performance standards.
