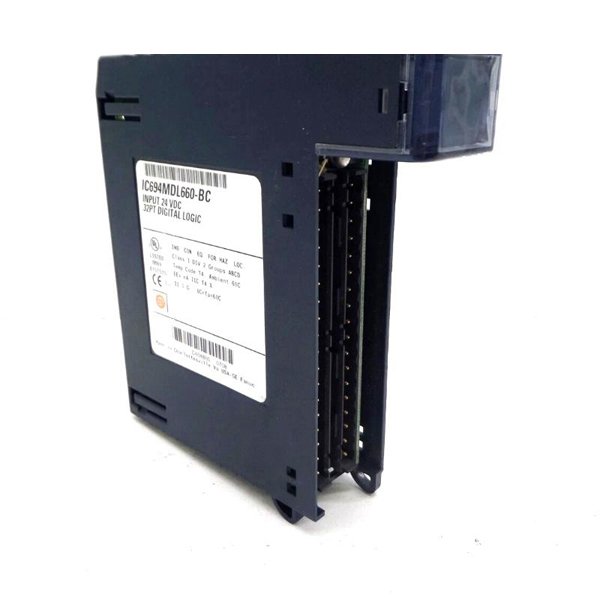

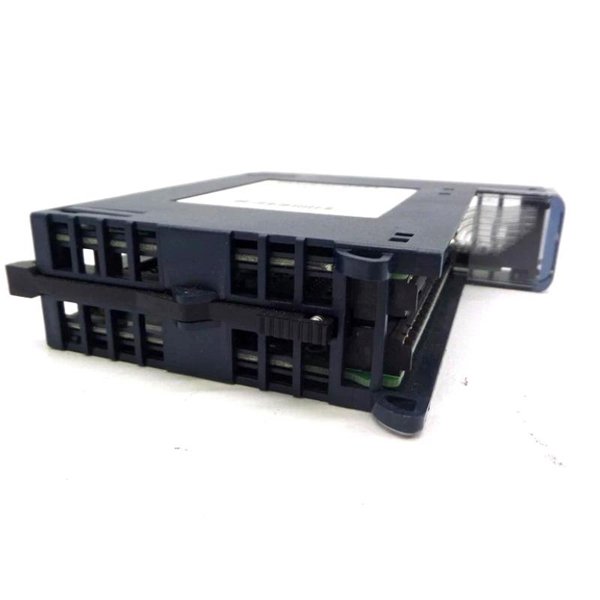

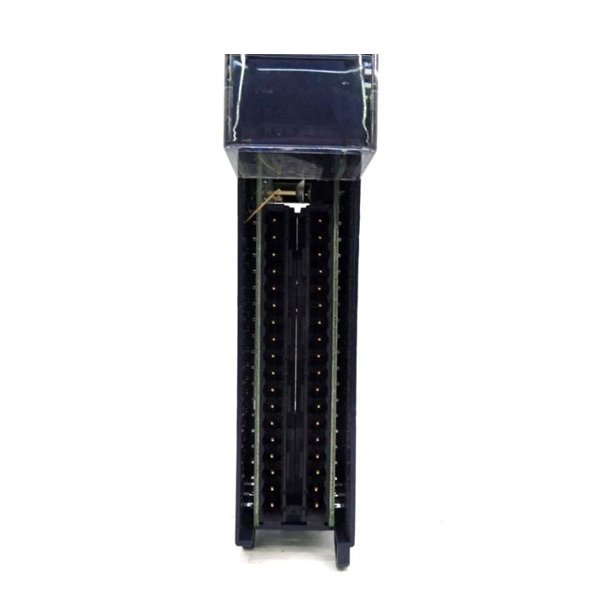

General Electric IC694MDL660-BC RX3i Input Module

The GE IC694MDL660-BC is a high-performance digital input module designed for use with GE Fanuc’s RX3i and RX7i PACSystems programmable automation controllers. This module is part of the VersaMax I/O series, known for its reliability and flexibility in industrial automation applications. It provides 16 discrete DC input channels, supporting a wide range of industrial control and monitoring tasks.

The module is engineered for harsh industrial environments, offering robust electrical isolation and noise immunity. It is widely used in manufacturing, energy, transportation, and other industries where precise and reliable digital signal acquisition is critical.

Product Parameters

Product Applications

The GE IC694MDL660-BC is widely used in industrial automation systems for:

• Machine Control – Monitoring switches, sensors, and relays in automated machinery.

• Process Automation – Digital signal acquisition in chemical, oil & gas, and water treatment plants.

• Material Handling – Conveyor belt control, limit switch detection, and safety interlocking.

• Energy Management – Power distribution monitoring and load management.

• Transportation Systems – Railway signaling and traffic control applications.

• Discrete Manufacturing – Assembly line automation and quality control systems.

Product Advantages

1. High Reliability – Designed for industrial environments with strong noise immunity and isolation.

2. Fast Response Time – ≤ 1 ms switching speed ensures real-time control accuracy.

3. Compact & Durable – Compact dimensions and rugged construction for space-constrained installations.

4. Wide Voltage Compatibility – Supports both sinking and sourcing input configurations.

5. Easy Integration – Compatible with GE’s PACSystems RX3i/RX7i and VersaMax I/O platforms.

6. Certified Safety Standards – Meets UL, CE, and RoHS compliance for global deployment.

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range for the IC694MDL660-BC?

A1: It operates at 24V DC, supporting both sink and source input configurations.

Q2: How many input channels does this module have?

A2: It provides 16 discrete digital input channels.

Q3: Is this module compatible with RX3i and RX7i controllers?

A3: Yes, it is fully compatible with PACSystems RX3i and RX7i PLCs.

Q4: What is the response time of this module?

A4: The response time is ≤ 1 ms (ON to OFF transition).

Q5: Can it be used in high-noise industrial environments?

A5: Yes, it features 1500V AC isolation and strong noise immunity.

Q6: What are the mounting options?

A6: It can be mounted on a DIN rail or panel-mounted.

Q7: What is the operating temperature range?

A7: It operates between -20°C to 60°C (-4°F to 140°F).

Q8: Does it support hot swapping?

A8: No, this module does not support hot swapping.

Q9: Is the IC694MDL660-BC RoHS compliant?

A9: Yes, it is RoHS compliant.

Q10: What certifications does this module have?

A10: It is certified by CE, UL, and cUL for industrial use.
