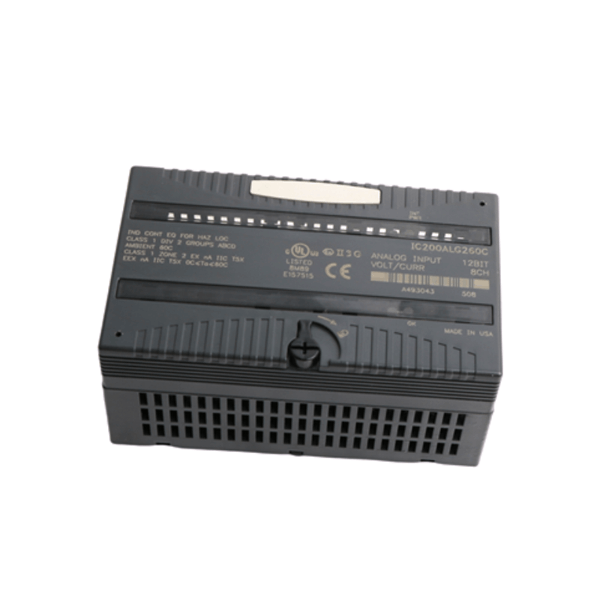

General Electric IC200ALG260 Analog Input Module

The GE IC200ALG260 is an Analog Input Module designed for use with the GE Fanuc Series 90-30 PLC system. This module is essential for applications that require the acquisition and processing of analog signals, allowing the PLC to interface with a wide variety of analog sensors such as pressure, flow, and temperature transducers.

The IC200ALG260 offers a 16-channel input configuration and supports differential inputs, providing high-precision measurements in industrial automation processes. It features high resolution and accuracy, enabling effective signal conditioning and conversion to digital format for PLC processing.

This module is engineered for versatile applications in industries such as manufacturing, chemical processing, oil and gas, and energy management, where analog signals need to be monitored, controlled, and processed.

Product Specifications

Product Applications

The GE IC200ALG260 Analog Input Module is designed to process analog signals and convert them into a digital format for further processing by the GE 90-30 PLC. Some common applications include:

1. Process Control: It can be used in chemical, oil, and gas industries to monitor various process variables such as pressure, temperature, and flow rates.

2. Manufacturing Automation: In manufacturing environments, it monitors variables like motor speed, temperature, and position for machine control.

3. Energy Management: The module can be used to monitor energy parameters such as voltage and current in power distribution systems.

4. HVAC Systems: It is employed for temperature, humidity, and air flow measurements in HVAC applications.

5. Environmental Monitoring: Suitable for monitoring environmental conditions, including pollution levels, temperature, and humidity.

6. Laboratory Automation: It is also used in laboratory environments to monitor experimental parameters that require precise analog measurements.

Product Advantages

1. High Channel Count: With 16 channels, the IC200ALG260 supports multiple sensor inputs simultaneously, ideal for large-scale automation systems.

2. Differential Input Capability: This feature allows for more accurate measurement and reduces the effect of noise, particularly in high-interference environments.

3. High Resolution and Accuracy: The 12-bit resolution (0 to 4095) provides fine granularity in measurements, and the accuracy of ±0.2% of full scale ensures reliable readings.

4. Built-in Signal Conditioning: The module integrates signal conditioning, reducing the need for external components and improving the overall reliability and ease of integration.

5. Compact Design: The small form factor (110 x 66.8 x 50 mm) ensures that it fits neatly into control panels and systems without taking up excessive space.

6. Easy Integration with GE 90-30 PLC: The IC200ALG260 is designed to seamlessly integrate with the GE 90-30 PLC system, offering simple setup and configuration.

7. Robust Protection: With an IP20 protection rating, the module is suitable for indoor environments where it is housed in control panels.

8. Wide Input Range: The module supports input voltages from -10V to +10V, allowing it to work with a variety of analog sensors.

9. Cost-Effective: The IC200ALG260 is a cost-effective solution for applications requiring multiple analog inputs, offering high performance at a competitive price point.

Frequently Asked Questions (FAQ)

1. What is the GE IC200ALG260 Analog Input Module used for?

   • It is used to convert analog input signals into digital data for processing by the GE 90-30 PLC system.

2. How many channels does the IC200ALG260 have?

   • The IC200ALG260 provides 16 channels of differential analog input.

3. What is the voltage input range for the IC200ALG260?

   • The voltage input range is from -10V to +10V.

4. What is the accuracy of the IC200ALG260?

   • The accuracy is ±0.2% of full scale.

5. What is the resolution of the IC200ALG260?

   • The resolution is 12-bit, offering 0 to 4095 distinct steps.

6. How does the IC200ALG260 reduce noise in the system?

   • The module uses differential inputs, which help reduce the effect of electrical noise, improving measurement accuracy.

7. What is the operating temperature range for the IC200ALG260?

   • The operating temperature range is from 0°C to 60°C.

8. What is the power supply requirement for the IC200ALG260?

   • The module requires a 5V DC power supply with a ±5% tolerance.

9. Can the IC200ALG260 be used in outdoor environments?

   • No, it is designed for indoor use with an IP20 protection rating.

10. How is the IC200ALG260 mounted?

    • The module is designed for snap-on mounting into a GE 90-30 PLC system.
