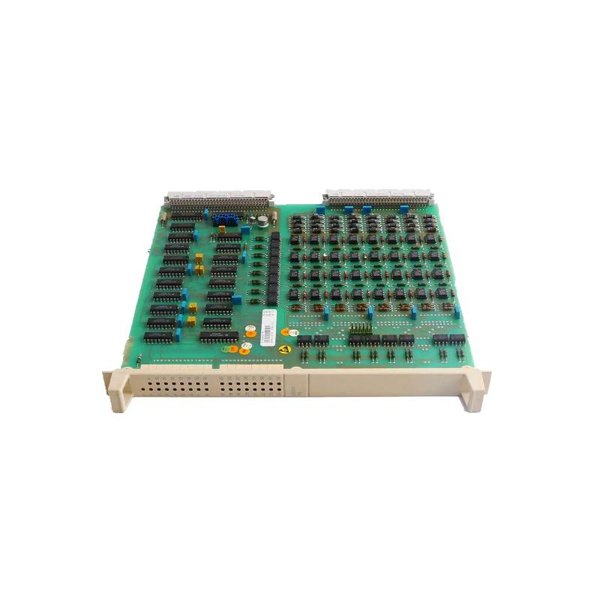

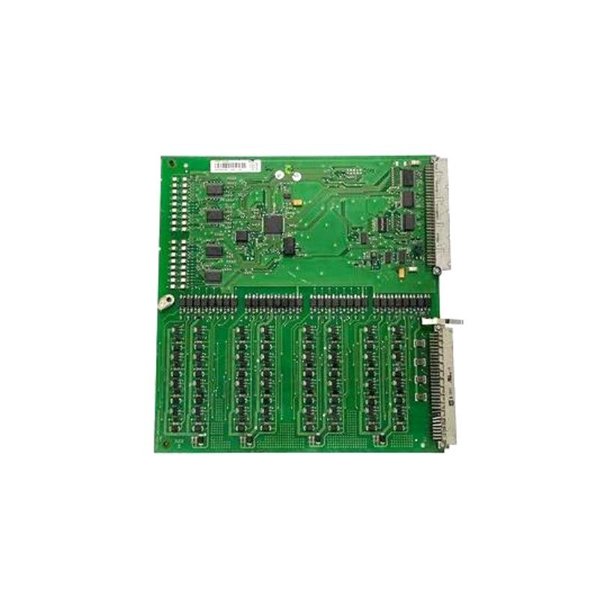

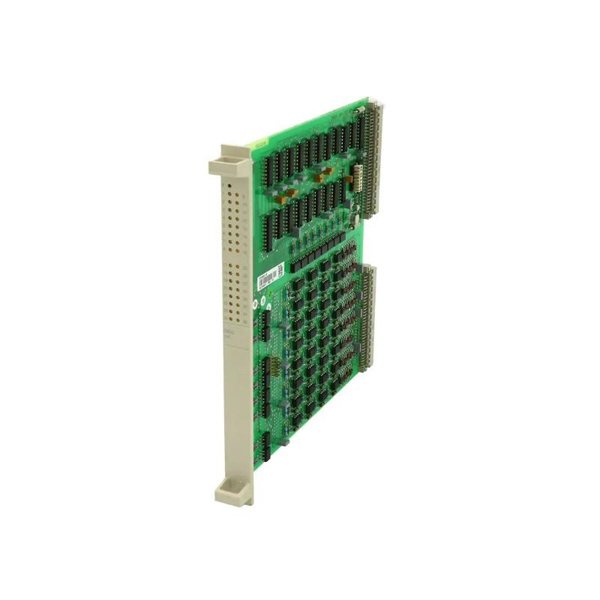

ABB DSDO 115A 3BSE018298R1 Digital Output Module

The ABB DSDO 115A 3BSE018298R1 is a highly reliable and efficient digital output module designed to provide stable and consistent performance in industrial automation systems. This module is part of ABB’s series of digital output modules that ensure accurate control and management of digital signals in critical applications. The DSDO 115A module offers 16 digital outputs and is particularly suitable for use in ABB’s control systems, offering easy integration and robust performance under challenging industrial environments.

The DSDO 115A is engineered for high-speed switching, ensuring that it can handle demanding automation processes. Its compact design, coupled with high output current handling capacity, makes it an ideal choice for industries requiring precise and reliable digital signal control.

Product Parameters

Applications

The ABB DSDO 115A module is ideal for use in a wide variety of industrial and automation applications, including:

• Manufacturing Process Control: It is highly effective for controlling digital outputs to machinery in manufacturing environments.

• HVAC Control Systems: The module provides precise digital outputs for managing HVAC systems, improving energy efficiency and control.

• Industrial Automation: It integrates seamlessly with control systems for process automation in industries such as chemicals, oil and gas, and pharmaceuticals.

• Building Management Systems: Used for controlling and automating building systems, including lighting and security.

• Power Plants: Essential in controlling digital output to actuators, relays, and other devices in power generation and distribution systems.

• Marine and Offshore Industries: A reliable choice for controlling outputs in marine and offshore applications, where durability and high performance are crucial.

Advantages

• High Durability: Built to withstand harsh conditions, the module operates across a wide temperature range and is resistant to environmental factors.

• Fast Response Time: The DSDO 115A features fast switching times, ensuring optimal performance for applications requiring rapid signal control.

• Compact Design: With a space-saving size, it is ideal for installations in confined spaces where other modules may not fit.

• Reliable Performance: The module delivers consistent and reliable output control, minimizing downtime and ensuring smooth operation of automation systems.

• Safety and Compliance: The module is CE, UL, and CSA certified, ensuring it meets industry standards for safety and quality.

• Energy Efficiency: It is designed with energy-saving features that help reduce operational costs without compromising performance.

FAQs

1. What is the maximum output current for the DSDO 115A module?

   The maximum output current per channel is 2 A.

2. How many output channels does the DSDO 115A module have?

   The DSDO 115A module has 16 digital output channels.

3. What is the temperature range for operating the DSDO 115A?

   The operating temperature range is from -20°C to +60°C.

4. Can the DSDO 115A module be used in hazardous environments?

   While the DSDO 115A is designed for industrial environments, its use in hazardous environments requires additional safety certifications.

5. What certifications does the DSDO 115A module have?

   The module is CE, UL, and CSA certified, ensuring it meets high safety and performance standards.

6. What is the weight of the DSDO 115A module?

   The DSDO 115A weighs 0.32 kg.

7. What type of output does the DSDO 115A module support?

   The module provides digital relay outputs.

8. Is the DSDO 115A compatible with other ABB automation systems?

   Yes, it integrates seamlessly with other ABB control systems and modules.

9. How is the DSDO 115A mounted?

   The module is designed for rail mounting, allowing for quick and secure installation.

10. What is the operating voltage for the DSDO 115A?

    The DSDO 115A operates at 24 V DC.
