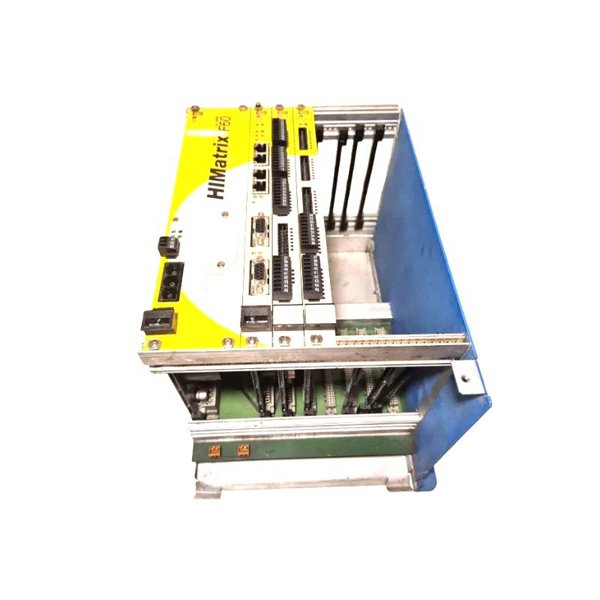

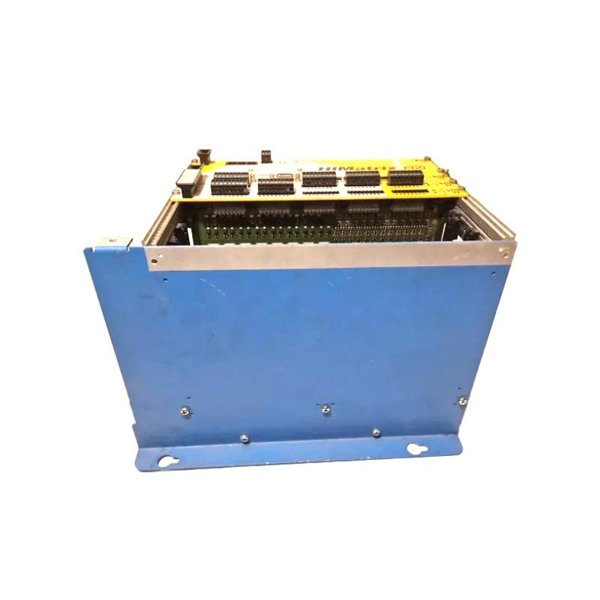

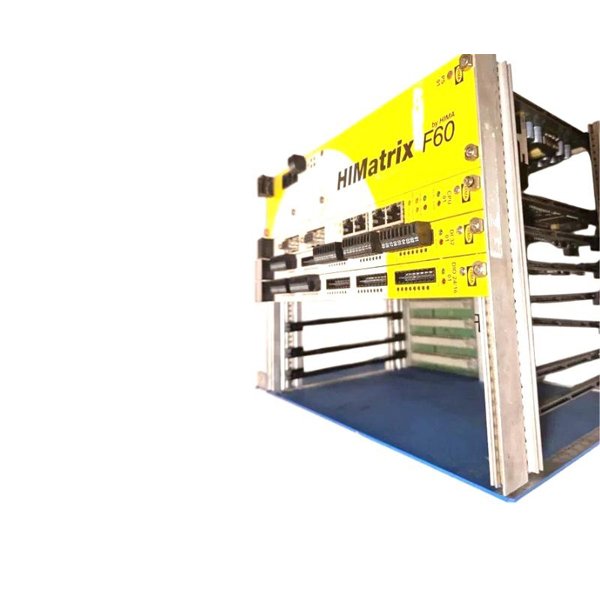

Hima HIMatrix F60 CPU 01 Processor Module

Name: Hima HIMatrix F60 CPU 01 Processor Module
Brand: Hima
Availability: InStock

Manufacturer:HIMA

Product Number:F60 CPU 01

Product Type:Processor Module

Origin:Germany

Dimensions:150 x 140 x 80 mm

Weight:0.28 kg

Views:109

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The HIMA HIMatrix F60 CPU 01 is the central processor module of the HIMatrix F60 safety-related controller system. Designed for demanding industrial automation applications, it ensures reliable execution of safety-critical functions up to SIL 3 (IEC 61508) and SIL 4 for railway (EN 50126). It features integrated Ethernet and fieldbus interfaces, hardware and software self-monitoring, and certified safety compliance for use in safety-critical environments.

Technical Specifications

Parameter	Specification
Operating voltage	24 VDC ±15%
Ethernet interfaces	4 × RJ-45, 10/100 Mbps
Fieldbus interfaces	2 × 9-pin D-sub (with submodules)
Operating temperature	0 to +60 °C
Storage temperature	-40 to +85 °C
User memory (latest OS)	Max. 1023 kB program, 1023 kB data
Response time	≥ 20 ms
Certifications	SIL 3, PL e, Cat. 4, ATEX Zone 2, SIL 4 (railway)
Dimensions	150 × 140 × 80 mm
Weight	0.28 kg

Applications

The F60 CPU 01 is suitable for:

Safety-critical process automation in chemical, oil & gas, and power industries
Railway signaling and interlocking systems
Emergency shutdown (ESD) systems
Fire & gas detection and suppression control
Machine safety control in manufacturing

Advantages

Why choose the HIMatrix F60 CPU 01:

Certified to the highest international safety standards
Compact and modular design
Integrated self-diagnostics and fault monitoring
Flexible communication via Ethernet and fieldbus
Easy configuration with SILworX or ELOP II Factory tools
Reliable operation in harsh environments

FAQ

Q1: What is the maximum safety level supported?

A1: SIL 3 (IEC 61508), SIL 4 (EN 50126 for railway), and PL e (EN ISO 13849-1).

Q2: Which programming tools are compatible?

A2: SILworX (CPU OS V7 and higher) and ELOP II Factory (CPU OS up to V6.x).

Q3: What is the default IP address of the CPU?

A3: 192.168.0.99.

Q4: How many Ethernet ports are available?

A4: Four RJ-45 Ethernet ports with integrated switch.

Q5: Can the module operate in Zone 2 hazardous areas?

A5: Yes, with appropriate installation in an IP54 enclosure as per ATEX requirements.

Q6: How is the CPU mounted?

A6: It is installed in slot 2 of the HIMatrix F60 subrack.

Q7: What is the response time of the CPU?

A7: ≥ 20 ms.

Q8: Does the module support hot swapping?

A8: No, modules must be inserted or removed only when powered off.

Q9: What is the operating temperature range?

A9: 0 to +60 °C.

Q10: How does the CPU indicate system faults?

A10: System faults are indicated by the red ERR LED on the front panel, and diagnostic details can also be accessed via the programming tool.
