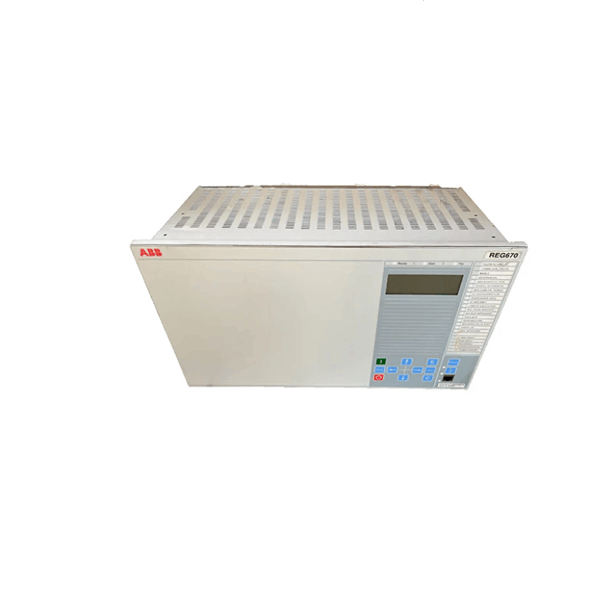

ABB REG670 1MRK002826-AA Generator protection relay

The ABB REG670 1MRK002826-AA is a versatile and advanced protective relay designed for power system protection and automation. It is an integral part of ABB’s Relion series, offering high performance and enhanced reliability. With its cutting-edge features and robust design, this relay ensures that electrical systems remain safe and secure against faults, contributing to the optimal operation of power grids and industrial installations.

Product Specifications

The ABB REG670 1MRK002826-AA is equipped with the latest technology to deliver accurate and reliable protection for a wide range of power applications. Below is a detailed table of its key specifications:

Product Applications

The ABB REG670 1MRK002826-AA is designed for use in a variety of applications across industrial and utility sectors. Its primary function is to provide protection for power systems, ensuring equipment reliability and safety. Below are some of its key applications:

• Power Distribution Systems: Protects electrical circuits from overcurrent, undercurrent, short circuits, and other faults.

• Industrial Plants: Ensures operational continuity and safety for critical equipment like transformers, generators, and motors.

• Renewable Energy Installations: Provides protection for solar farms, wind turbines, and other renewable energy sources.

• Substations and Power Grids: Integral to the protection and control of substation equipment and grid infrastructure.

• Automated Control Systems: Ideal for automated systems requiring continuous and reliable protection.

Advantages of ABB REG670 1MRK002826-AA

• Versatile Protection Functions: Supports a wide range of protection and control functions such as overcurrent, differential, distance protection, and more.

• High Accuracy: Offers precise fault detection and minimizes the risk of false tripping, improving system reliability.

• Advanced Communication Capabilities: Compatible with modern communication protocols, including IEC 61850 and Modbus, for easy integration into networked systems.

• Scalability: Can be tailored to fit different system sizes and configurations, making it suitable for various applications.

• Durability: Built to withstand harsh environmental conditions, ensuring long-term reliability in diverse settings.

• User-Friendly Interface: Equipped with an intuitive display and configurable settings, making it easy to set up and operate.

FAQ(Frequently Asked Questions)

1. What is the primary function of the ABB REG670 relay?

   • The ABB REG670 is designed to provide protection and control for electrical systems, ensuring safety against faults such as overcurrent, undercurrent, and short circuits.

2. What types of communication protocols does the ABB REG670 support?

   • It supports IEC 61850 and Modbus protocols for seamless communication with other devices and systems.

3. What is the temperature range for this product?

   • The operating temperature range is from -20°C to +70°C, allowing it to function in various environmental conditions.

4. How can I mount the ABB REG670 relay?

   • The relay can be mounted easily on a panel, thanks to its compact design and user-friendly mounting mechanism.

5. What is the power consumption of the ABB REG670 relay?

   • The ABB REG670 consumes 20 W of power during operation.

6. Can the ABB REG670 be used in renewable energy systems?

   • Yes, it is ideal for protecting renewable energy installations such as wind and solar power plants.

7. What is the protection class of the ABB REG670?

   • The relay has an IP54 protection class, ensuring it is resistant to dust and water, making it suitable for harsh environments.

8. What are the dimensions of the ABB REG670 relay?

   • The relay has dimensions of 192 x 144 x 214 mm.

9. What is the weight of the ABB REG670 relay?

   • The relay weighs 2.6 kg.

10. Can the ABB REG670 be used in industrial plants?

    • Yes, it is specifically designed for use in industrial plants to protect critical equipment such as motors, transformers, and generators.
