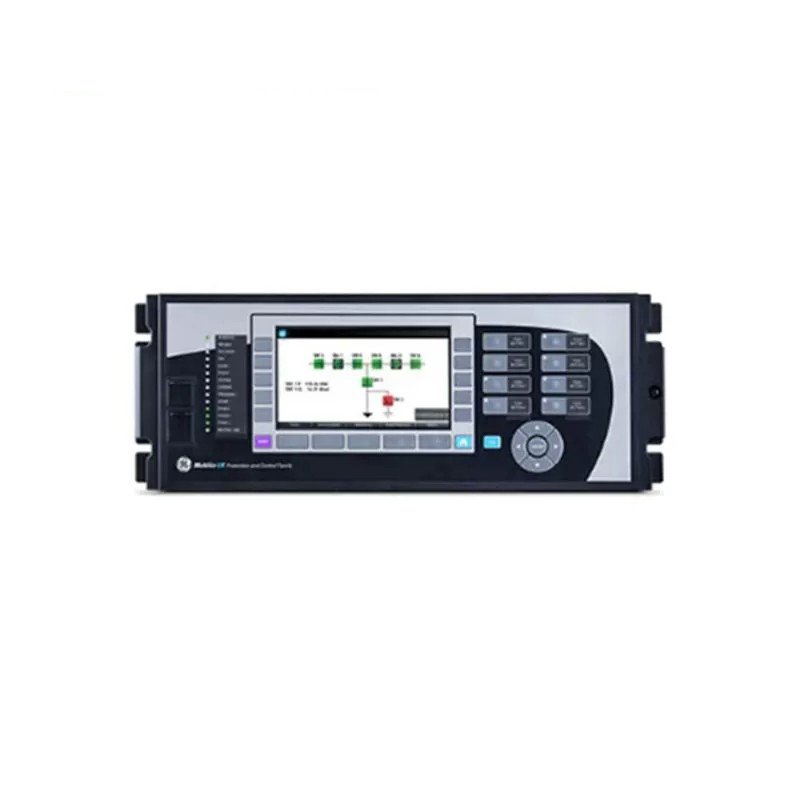

The GE T35A00HCHF8CH6UM8AP6CU8AW6C is a microprocessor-based protective relay designed for feeder and transformer applications. It delivers robust protection for feeders, transformers, and other substation equipment.

Key Features

• Overcurrent Protection: This relay offers primary and backup protection for transformers and feeders. It includes differential, phase, and ground overcurrent protection.
• Multiple Current Inputs: It uses multiple current inputs, allowing for flexible protection configurations.
• Application Flexibility: Configurable to accept up to 6 current inputs, the relay supports a wide range of applications.
• Communication Capabilities: The relay supports various communication protocols, including DNP3, Modbus RTU, and IEC 61850.
• Advanced Metering: It provides advanced metering capabilities, offering both real-time and historical data.

Technical Specifications

• Rated Voltage: 5 kV to 36 kV
• Rated Current: Up to 5,000 A
• Accuracy: Class 0.5 or better
• Operating Temperature: -40°C to +85°C
• Humidity: Up to 95% non-condensing

Applications

• Feeder Protection: Offers primary and backup protection for various types of feeders.
• Transformer Protection: Provides comprehensive protection for transformers, including differential, phase, and ground overcurrent protection.
• Substation Automation: Suitable for substation automation applications, delivering protection, control, and monitoring.
