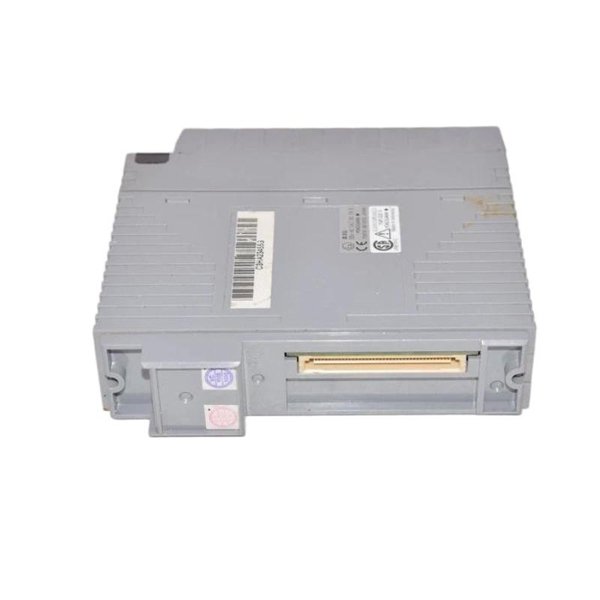

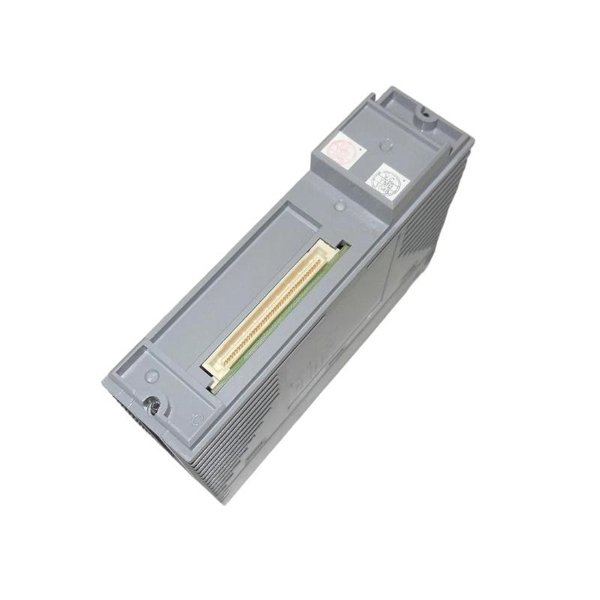

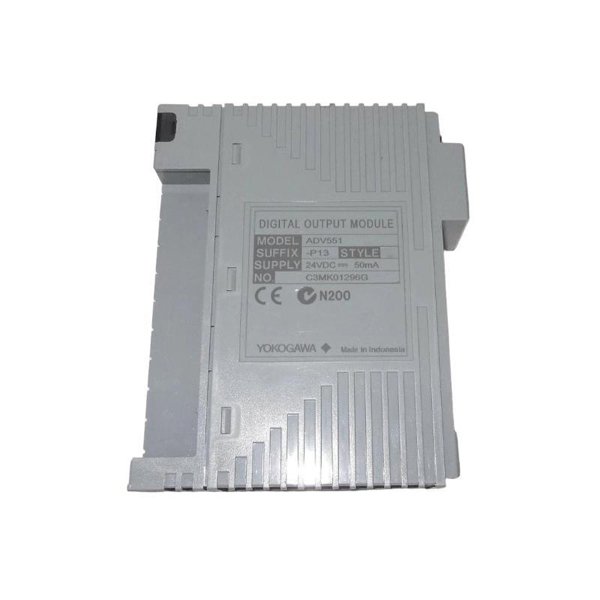

Yokogawa ADV551-P13 Digital Output Modules
Manufacturer:Yokogawa
Product Number:ADV551-P13
Product Type:Digital Output Modules
Origin:Japan
Dimensions:107.5 × 130 × 32.8 mm
Weight:0.2kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa ADV551-P13 is a high-performance digital output module engineered for use in industrial control systems like the CENTUM VP and ProSafe-RS platforms. With 16 channels, this module delivers reliable signal switching for controlling external actuators such as relays, solenoids, and lamps. Its rugged design, isolated outputs, and quick response time make it ideal for demanding applications requiring high availability and fast operation.
Key Features
-
16 isolated digital output channels
-
Supports 24 V DC output signals (source type)
-
Fast response time for time-critical control operations
-
Per-channel isolation for enhanced system protection
-
Diagnostic functions for fault detection and status monitoring
-
Hot-swappable for easy maintenance
-
Suitable for use in safety systems when integrated with ProSafe-RS
-
Conforms to international industrial standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P13 |
| Module Type | Digital Output Module |
| Number of Channels | 16 isolated output channels |
| Output Signal Type | 24 V DC, source type |
| Output Voltage Range | 18 to 30 V DC |
| Output Current (per ch.) | 0.1 A max (resistive load) |
| Total Output Current | 1.6 A max (sum of all channels) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Signal Status Detection | Channel status monitoring |
| Response Time | Typically < 2 ms |
| Diagnostics | Short circuit detection, module error reporting |
| Hot Swap Capability | Supported |
| Mounting Type | Mounted on FIO base unit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS) |
Industry Applications
-
Distributed control systems in process industries
-
Oil and gas control panels
-
Chemical and petrochemical manufacturing
-
Power generation and energy distribution
-
Pharmaceutical and biotech plants
-
Water treatment automation
-
Factory automation systems
Frequently Asked Questions (FAQ)
-
What does the ADV551-P13 module do?
It outputs 24 V DC digital signals to control field devices such as relays or actuators.
-
How many output channels does it have?
It has 16 isolated digital output channels.
-
What is the maximum current per channel?
Each channel can supply up to 0.1 A.
-
Is the module hot-swappable?
Yes, it can be replaced without system shutdown.
-
Does it provide diagnostic feedback?
Yes, it includes short circuit detection and module status reporting.
-
Is it suitable for use in safety applications?
Yes, especially when used with Yokogawa’s ProSafe-RS system.
-
What kind of isolation does it provide?
Channel-to-channel and channel-to-ground electrical isolation.
-
What is the typical response time?
Less than 2 milliseconds.
-
What type of devices can it control?
Devices like solenoid valves, contactors, relays, and indicator lamps.
-
What systems is it compatible with?
It is designed for use with Yokogawa’s CENTUM VP and ProSafe-RS control systems.
