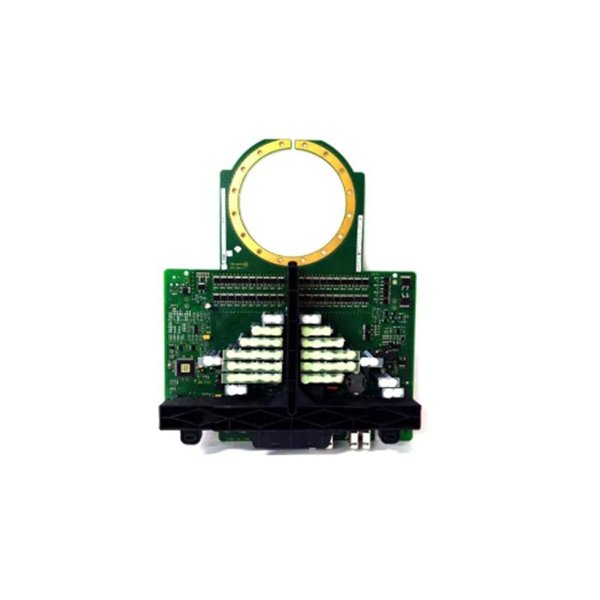

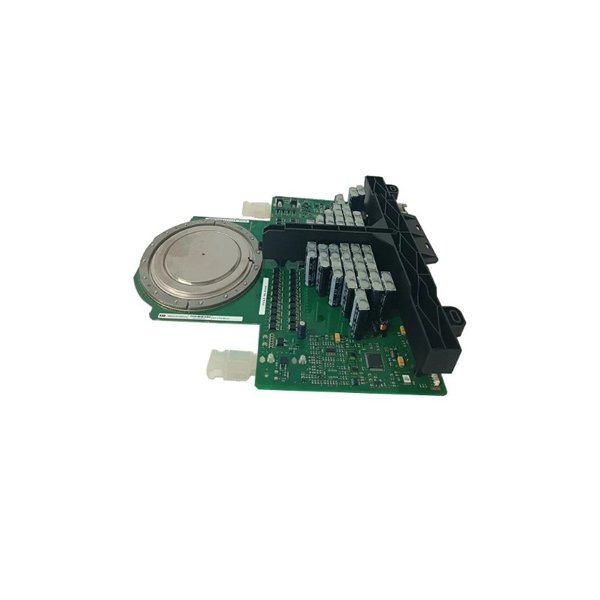

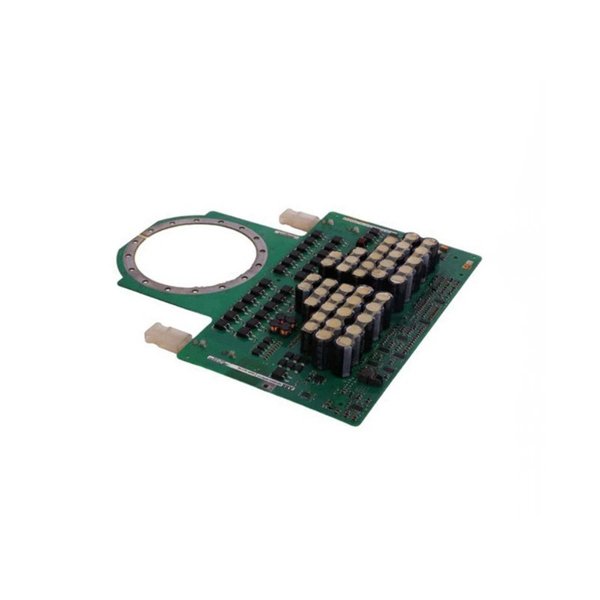

ABB 5SHY4045L0004 3BHB021400R0002 IGCT Modules

The ABB 5SHY4045L0004 (part number 3BHB021400R0002) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module designed for use in medium-voltage industrial power electronics. IGCT technology combines the efficiency of thyristors with the controllability of IGBTs, offering high-speed switching and low conduction losses in compact packaging.

This device is built for robust performance in demanding applications such as drives, converters, inverters, and HVDC systems. The module integrates the IGCT and its gate unit into a single housing, ensuring compact design, enhanced protection, and simplified installation.

Key Features

• Integrated gate unit with fast switching capabilities

• High surge current and blocking voltage capacity

• Robust housing for mechanical and electrical reliability

• Suitable for medium-voltage industrial applications

• Designed for efficient thermal performance

• Long service life and proven field reliability

Technical Specifications

Industry Applications

• Medium-voltage motor drives

• Static VAR compensators (SVC)

• High-voltage direct current (HVDC) converters

• Railway traction systems

• Industrial frequency converters

• Wind turbine inverters

• Energy storage and power quality solutions

Advantages

• Compact Integration: Combines switching and control in one unit, reducing system size and complexity.

• High Reliability: Rugged design with excellent fault tolerance and thermal management.

• Efficient Operation: Low conduction losses improve system efficiency and reduce cooling needs.

• Fast Switching: Enables precise control in dynamic load conditions and transient protection.

• Long Lifetime: Ideal for mission-critical applications requiring minimal downtime.

• ABB Support: Backed by ABB’s global service and technical support infrastructure.

Frequently Asked Questions (FAQ)

1. What is the blocking voltage of the ABB 5SHY4045L0004?

   The blocking voltage is 4500 V.

2. What is the peak turn-off current rating?

   The peak turn-off current is rated at 4000 A.

3. Is the gate drive integrated into the module?

   Yes, this IGCT module includes an integrated gate unit.

4. Can this module be used in HVDC applications?

   Yes, it is suitable for HVDC converters and other medium-voltage systems.

5. What cooling methods are supported?

   Both forced-air and liquid cooling can be used depending on system design.

6. What are the module’s dimensions?

   It measures 180mm x 120mm x 80mm.

7. What is the weight of the IGCT module?

   The module weighs approximately 1.2 kg.

8. Is the product RoHS compliant?

   Yes, it complies with RoHS environmental standards.

9. What is the typical application voltage?

   The recommended operating range is between 2800 V and 3300 V.

10. What standard governs insulation design?

    It is designed in accordance with IEC insulation coordination standards.
