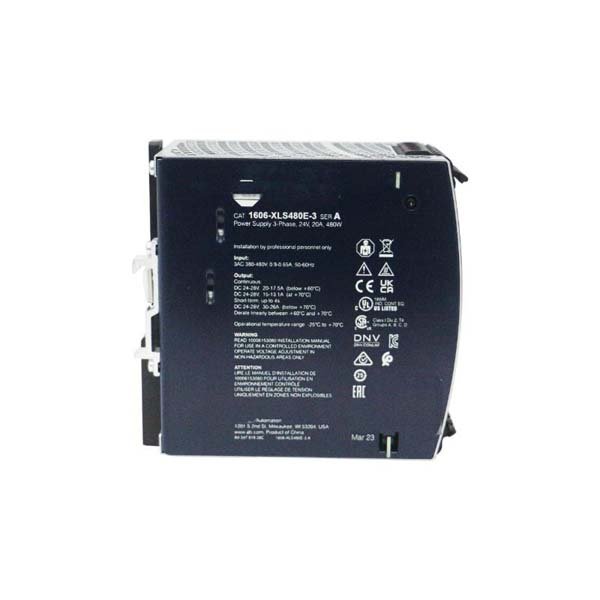

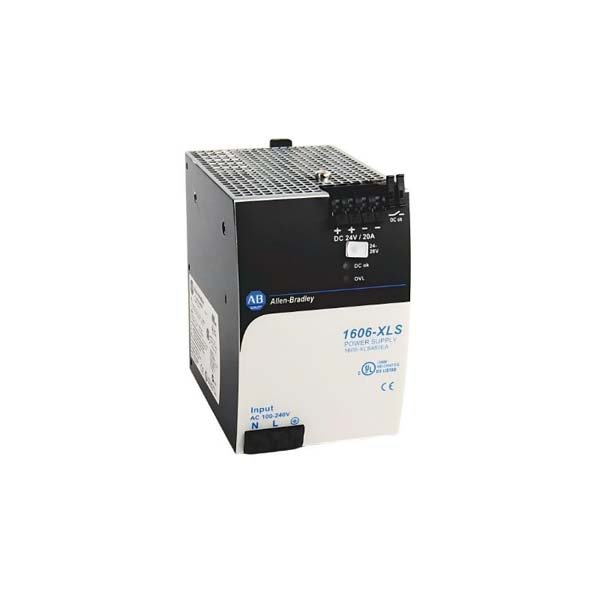

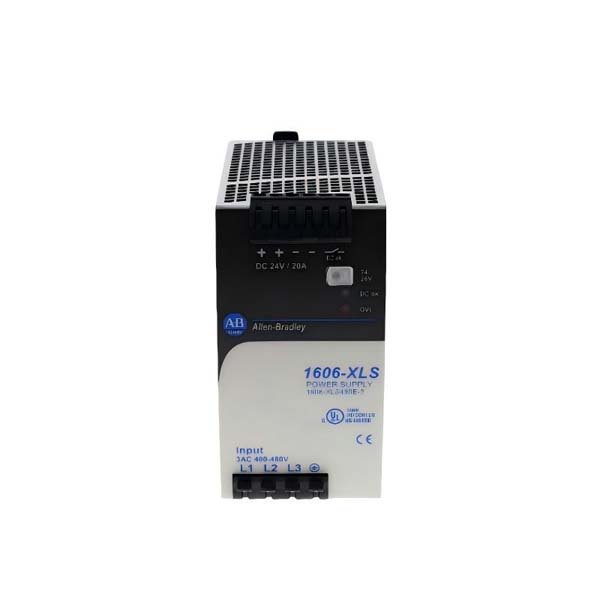

Allen-Bradley 1606-XLS480E-3 Power Supply Module
Manufacturer:Allen Bradley
Product Number:1606-XLS480E-3
Product Type:Power Supply Module
Origin:USA
Dimensions:65 mm × 124 mm × 127 mm
Weight:0.87 kg
Views:141
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Allen-Bradley 1606-XLS480E-3 is a high-performance DIN-rail mounted power supply module, providing 24 V DC at 20 A (480 W). Designed for control panels, PLC racks, and automation systems, this module ensures reliable and stable power delivery in complex industrial environments.
From a system integration perspective, the 1606-XLS480E-3 offers high efficiency, compact dimensions, and standard DIN-rail compatibility, making it easy to integrate into modern automation infrastructures. Its design supports continuous operation under industrial ambient conditions, with built-in protection features and diagnostics.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 1606-XLS480E-3 |
| Module Type | Power Supply Module |
| Output Voltage | 24 V DC (adjustable 24–28 V) |
| Rated Output Current | 20 A @ 24 V |
| Continuous Output Power | 480 W |
| Input Voltage | AC: 380–480 V AC (47–63 Hz); DC variant available |
| Efficiency | ~95% typical |
| Dimensions (W × H × D) | 65 mm × 124 mm × 127 mm |
| Weight | 0.87 kg |
| Mounting | 35 mm DIN-rail (EN 60715/EN 50022) |
| Protection Rating | IP20 |
| Features | Active inrush limiter, DC-OK relay contact, wide ambient temperature range |
Applications / Use Scenarios
-
Powering PLC racks, I/O modules, and industrial control panels.
-
Compact high-current power supply for automated machine systems.
-
Replacement of older power modules for efficiency and reliability improvements.
-
Use in material handling, packaging, and manufacturing process systems.
-
Integration in global automation systems requiring AC or DC input flexibility.
Advantages / Key Engineering Benefits
-
High Efficiency: Minimizes heat generation, reduces cooling requirements.
-
Compact & DIN-Rail Compatible: Space-saving design for tight control cabinets.
-
Robust Diagnostics: DC-OK relay and LED indicators enable monitoring and maintenance.
-
Flexible Integration: Compatible with the 1606-XLS family and global input voltages.
-
Reliable Operation: Supports continuous industrial use with wide temperature range.
-
Easy Installation: Spring-clamp terminals simplify wiring and maintenance.
FAQs
-
What is the output voltage and current?
– 24 V DC at 20 A.
-
What are the module dimensions?
– 65 mm × 124 mm × 127 mm.
-
What is the weight?
– 0.87 kg.
-
Is it DIN-rail mountable?
– Yes, for 35 mm DIN-rails.
-
What is the protection rating?
– IP20.
-
Does it support wide input voltage?
– Yes, AC 380–480 V or DC variants.
-
Is remote monitoring possible?
– Yes, via DC-OK relay.
-
What is the typical efficiency?
– ~95%.
-
Can it operate in redundant systems?
– Yes, with proper system design.
-
Does it have inrush current limiting?
– Yes, active inrush limiter included.
