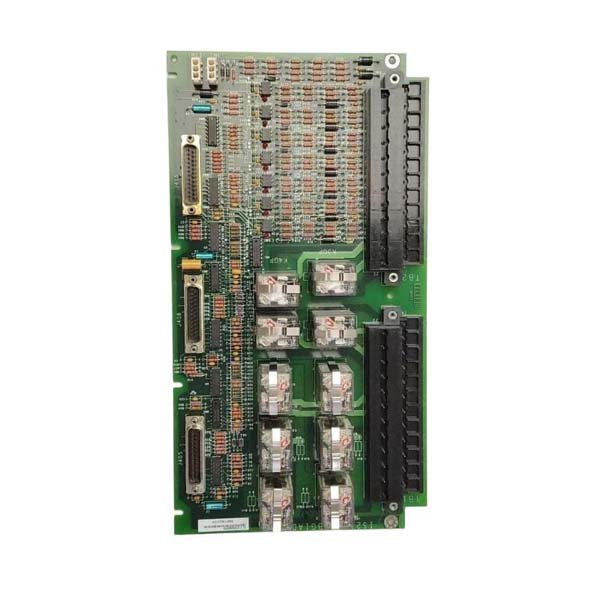

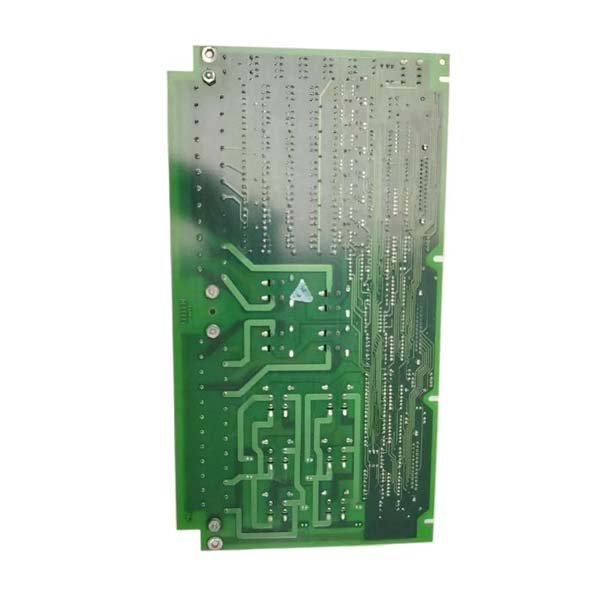

GE Fanuc IS200ECTBG1ADE Electronic Control Trip Board

The IS200ECTBG1ADE is a GE Mark VI/VIe Electronic Control Trip Board engineered to support deterministic, safety-critical trip functions in turbine and generator control systems. Designed with a focus on reliability and protective integrity, this module manages fault detection, trip logic execution, and secure signal isolation.

In high-energy rotating equipment—where milliseconds matter—this board ensures that protective actions occur consistently, accurately, and under strict deterministic rules.

Engineering Specification Summary

Deployment Domains

This module is widely adopted across high-risk industrial operations that require consistent and verifiable tripping behavior:

• Overspeed, over-temperature, or vibration protection in turbines

• Emergency shutdown (ESD) frameworks in large power units

• Redundant safety architectures complying with internal plant safety tiers

• Modernization programs replacing aging trip logic hardware

• Multi-channel protection layers where faults must remain isolated

Its design supports continuous uptime while ensuring protective mechanisms remain uncompromised.

Why Engineers Choose This Module

The IS200ECTBG1ADE is valued for its deterministic performance and protective transparency—two qualities that significantly elevate operational safety.

Key engineering benefits include:

• Rapid trip actuation with predictable timing

• High channel isolation, preventing signal cross-contamination

• Stable behavior in EMC-intensive environments

• Low failure incidence, suited for long-term deployment

• Clear diagnostic reporting for maintenance predictability

The module’s architecture reduces nuisance trips while maintaining readiness for real fault events, improving both reliability and safety compliance.

FAQs

1. What is the IS200ECTBG1ADE used for?

   It manages trip logic and protective shutdown signals for Mark VI/VIe systems.

2. Does it differ significantly from earlier ECTB variants?

   Yes, the ADE revision includes refined isolation and updated component tolerances.

3. Is firmware involved?

   No—its operation is hardware-driven and does not require firmware updates.

4. Can the board function in redundant protection schemes?

   Yes, it is designed to operate in parallel trip architectures.

5. What does a failing module typically show?

   Missed trip events, false activations, or diagnostic alarm flags.

6. Can this module be hot-swapped?

   No, power must be removed before removal or installation.

7. Does it support multiple trip sources simultaneously?

   Yes, each channel is independently isolated and processed.

8. How long does it typically last in service?

   Over a decade under controlled cabinet conditions.

9. Does the module improve system safety by itself?

   It contributes significantly when integrated within the full Mark VI/VIe protection framework.

10. What installation checks are essential?

    Proper grounding, clean backplane contact, and correct signal routing.
