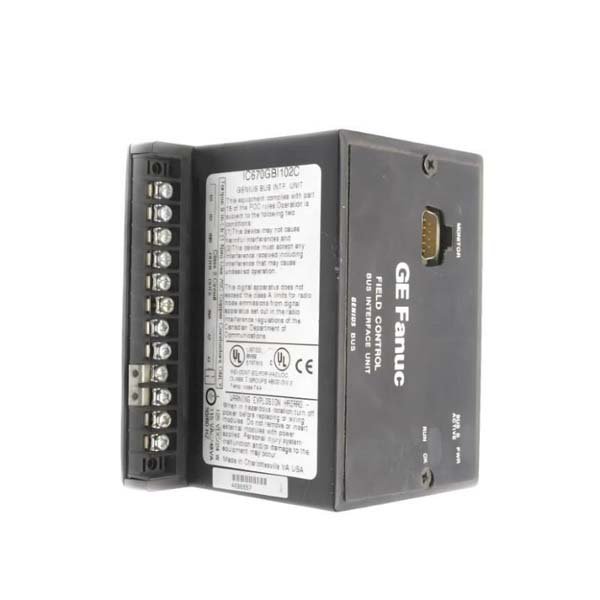

General Electric IC670GBI102 Bus Interface Module

The GE IC670GBI102 is a Bus Interface Module used within the IC670 / RX3i distributed I/O architecture. As a key component in multi-rack or remote I/O networks, it provides a stable communication link between the primary controller and expansion bases.

From a system integration standpoint, the IC670GBI102 ensures synchronized data exchange, predictable bus timing, and consistent performance across extended wiring distances. It is often deployed in applications where a distributed architecture reduces panel density and supports modular expansion without redesigning the main control platform.

Technical Specifications

Applications / Use Scenarios

• Multi-rack IC670 distributed I/O architectures

• Expansion of RX3i systems requiring additional remote I/O panels

• Industrial networks requiring deterministic communication across multiple bases

• Retrofit projects upgrading older GE Fanuc architectures with modular extensions

• High-reliability environments where stable backplane communication is essential

Advantages / Engineering Benefits

• Reliable communication bridging for distributed I/O systems

• Simplified network expansion without major PLC reconfiguration

• DIP-switch addressing enables straightforward commissioning

• LED diagnostics assist with alignment, wiring checks, and fault tracing

• Stable bus timing ensures synchronized I/O updates across multiple racks

• Rugged design supports long-term operation in high-vibration industrial areas

FAQs

1. What is the main purpose of the IC670GBI102?

   – To interface remote or expansion IC670 chassis with the main controller.

2. Which systems is it compatible with?

   – GE IC670 and RX3i distributed I/O networks.

3. Does it support serial communication?

   – Yes, via an RS-485–based bus architecture.

4. How is addressing configured?

   – Through onboard DIP switches.

5. Is the module powered externally?

   – No, it is powered directly from the IC670 chassis.

6. Are diagnostic indicators available?

   – Yes, the module includes communication and status LEDs.

7. Can it be used in extended-distance installations?

   – Yes, the design supports distributed panel layouts.

8. Does the module support hot-swapping?

   – Power must be removed before module replacement.

9. Can it be combined with analog and digital modules in the same rack?

   – Yes, the IC670 system supports mixed-module configurations.

10. What environmental rating does it support?

    – Operates from 0°C to +60°C, suitable for industrial environments.
