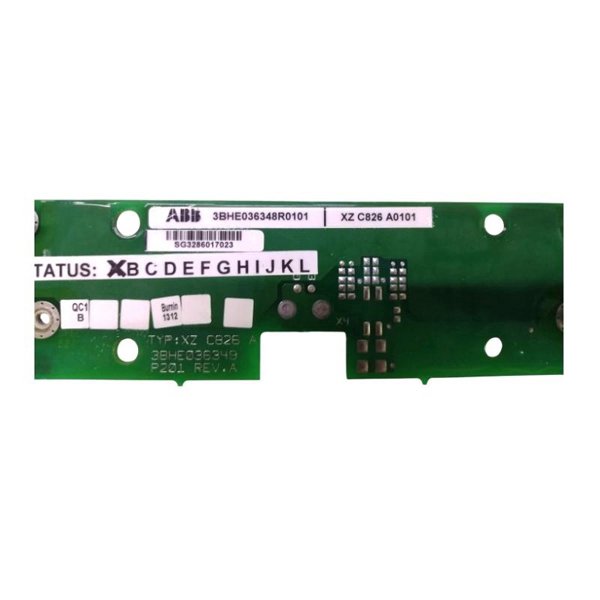

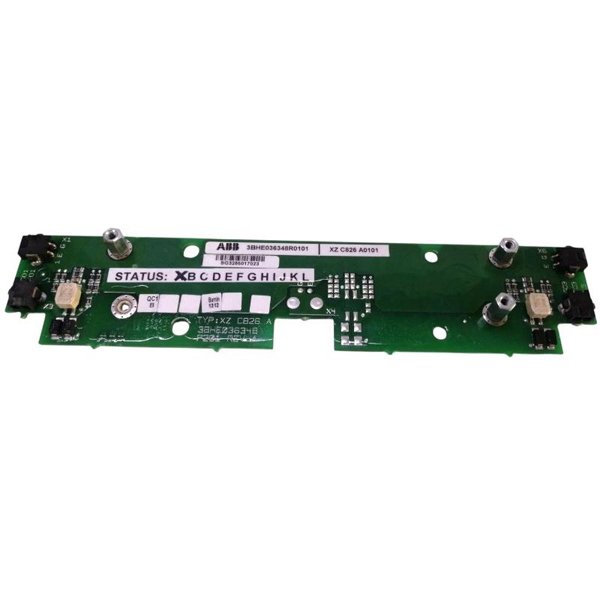

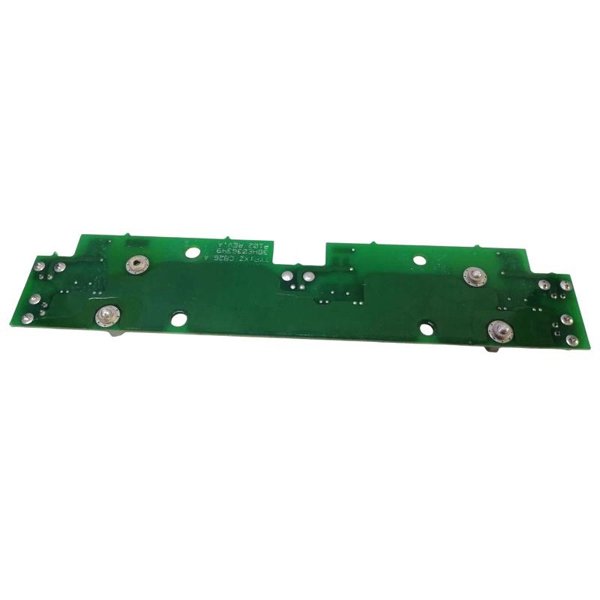

ABB XZ C826 A0101 3BHE036348R0101 Separator Plate

The ABB XZ C826 A0101 (3BHE036348R0101) Separator Plate is a precision-engineered component used in ABB’s industrial automation and process control systems. It functions primarily within control relays, power distribution units, and modular electronic assemblies, providing critical electrical isolation and mechanical separation between components.

Manufactured with high-quality insulating materials, the separator plate ensures reliable protection against short circuits, voltage leakage, and accidental contact between modules. Its robust construction and compliance with industrial standards make it suitable for high-demand environments, including power plants, manufacturing facilities, and process automation installations.

The XZC826A0101 improves system safety, modular integrity, and maintainability while enabling engineers to optimize control cabinet layouts. Its design simplifies installation and ensures consistent performance across ABB’s control systems.

Product Specifications

Product Applications

The ABB separator plate is widely used in industrial control and automation contexts where safety, modularity, and electrical isolation are critical:

• Power Generation – Used in relay panels and modular assemblies to separate high-voltage circuits.

• Petrochemical & Chemical Plants – Ensures safe module spacing in control cabinets for hazardous processes.

• Manufacturing & Automation – Provides isolation in programmable logic controller (PLC) racks and I/O modules.

• Water Treatment Plants – Separates modules in distribution and monitoring panels.

• Mining & Metals – Protects control modules from voltage transients and mechanical interference.

• HVAC & Building Automation – Ensures safe separation between control and power components.

Product Advantages

• Electrical Safety – Provides reliable insulation and prevents short circuits or voltage leakage.

• Durable Construction – Made from high-strength flame-retardant polymer materials.

• Easy Installation – Compatible with ABB modular racks; can be snap-fitted or screwed in place.

• Standardized Dimensions – Fits existing ABB assemblies without modification.

• Enhances Maintainability – Allows safe access to individual modules without disturbing adjacent units.

• Industrial Reliability – Designed for harsh industrial environments, ensuring long-term performance.

• Compliance – Meets international electrical safety and flammability standards.

FAQ

1. What is the main function of the ABB XZC826A0101 separator plate?

   It provides electrical and mechanical separation between modules in ABB control and relay assemblies.

2. Which ABB systems are compatible with this separator plate?

   It fits ABB modular electronic assemblies, relay racks, and control panels.

3. Can the separator plate handle high-voltage circuits?

   Yes, it is rated for voltage withstand up to 600 V AC.

4. Is it flame-retardant?

   Yes, the material complies with UL 94 V-0 standards.

5. How is the separator plate installed?

   It can be snap-fitted or screwed into standard ABB module racks.

6. Does it provide mechanical stability as well as electrical insulation?

   Yes, it prevents modules from contacting each other while providing rigid support.

7. Can multiple separator plates be used in the same rack?

   Yes, plates can be installed between each module to ensure complete separation.

8. Is it compatible with non-ABB modular systems?

   It may be adapted, but optimal performance is ensured in ABB assemblies.

9. What is the operating temperature range?

   It operates reliably between -20 °C and 70 °C.

10. Does it improve maintenance safety?

    Yes, it allows safe handling of individual modules without affecting adjacent units.
