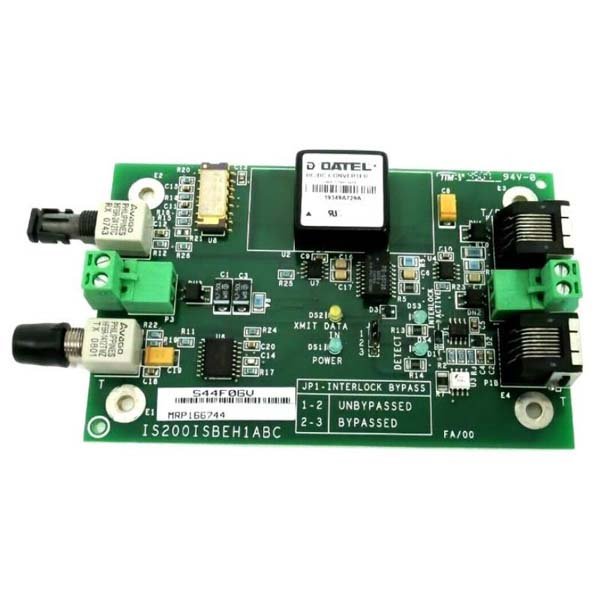

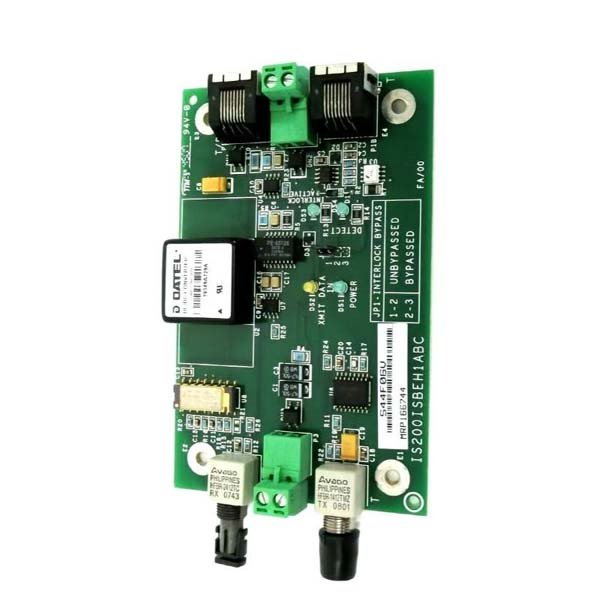

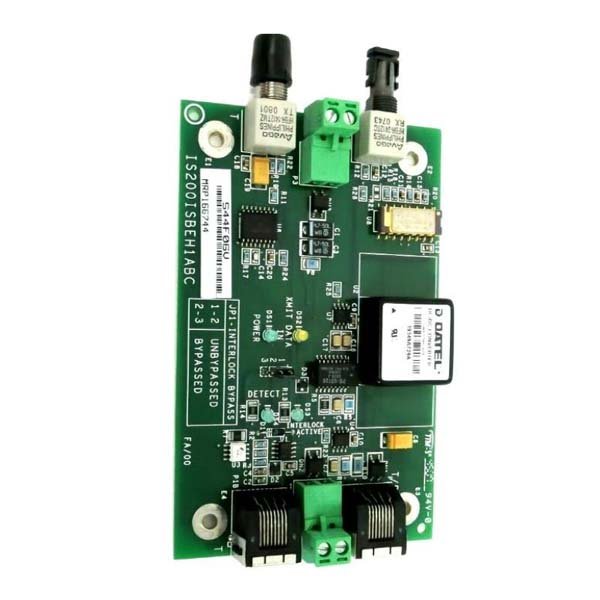

General Electric IS200ISBEH1ABC Integrated Sensor Bridge & Enhanced Monitoring Module
Manufacturer:GE Fanuc
Product Number:IS200ISBEH1ABC
Product Type:Sensor Bridge & Enhanced Monitoring Module
Origin:USA
Dimensions:212 mm × 134 mm × 32 mm
Weight:0.70 kg
Views:107
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS200ISBEH1ABC is an integrated sensor bridge and enhanced monitoring module designed for Mark VI and Mark VIe turbine and industrial drive systems. It serves as a high-fidelity interface between multiple analog and digital sensors and the control processor, ensuring accurate signal transmission, monitoring, and early detection of system anomalies. Its design allows operators to maintain real-time awareness of critical parameters such as temperature, vibration, and process currents.
Technical Specifications & Physical Dimensions
| Specification | Details |
|---|---|
| Brand | GE |
| Model | IS200ISBEH1ABC |
| Module Type | Sensor Bridge & Enhanced Monitoring Module |
| Functional Role | Signal bridging, sensor conditioning, system monitoring |
| Compatible Systems | Mark VI / Mark VIe turbine and drive platforms |
| Input Types | Analog sensors, digital signals |
| Output | Conditioned signals to controller |
| PCB Construction | Industrial-grade with protective coating |
| Dimensions (L × W × H) | 212 mm × 134 mm × 32 mm |
| Weight | 0.70 kg |
| Operating Temperature | –20°C to +65°C |
| Mounting Method | Rack-mounted, keyed connector alignment |
Applications & Use Cases
The IS200ISBEH1ABC is suitable for systems where multiple sensor inputs must be accurately bridged and monitored:
-
Turbine temperature and vibration monitoring circuits
-
Industrial drive feedback loops for voltage and current
-
Condition-based maintenance systems for early anomaly detection
-
Retrofit programs replacing older ISBEH revisions
-
Critical process monitoring requiring high signal integrity
Its integrated design reduces wiring complexity and ensures consistent, high-quality sensor data for system control and protection loops.
Operational Advantages
This module enhances operational reliability by providing isolated, low-noise conditioned outputs. Integrated diagnostics allow operators to identify early warning signs of potential system issues, minimizing downtime. The rugged PCB and protective coating ensure long-term stability under thermal cycling and industrial vibration, while its compact size allows for efficient installation in densely populated control cabinets.
FAQs
-
What is the primary purpose of IS200ISBEH1ABC?
It bridges and conditions sensor signals while providing enhanced monitoring.
-
Is it compatible with Mark VIe systems?
Yes, it integrates across both Mark VI and Mark VIe platforms.
-
Does it provide diagnostic outputs?
Yes, it delivers conditioned sensor signals and diagnostic feedback.
-
Can it replace older ISBEH revisions?
Yes, but wiring and rack layout verification is recommended.
-
Does the module require calibration?
Factory calibration is sufficient; field calibration is rarely necessary.
-
How is module failure indicated?
Erratic sensor readings, loss of signals, or abnormal diagnostic outputs.
-
Is the module resistant to electrical noise?
Isolation and filtering reduce susceptibility to EMI.
-
Can it operate in high-vibration environments?
Yes, it is designed for typical industrial cabinet vibration conditions.
-
Is firmware required for operation?
No, it functions as a hardware-based sensor interface and monitoring module.
-
Is field repair recommended?
Replacement is standard; component-level repair is discouraged.
