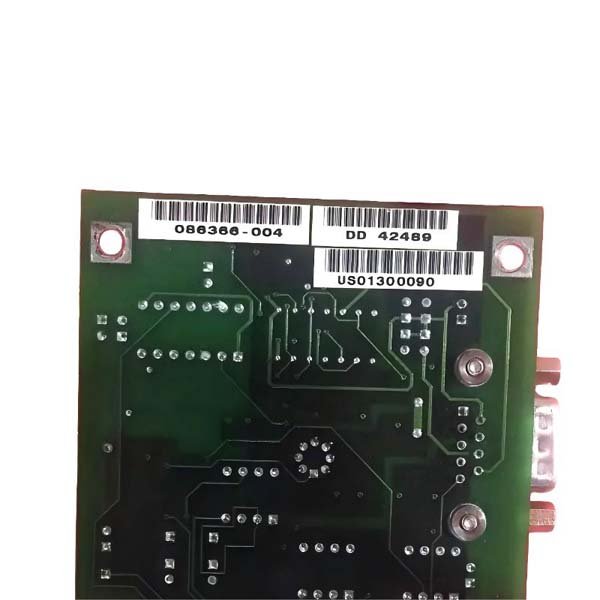

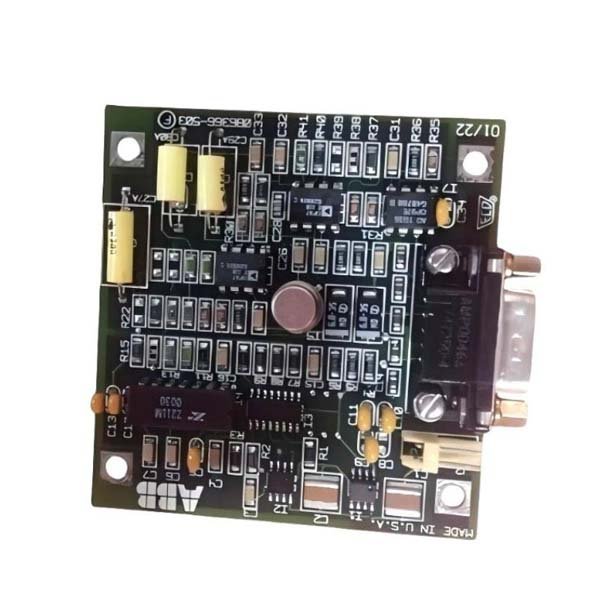

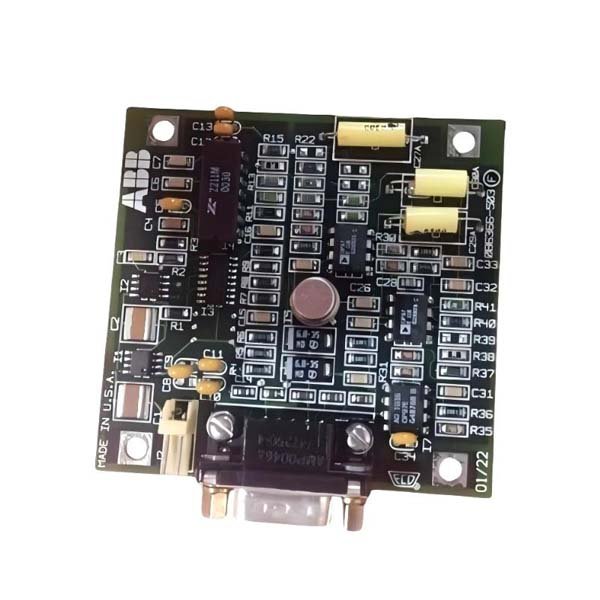

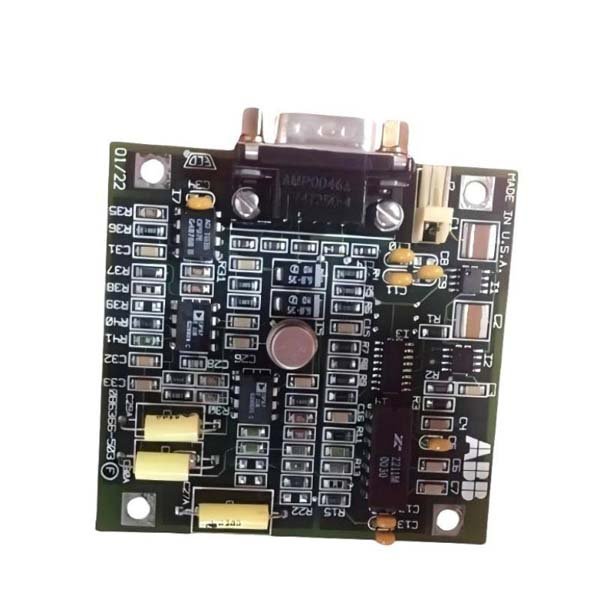

ABB 086366-004 Communication Module
Manufacturer:ABB
Product Number:086366-004
Product Type:Communication Module
Origin:Sweden
Dimensions:159 mm × 47 mm × 118 mm
Weight:0.46 kg
Views:66
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 086366-004 is designed for facilities where communication reliability is more important than raw throughput. Plants undergoing modernization, or those integrating legacy field stations with new ABB architectures, frequently use this module due to its predictable behavior and stable performance. Rather than acting as a generic interface, it plays a coordinated role within the system—managing traffic, isolating disturbances, and maintaining consistent communication cycles even when network loads fluctuate.
Technical Specifications
| Item | Description |
|---|---|
| Module Category | Industrial communication expansion module |
| System Platform | Compatible with ABB distributed control racks |
| Power Source | Rack backplane supply; no external wiring required |
| Communication Role | Channel expansion and deterministic data routing |
| Status Feedback | LED indicators for activity, operating state, and fault conditions |
| Operating Temperature | –20°C to +60°C |
| Humidity Range | 5–95% non-condensing |
| Dimensions (H × W × D) | 159 mm × 47 mm × 118 mm |
| Weight | Approx. 0.46 kg |
| Mounting | Slot-mounted with ABB locking mechanism |
| Service Requirements | No calibration; routine visual checks only |
Applications
Engineers typically select the 086366-004 for situations where communication capacity must be expanded without restructuring the control cabinet. Common scenarios include:
-
Adding remote I/O nodes to an existing ABB installation
-
Integrating older subsystems into a modern DCS environment
-
Coordinating communication between widely distributed stations
-
Strengthening network consistency in high-load industrial processes
-
Supporting system growth where communication paths must remain predictable
Advantages
-
Straightforward integration into ABB rack-based systems
-
Diagnostic indicators make network assessment faster and more transparent
-
Designed for continuous operation with low drift over long service cycles
-
Expands system communication capabilities with minimal configuration effort
-
High compatibility with legacy ABB hardware, ideal for staged migration projects
FAQs(10)
-
Is the 086366-004 suitable for redundant architectures?
Yes, it supports redundancy when the host system is configured for it.
-
Does it require external power?
No, all power is delivered through the backplane.
-
How does it report communication faults?
Through on-module LED indicators and system-level diagnostic messages.
-
Can it be used alongside earlier ABB modules?
Yes, it is compatible with multi-generation ABB installations.
-
Does the module support firmware updates?
Firmware can be updated via ABB engineering tools where applicable.
-
Is it appropriate for environments with vibration?
Yes, within ABB’s industrial vibration tolerance specifications.
-
How many communication paths can it support?
Channel availability depends on system configuration and controller capability.
-
Is hot-swapping recommended?
System-safe conditions are strongly recommended before replacement.
-
Does it provide real-time diagnostic feedback?
Yes, LED activity indicators provide immediate operational status.
-
Is periodic calibration required?
No, the module is designed for long-term stability without calibration.
