ABB PM866AK02 3BSE081637R1 Redundant Processor Unit
Item Number:PM866AK02 3BSE081637R1
Brand: ABB
Lead Time: In stock
Description：Redundant Processor Unit
Payment: T/T
Product Description
ABB PM866AK02 redundant processor unit is a key component of the ABB System 800xA distributed control system (DCS), providing computing power and communication capabilities for the system.
The unit is a dual processor module design with a clock frequency of 133MHz and 64MB of memory. It can be configured in redundant mode to ensure that the system can continue to operate even if one of the components fails.

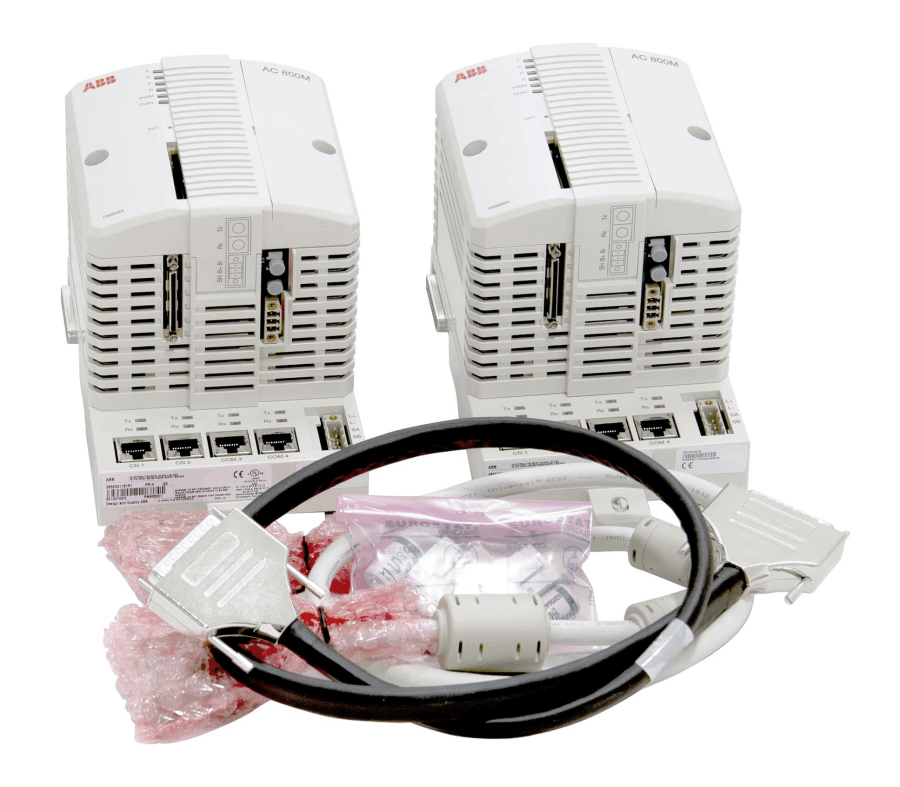

It is suitable for fields such as manufacturing and power generation. The package contains 2 PM866A CPUs, 2 TP830 base boards, 2 TB807 module bus terminators, 1 TK850 CEX bus extension cable, 1 TK851 RCU link cable and 2 batteries for memory backup (4943013-6), but does not include a license.
Function&Features
- Dual CPU hot standby: Equipped with 2 PM866A processors (133MHz/64MB), supporting non-stop switching.
- Full link redundancy: including CPU, CEX-Bus, Ethernet communication and S800 I/O modules to avoid single point failure.

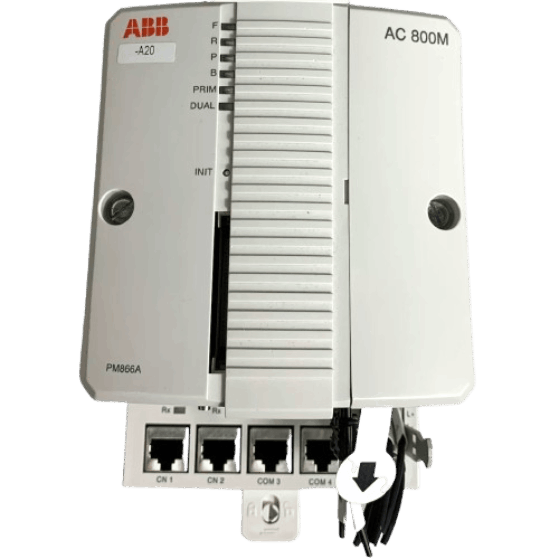

- Ethernet interface: The baseboard is equipped with 2 RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, and built-in redundant Ethernet communication ports.
- Serial interface: 2 RJ45 serial ports (COM3, COM4), of which COM3 is an RS-232C port with modem control signal, and COM4 is an isolated port for connecting to the configuration tool.
Specifications
|
Parameter |
Value |
|
Processor type |
MPC866 |
|
Switch over time in red. conf. |
Max 10 ms |
|
No. of applications per controller |
32 |
|
No. of programs per application |
64 |
|
No. of diagrams per application |
128 |
|
Clock Frequency |
133 MHz |
|
Performance, 1000 boolean operations |
0.09 ms |
|
Performance |
0.09 ms |
|
Memory |
64 MB |
|
RAM available for application |
51.389 MB |
|
Product Net Depth / Length |
135 mm |
|
Product Net Height |
186 mm |
|
Product Net Width |
119 mm |
|
Product Net Weight |
2.7 kg |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A: Redundant Processor Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping lovation?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
