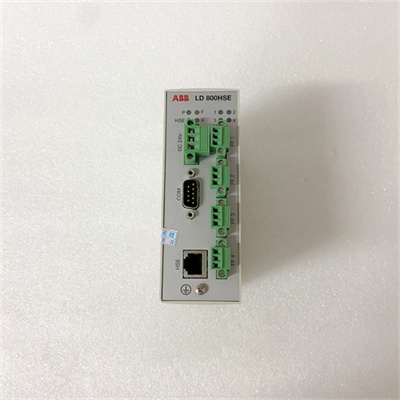

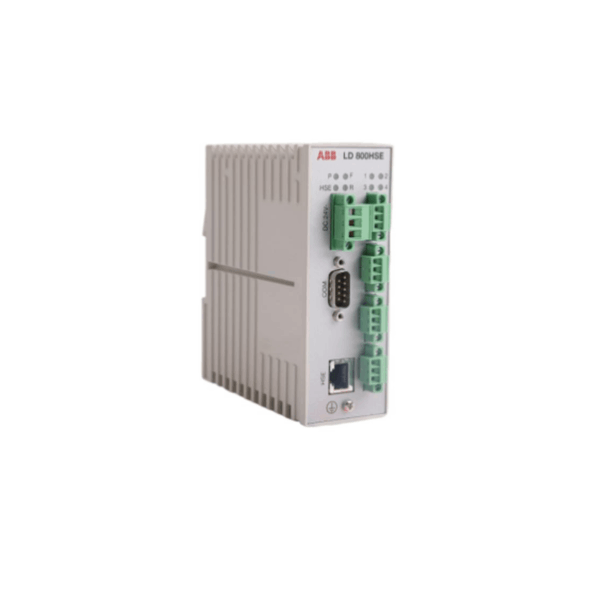

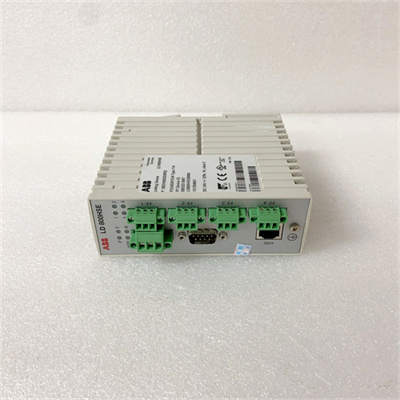

ABB LD800HSE 3BDH000320R02 Product Details

ABB LD800HSE 3BDH000320R02 is a high-performance connectivity controller designed for data communication, monitoring and control between devices in industrial automation systems. As a gateway between the H1 fieldbus and the HSE (High Speed ​​Ethernet) subnet, it enables high-speed and reliable data transmission to meet the needs of real-time control.

Main Functions and Features

Multiple communication interfaces: Provides multiple communication interfaces such as Ethernet and serial communication to facilitate connection with other devices or systems.

Protocol Support: Supports various industrial communication protocols for data exchange and collaboration with other devices.

Data Processing Capability: Has certain data processing capabilities, including data conversion, processing and transmission.

Programmability: Has a certain degree of programmability to enable configuration and customization according to specific application requirements.

Electrical Isolation: May have electrical isolation function to prevent electrical interference from affecting the system.

Diagnostic function: Provides diagnostic and monitoring functions to help timely identify and solve potential communication or control problems.

Redundancy support: Supports device redundancy function to ensure that when a device fails, the system can automatically switch to the backup device to ensure the continuity of the production process.

Technical specifications

Dimensions: 47 x 131 x 111 mm (L x H x W), mounted on a 35 mm DIN rail.

Weight: Approximately 0.4 kg.

Operating temperature: 0°C…+55°C.

Storage temperature: −20°C…+70°C.

Relative humidity: 0%…95%, non-condensing.

Communication interface

Ethernet interface: 1 channel, supports 10 Mbit/s or 100 Mbit/s (auto-sensing).

H1 fieldbus interface: 4 channels, supports a transmission rate of 31.25 kbit/s.

Serial interface: 9-pin SubD male RS-232, 115.2 kbit/s.

Application areas

Industrial automation: used to connect and coordinate various automation devices, including sensors, actuators and control systems.

Process control: used in industries such as chemicals, oil and gas to monitor and control production processes.

Power systems: used in power systems to monitor and control power generation, transmission and distribution equipment.

Building automation: used in large buildings or facilities to integrate various automation systems such as lighting, air conditioning and security systems.

Traffic systems: used to monitor and control traffic signals, tunnel systems, etc.

Energy management: used in the energy industry to monitor and manage energy production and distribution.
