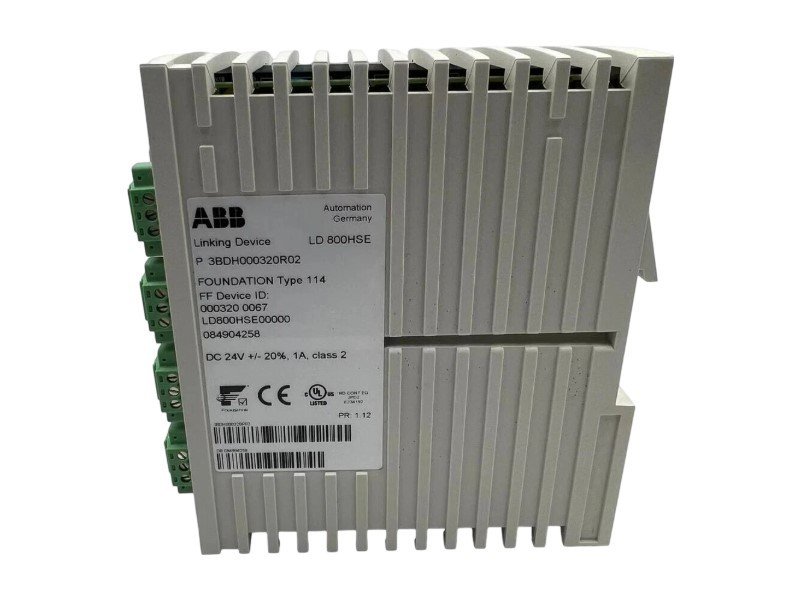

ABB LD 800HSE EX FOUNDATION Fieldbus Linking Device
Product Description
ABB LD 800HSE EX is a FOUNDATION Fieldbus Linking Device that establishes a channel between FOUNDATION Fieldbus H1 (field-level low-speed bus) and FOUNDATION Fieldbus HSE (factory-level high-speed Ethernet). It serves as a gateway connecting four FOUNDATION Fieldbus H1 field networks with the FOUNDATION Fieldbus HSE backbone network.
Function & Features
- Process Data Redistribution: The LD 800HSE exchanges data between H1 links and transfers data bidirectionally between the H1 network and the HSE network.
- Publish/Subscribe: The LD 800HSE publishes process data from H1 devices via the HSE network and subscribes to control data sent to H1 devices.
- System Time Publisher: On each H1 channel, the LD 800HSE acts as the SM time publisher, providing unified time synchronization for the entire connected H1 network.
- HSE Time Synchronization: The LD 800HSE obtains accurate time from the HSE network using the SNTP protocol and synchronizes it with the downstream H1 network.
Specifications
| Parameter | Description |
|---|---|
| Model Number | LD 800HSE EX |
| Number of channels (Ethernet) | 1 |
| Port (Ethernet) | Ethernet 10BASE-T/100BASE-TX, TJ45 |
| Transfer rates (Ethernet) | 10 Mbit/s or 100 Mbit/s (autosensing) |
| Number of channels (FF H1) | 4 |
| Port (FF H1) | FF H1 3-pole screw terminals (pluggable), transformer coupling, galvanically isolated |
| Physical layer profile | type 114, standard power signalling, separately powered, not intrinsically safe |
| Transfer rate (FF H1) | 31.25 kbit/s |
| Dimensions | (length × height × width) 47 × 131 × 111 mm, mounted on DIN rail 35 mm |
| Weight | approx. 0.4 kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A: Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
