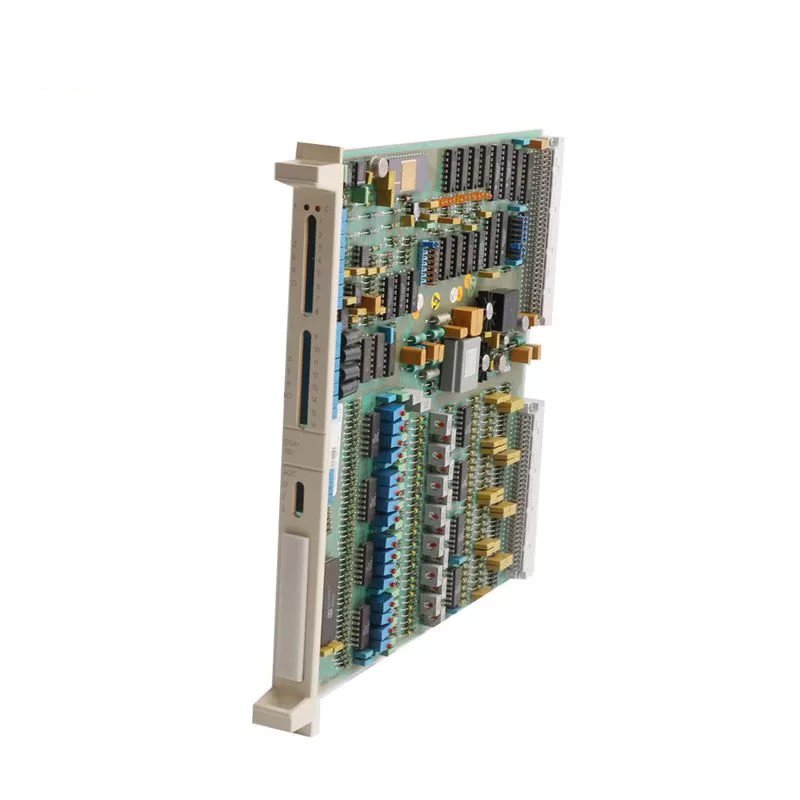

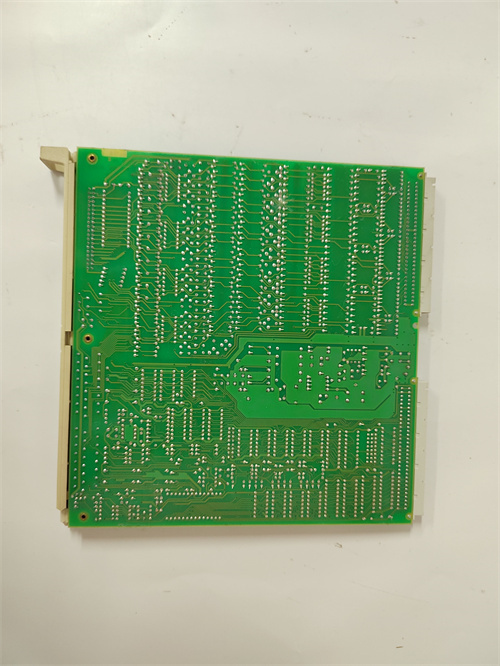

ABB DSAI130 Product Introduction

ABB DSAI130 is a high-performance analog input module,belonging to ABB’s Advant series,designed for industrial automation and control systems.It can convert analog signals from sensors(such as temperature,pressure,flow,etc.)into digital signals for processing and monitoring by PLC or DCS systems.

Product Features

High-precision measurement

Provides high-precision analog signal acquisition to ensure the accuracy of measurement data.

Full-scale accuracy can reach 0.03%,ensuring high data accuracy.

Multi-channel design

With 16 analog input channels,multiple signals can be collected simultaneously.

Isolation design

Channel isolation effectively suppresses interference and improves system reliability.

Fast sampling rate

Sampling time is as low as 20 milliseconds,which can respond quickly to signal changes.

Multiple signal type support

Supports multiple signal types,including voltage(±10V),current(±10mA),etc.

Flexible configuration

Flexible configuration through software to adapt to different application requirements.

Strong compatibility

Compatible with various PLCs and control systems of ABB.

Technical specifications

Input channels:16.

Input range:±10V,±10mA.

Accuracy:0.03%of full scale.

Sampling time:20 milliseconds.

Filter time:0.1 second,0.5 second,1 second,5 seconds.

Power supply:24V DC.

Power consumption:5 watts.

Dimensions:220mm×80mm×30mm.

Weight:about 0.5 kg.

Operating temperature range:-20°C to+70°C.

Humidity range:5%to 95%(non-condensing).

Application areas

ABB DSAI130 is widely used in the following fields

Industrial automation:used to collect analog signals such as temperature,pressure,flow,etc.at industrial sites.

Process control:used for process control in chemical,petroleum,pharmaceutical and other industries.

Energy management:used to monitor and record energy-related analog signals.

Environmental monitoring:used to measure parameters such as air quality,temperature,humidity,etc.
