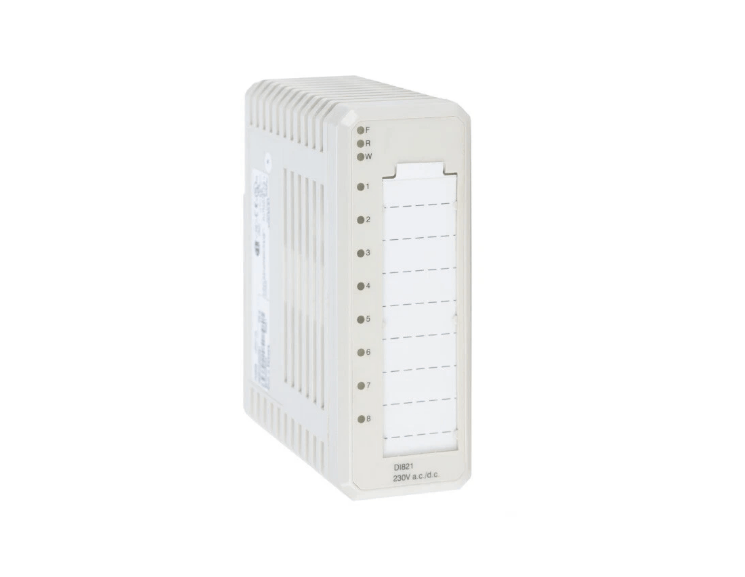

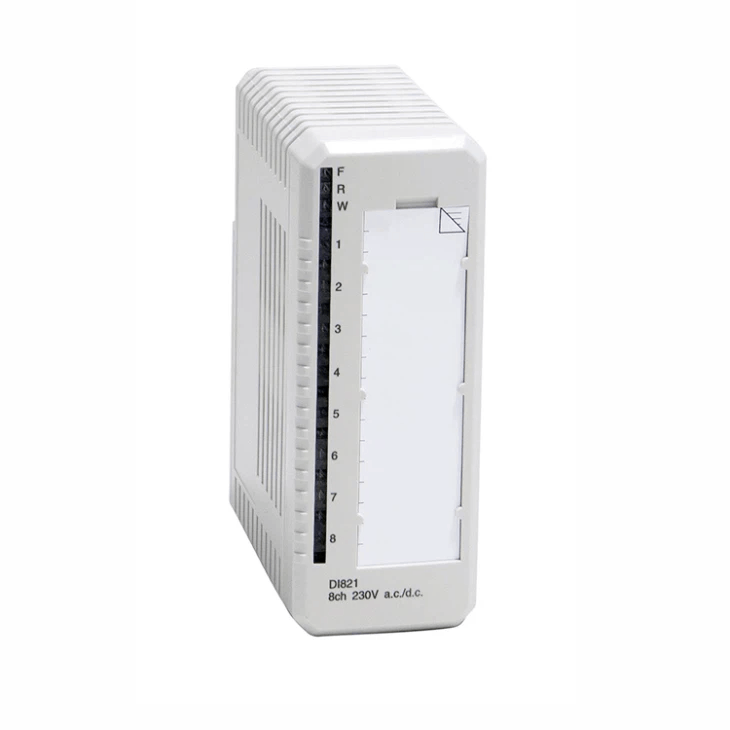

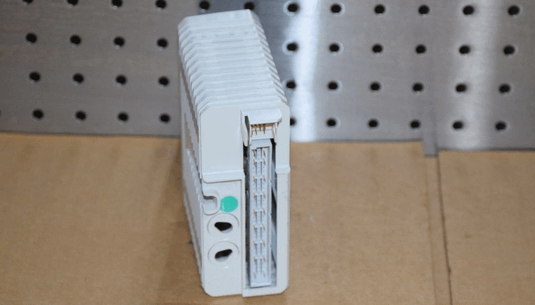

ABB DI821 3BSE008550R1 Digital Input Module
Item Number:DI821 3BSE008550R1
Brand:ABB
Lead Time: In stock
Description:Digital Input Module
Payment: T/T
Product Description
ABB DI821 3BSE008550R1 is a digital input module for S800 I/O system. It has 8 digital input channels and can process 230V AC or DC input signals.
The AC input voltage range is 164 to 264V, and the input current is 11mA at 230V AC; the DC input voltage range is 175 to 275V, and the input current is 1.6mA at 220V DC. Each input channel is independently isolated from each other.
Use with MTU:TU811, TU813, TU831, TU839, TU851
Precautions：High voltage inputs require shielded cables to avoid parallel wiring with other low voltage signals.
Fuctions & Features
Input type:
- AC: 164~264V, input current 11mA@230V AC.
- DC: 175~275V, input current 1.6mA@220V DC.
Voltage monitoring:
- Channel 1 monitors channels 2-4, channel 8 monitors channels 5-7.
- When the monitoring voltage is lost, the error input is triggered and the Warning LED is lit. The status can be read through the ModuleBus.
Protection and filtering:
- Built-in electromagnetic protection components (anti-surge/pulse interference).
- Each channel contains a current limiting component to prevent overload damage.
- 6ms analog filtering to eliminate signal jitter.
Specification
|
Parameter |
Value |
| Order number | 3BSE008550R1 |
| series | 800xA |
|
Front LED's |
F(ault), R(un), W(arning), Channel 1 - 16 Status |
|
Supervision |
Process voltage, Channel 1 and 8 can be used per group |
|
Status indication of supervision |
Module Error, Module Warning, Channel error |
|
Width |
45 mm |
|
Depth |
102 mm, 111 mm including connector |
|
Height |
119 mm |
|
Weight |
0.18 kg |
| Keying code | AC |
| Marine certification | ABS, BV, DNV, LR |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A: D/I module
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
