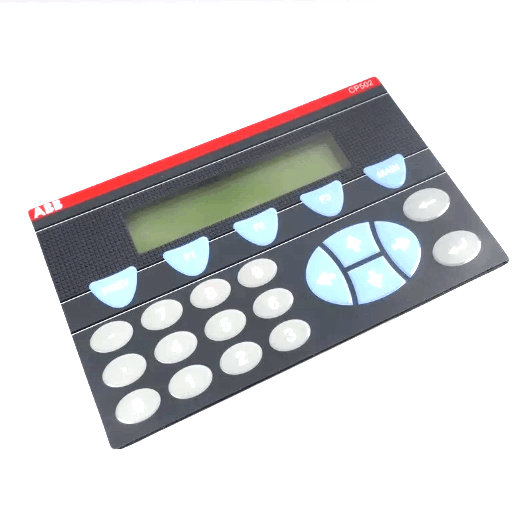

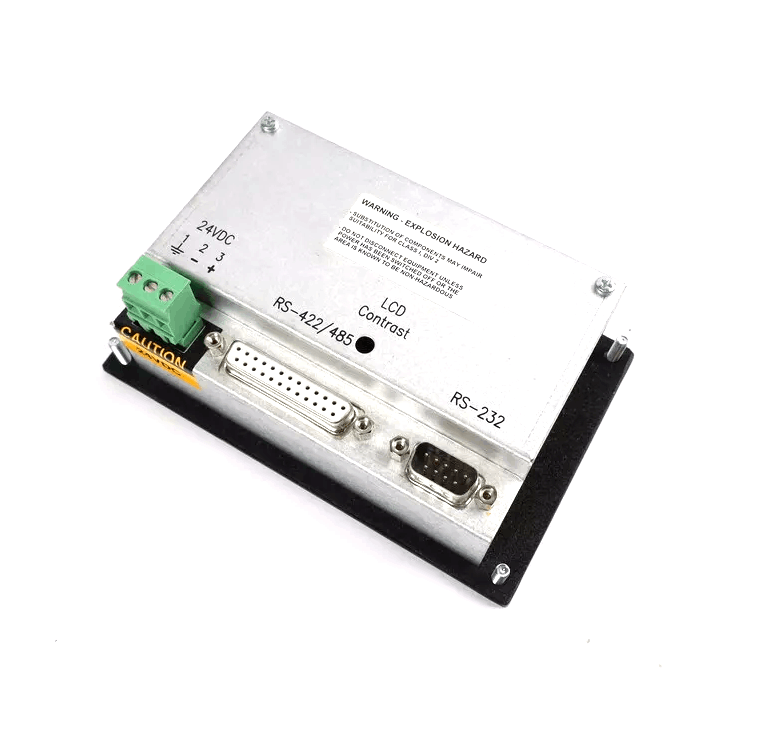

ABB CP502 1SBP260171R1001 Control Panel
Item Number:CP502 1SBP260171R1001
Brand:ABB
Lead Time: In stock
Description:Control Panel
Payment: T/T
Product Description
ABB CP502 1SBP260171R1001 control panel is a text display control panel in the CP500 series and has been replaced by the CP600 and CP400 control panel series.
It requires CP500soft software, has 3 programmable sections and 8 function keys, and uses a 2-line 20-character LCD text display with a backlight. The CP500 series has been discontinued.
Recommended replacement models:
- CP600 series
- CP400 series
- New panels require Automation Builder or Panel Builder 600.
Fuctions & Features
Display and keys:
- LCD text display, 2 lines × 20 characters, with backlight.
- Adopts 2.8-inch STN text LCD display, clear display.
- Has 11 function keys (3 programmable keys + 8 function keys).
Storage and memory:
- Equipped with 64KB non-volatile RAM.
- 64KB flash EPROM for user program storage.
- Store multiple sets of process parameters.
Power and electrical:
- Supply voltage: 24 V DC.
- Power consumption: 3.6 V·A (about 150 mA, 24 V DC).
- Fuse specification: 800 mA, 5×20 mm glass tube fuse
Compare to other CP500 models
|
Function |
CP502 (Text Screen) |
CP513 (Graphic Screen) |
CP555 (Touch Screen) |
|
Display Type |
2×20 - character LCD |
Monochrome/Color LCD |
TFT Color Touchscreen |
|
Memory Capacity |
64 KB |
400 KB |
1600 KB |
|
Recipe Management |
Supported |
Supported |
Supported |
|
Trend Graph/Graphics |
Not Supported |
Supported |
Supported |
|
External Keyboard |
Not Supported |
CK516 Keyboard |
CK516 Keyboard |
Specification
|
Parameter |
Value |
|
Programming Software |
CP500 Soft |
|
Screen Color |
LCD with backlight |
|
Screen Size |
2.8 in |
|
Screen Type |
STN Text |
|
Security |
password protection with 8 user levels |
|
Fuse Size |
5 x 20_MMTx |
|
Fuse Type |
800 mAT |
|
Product Net Depth / Length |
29 mm |
|
Product Net Height |
100 mm |
|
Product Net Weight |
0.37 kg |
|
Product Net Width |
142 mm |
