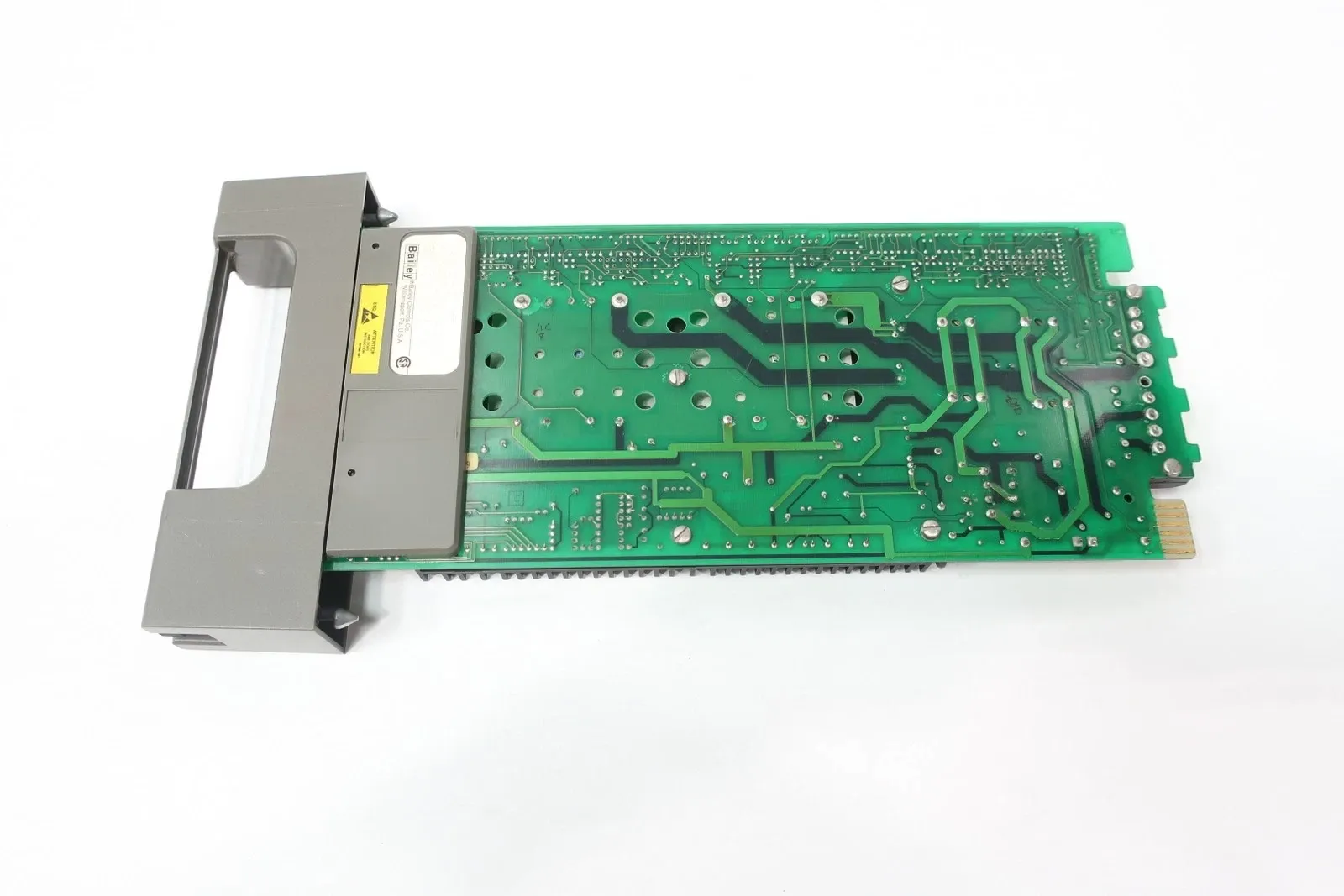

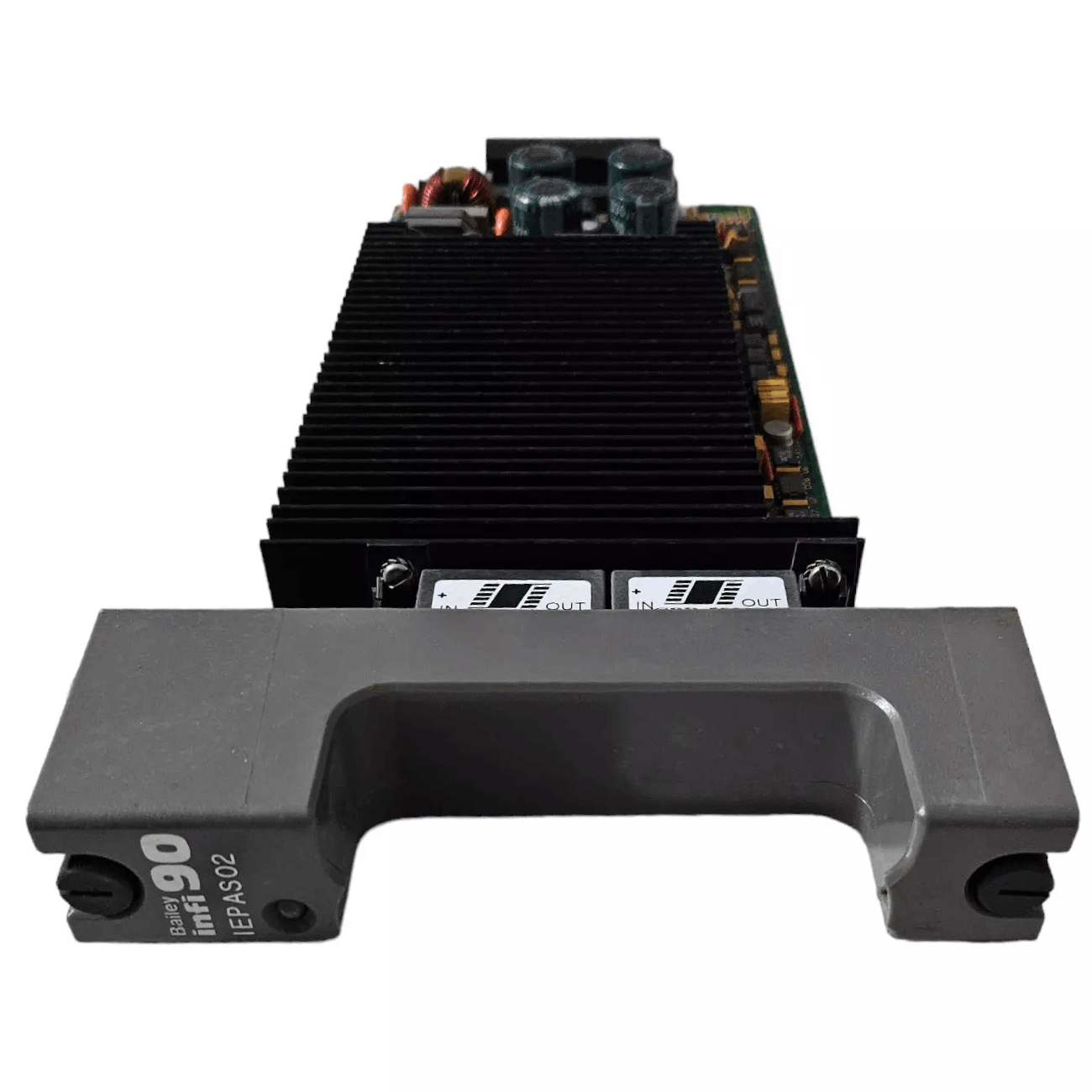

ABB IEPAS02 Power Module
Product Description
ABB IEPAS02 is the power module of INFI 90 AC modular power system, providing +5V, +15V, -15V and +24V DC power for process control modules and field terminal equipment. The system supports N+1 redundant configuration. IEPAS02 module can be used with IEPAF02 field power module and can replace IEPAS01 module.
Function & Features
Voltage conversion capability
- - Input: 120/240 VAC (MMU backplane power supply)
- - Output: +5 VDC, +15 VDC, -15 VDC, +24 VDC
- - Primary conversion: ABB IEPAS02 converts AC to 325 VDC nominal voltage, and then generates secondary regulated voltage through DC-DC converter
Power distribution mode: ABB IEPAS02 transmits voltage to other module mounting units (MMU) through the system power bus to power process control modules
Specifications
|
Jumper Number |
Jumper Position |
Function |
|
J1 |
1-2 |
120 VAC |
|
2-3 |
240 VAC |
|
|
J2 |
1-2 |
Enable 24 VDC undercurrent monitoring |
|
2-3 |
Disable 24 VDC undercurrent monitoring |
|
|
J31 |
1-2 |
Enable 5 VDC undercurrent monitoring |
|
2-3 |
Disable 5 VDC undercurrent monitoring |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A: Power Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
