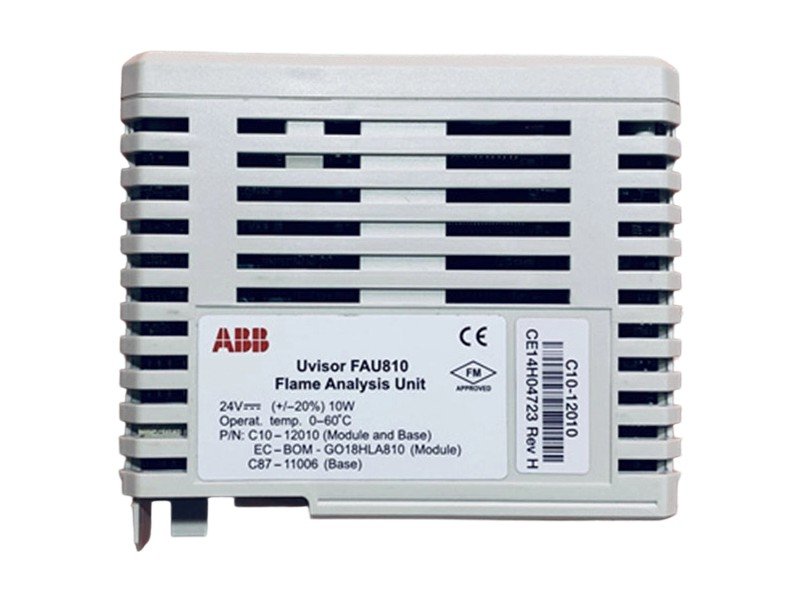

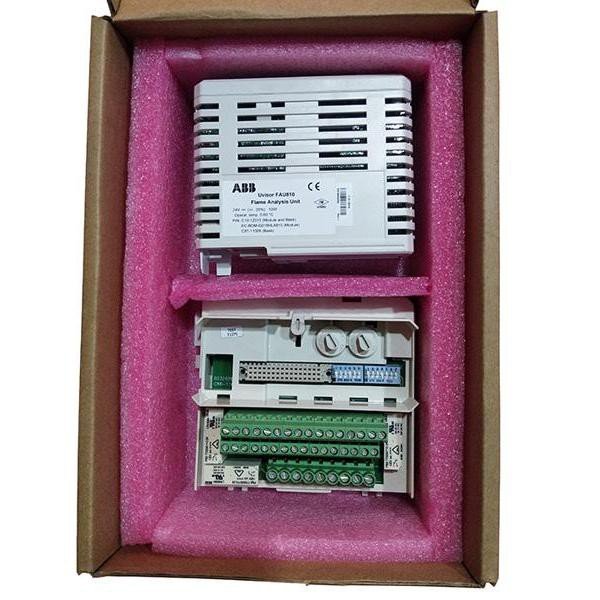

ABB FAU810 C10-12010 Flame Analysis Unit
Item Number:FAU810 C10-12010
Brand: ABB
Lead Time: In stock
Description:Flame Analysis Unit
Payment: T/T
Product Description
ABB FAU810 (C10-12010) is a flame analysis unit and a standard module in ABB's flame detection system,the unit can be used with both older DFS scanners and newer single-sensor and multi-sensor Uvisor™ SF810 and other ABB flame sensing devices.
Function & Features
- ABB FAU810 supports all ABB flame detection devices from traditional DFS scanners to the latest Uvisor™ SF810 (single/multi-sensor).
- ABB FAU810 contains two independent channels, each channel can receive and process flame detector signals, detectors can be combined, and each detector can be independently configured through FAU810 buttons and display, Flame Explorer engineering tool or Profibus.
- Signal quality calculation: The ABB FAU810 (C10-12010) not only detects the presence or absence of a flame, but also calculates signal quality.
Specifications
| Parameter | Details |
|---|---|
| Product Model | FAU810 |
| Part Number | C10-12010 |
|
Flame Failure Relay Drop-Out |
Configurable 0.2 to 4 seconds |
|
Flame Relay(s) |
Three total, each with Form C contacts |
|
Analog Flame Signal Outputs |
Two channels of signals. Each channel may independently monitor Intensity, Frequency, Quality, or AC Amplitude |
|
Self Checking Time Cycle |
Electronics shall be checked every 0.1 seconds |
|
Dimension |
13cm*12cm*11cm(10.63 in*3.54 in*7.48 in) |
FAQ
Q: What is the main function of ABB FAU810 (C10-12010)?
A: Calculates the intensity and quality of the flame signal;
Determines whether the burner has a flame;
Detects faults in the system itself and the detector;
Sends a signal to the main control system when an unsafe condition is detected.
Q: How can the ABB FAU810 be connected to the factory's control system?
A: Through Profibus DP-V1 and Modbus.
Q: What are the applications of the ABB FAU810?
A: Utility boilers and industrial boilers that require flame detection, etc.
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
