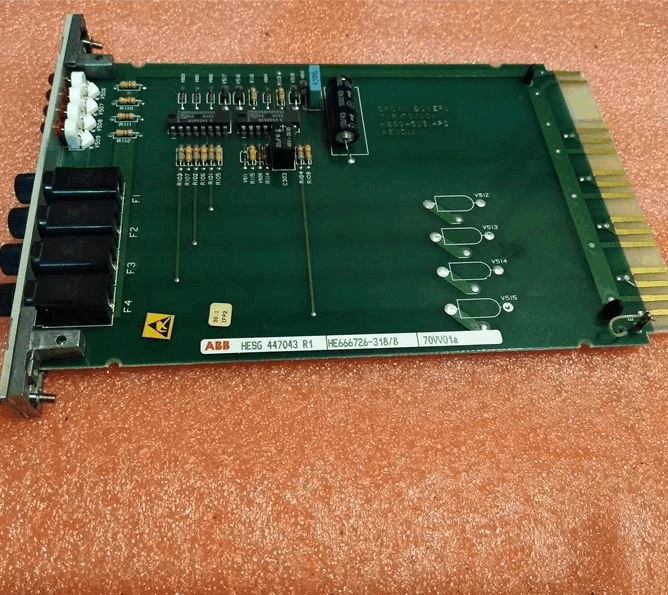

ABB 70VV01A HESG447043R1 Analog Input Board

ABB 70VV01A HESG447043R1 distributed control system analog input module is designed for ABB distributed control systems. Its function is to receive and process analog signals from industrial sites, and then transmit them to the control system for analysis and processing.

In terms of the number of input channels, there are 8 analog input channels, which can receive multiple independent signals.

In terms of input signal type, the current input supports 0-20 mA or 4-20 mA current signals, which are suitable for various industrial sensors and instruments; the voltage input supports 0-10 V or 1-5 V voltage signals, which meet the needs of different types of voltage sensors. In addition, the module has a fast response time, usually in milliseconds.

Fuctions & Features

• Number of input channels:Provides 8 analog input channels, which can be used to receive multiple independent signals.

Input signal type:

• Current input: supports 0-20 mA or 4-20 mA current signals, suitable for a variety of industrial sensors and instruments.

• Voltage input: supports 0-10 V or 1-5 V voltage signals, suitable for different types of voltage sensors.

• Response time:Fast response time, usually at the millisecond level, suitable for real-time data acquisition and processing.

• Operating temperature range: -20°C to +60°C

• Storage temperature range: -40°C to +85°C

• Humidity: RH 5% to 95% (non-condensing)

Specification
