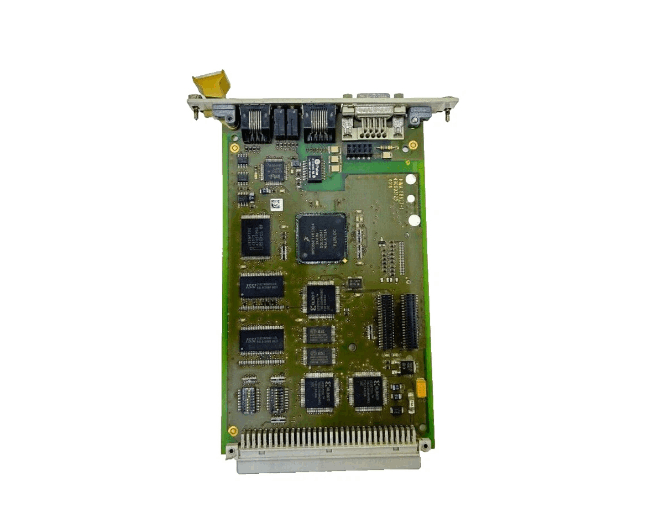

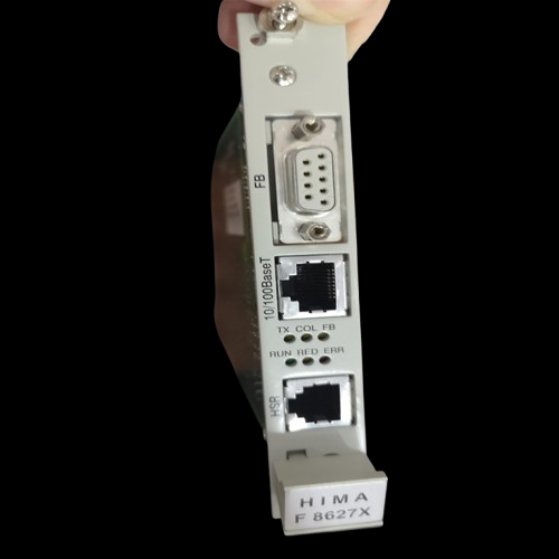

Hima F8627X Communication Module
Product Description
HIMA F8627X is a communication module for HIMA H51q/H41q safety control systems. It is mainly used to realize communication between HIMA safety PLCs and other devices. It realizes safety and non-safety communication through Ethernet, and supports programming and monitoring. This module is a component of the HIMA system's evolution to an open network architecture and is used in conjunction with new HIMA CPUs (such as F8650X/F8652X, F8651X/F8653X).
Function & Features
HIMA F8627X
Protocol support
F8627X supports SafeEthernet, OPC DA, MODBUS - TCP and other protocols. It can also realize OPC A&E communication through HIMA OPC server. It supports ELOP II programming through Ethernet from ELOP II V.4.1.
Programming paradigm
F8627X can use ELOP II to program CPU through Ethernet. It is suitable for new CPUs such as F8650X/F8652X (safety CPU of H51q/H41q system) and F8651X/F8653X (non-safety CPU of H51q/H41q system).
Specifications
|
Category |
Details |
|
Mechanical |
|
| Model | F8627X |
|
Mounting Standard |
19-inch rack module (for H41q/H51q systems) |
|
Height |
3 HU (3 × 44.45 mm = 133.35 mm) |
|
Width |
4 WU (4 × 5.08 mm = 20.32 mm) |
|
Depth |
To be confirmed (standard 19-inch rack depth) |
|
Communication |
|
|
Protocols |
- SafeEthernet (redundant or mono) - MODBUS-TCP Slave - OPC DA & A&E |
|
Ethernet Standard |
100 Base-T (IEEE 802.3u) |
|
Port Type |
RJ45 |
|
Data Rate |
100 Mbps |
|
Safety CPUs |
F8650X, F8652X (H51q/H41q systems) |
|
Non-Safety CPUs |
F8651X, F8653X (H51q/H41q systems) |
|
Software Requirement |
ELOP II V4.1+ (for Ethernet programming) |
