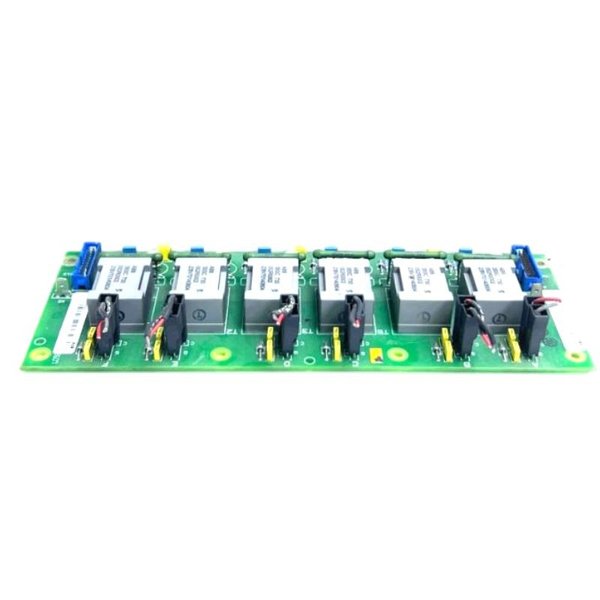

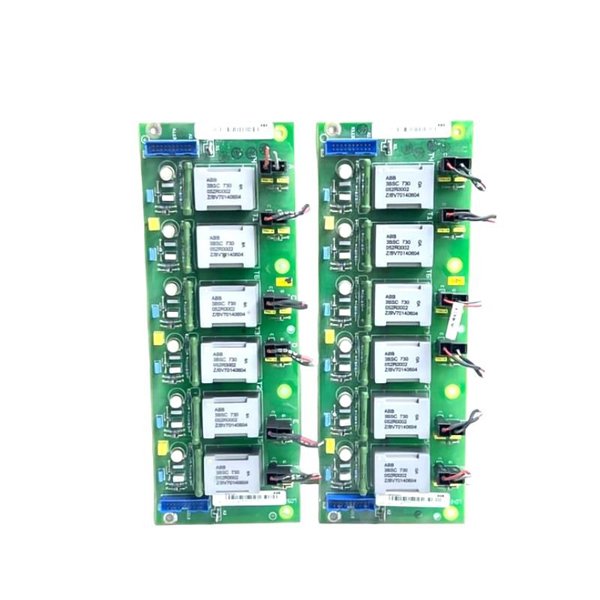

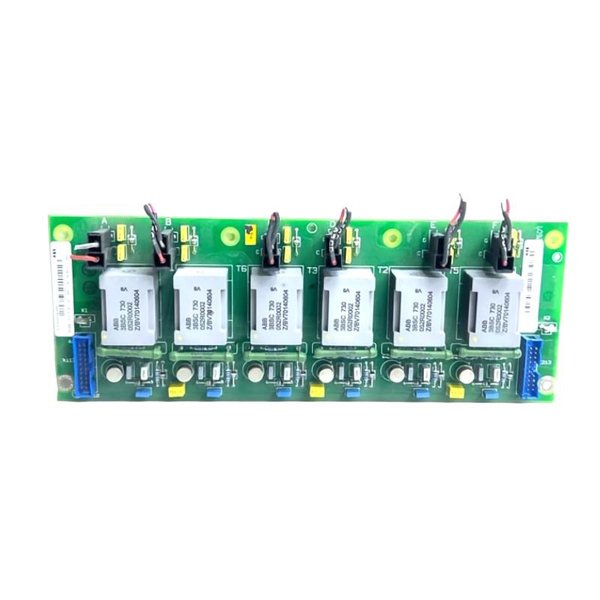

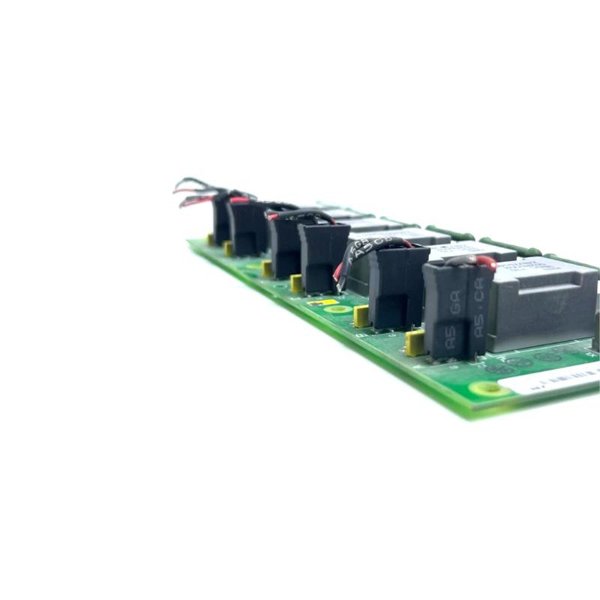

ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board

The ABB SDCS-PIN-48 (Part Number: 3BSE004939R0002) is a high-reliability pulse transformer board designed to interface between control and power sections in ABB DCS400 DC drive systems. Its primary role is to provide galvanically isolated gate firing pulses to power semiconductor devices like thyristors and IGBTs, ensuring safe and precise triggering without allowing electrical disturbances to propagate.

This board is engineered to operate in demanding industrial environments, where electrical isolation, signal integrity, and robust construction are critical. The SDCS-PIN-48 is favored for its reliability, ease of integration, and long-term operational stability, making it a core component in drive system configurations for heavy-duty applications.

Product Specifications

Applications

The SDCS-PIN-48 pulse transformer board is a critical interface module in high-power drive control systems where safe and accurate triggering of power semiconductors is essential.

Common application areas include:

• Steel Industry: Rolling mills, annealing lines, and furnaces

• Paper & Pulp: Paper machine drives, winders, and cutters

• Mining & Conveyance: Drive control for crushers, conveyors, and hoists

• Marine & Offshore: Propulsion control, winch systems, and lift motors

• Power Generation: Auxiliary drive systems in hydropower and thermal plants

• Manufacturing Automation: Synchronization of motor drives in production lines

Product Advantages

• Robust Electrical Isolation

  Ensures reliable operation by separating control signals from high-voltage circuits.

• Stable Gate Pulse Output

  Delivers high-integrity pulses that reduce misfiring and improve switching accuracy.

• Industrial Reliability

  Built for 24/7 operations in harsh industrial environments.

• Easy Installation

  Plug-in module with ABB standard connector interface; no additional setup required.

• No Calibration Needed

  Designed as a maintenance-free component with long service life.

• System Integrity

  Reduces ground loop and electrical noise interference within drive cabinets.

Frequently Asked Questions (FAQ)

1. What does the SDCS-PIN-48 board do?

   It transmits isolated gate firing pulses to thyristors or IGBTs.

2. Which systems is it compatible with?

   It is designed for use in ABB DCS400 DC drive systems.

3. Is it hot-swappable?

   No, the system should be powered down before replacement.

4. What isolation level does it provide?

   Over 2.5 kV galvanic isolation.

5. Does it need programming or configuration?

   No, it operates as a fixed-function hardware module.

6. What could cause a failure in this board?

   Overvoltage, poor ventilation, or ESD damage during handling.

7. How can I identify a board malfunction?

   Motor fails to start, gate firing faults, or drive error codes appear.

8. Can it be used in humid environments?

   Yes, up to 95% RH non-condensing within a sealed drive cabinet.

9. What kind of maintenance is required?

   None, apart from ensuring the cabinet is clean and dry.

10. How is it installed?

    It is inserted into a designated slot in the drive rack and connects automatically.
