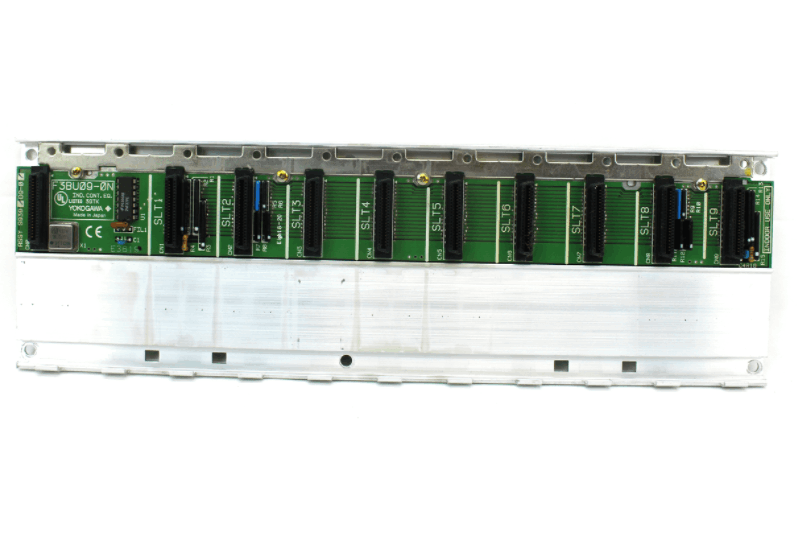

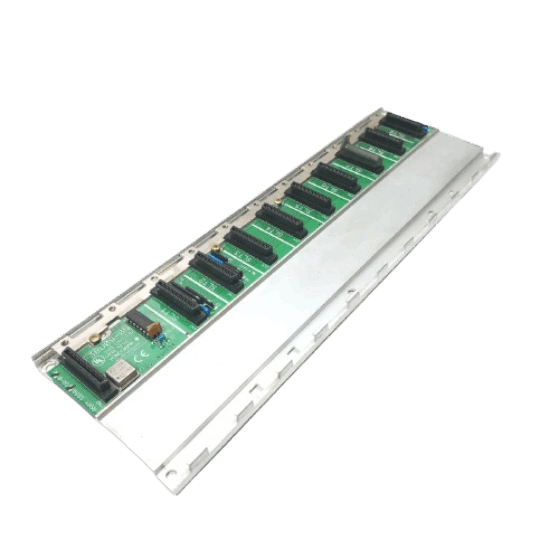

Yokogawa F3BU09-0N Base Module
Product Description
Yokogawa F3BU09-0N is a 9-slot base module of the FA-M3 series, used to install and connect various functional modules (such as CPU, I/O, communication modules, etc.). It can be used with power modules such as F3PU20, F3PU30, F3PU26 or F3PU36. This series of bases provides 4, 5, 6, 9, 13 and 16 slots. F3BU09-0N is a 9-slot version.
Fuction & features
- General: F3BU09-0N has no master/slave unit distinction, and the base module functions are the same. Metal chassis design, signal ground (SG) is directly connected to the metal chassis.
- Total current limit: When using F3BU09-0N, the current consumption of the installed module must not exceed the power supply capacity of the power module.
- Slots provided: F3BU09-0N provides 9 slots to support the installation of FA-M3 series modules (such as CPU, digital/analog I/O, communication modules, etc.).
Specifications
|
Parameter |
Details |
| Model | F3BU09 |
| Suffix Code | 0N |
| Type | 9 slots (excluding slots for power supply) |
|
Number of slots |
13 |
|
Number of I/O slots* |
12 |
|
Current consumption |
50mA(5V DC) |
|
Weight (g) |
470g |
|
Surrounding air temperature range |
Operating: 0 to 55°C Storage: -20°C to 75°C |
|
Surrounding humidity range |
Operating: 10 to 90% RH (non - condensing) Storage: 10 to 90% RH (non - condensing) |
|
Surrounding atmosphere |
Must be free of corrosive gases, flammable gases or heavy dust. |
FAQ
Q: What is the brand?
A: Yokogawa
Q: What is the type?
A:Base Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
