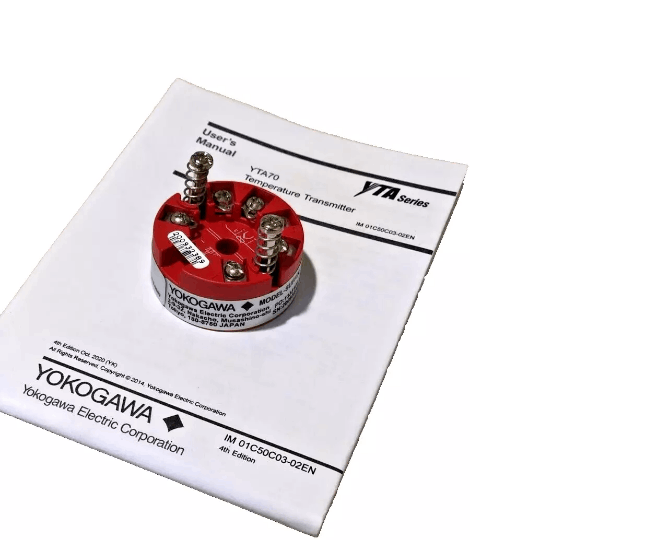

Yokogawa YTA70-E/KS2 Temperature Transmitter
Item Number: YTA70-E/KS2
Brand: Yokogawa
Lead Time: In stock
Description: Temperature Transmitter
Payment: T/T
Product Description
Yokogawa YTA70-E/KS2 is a head-mounted temperature transmitter that can receive a variety of input signals such as thermocouples, thermal resistors (RTDs), ohms or DC millivolts, and convert them into standard signal outputs. The transmitter complies with the DIN B head-mounted standard and is ATEX intrinsically safe (KS2 suffix).
Fuction & features
- Input type: YTA70-E/KS2 supports 17 sensor inputs, including thermocouples (such as K, J, T), RTD (such as Pt100), resistance and millivolt signals.
- Output signal: 4~20mA DC analog output, superimposed HART digital communication (HART 5 or HART 7 optional).
- HART protocol function: HART 7 version supports 32-character long tag names, enhanced burst mode (Burst Mode), event notification and command aggregation functions. It can be easily configured through FDT/DTM technology.
- Head-mounted installation: YTA70-E/KS2 complies with DIN B standard and is directly installed on the sensor junction box.
Specifications
|
Category |
Details |
|
Model |
YTA70-E/KS2 |
|
Power Supply Effects |
±0.005% of FS per Volt |
|
Maximum Zero offset |
±50% of selected maximum value |
|
Input Resistance (for thermocouples, mV) |
10 MΩ, or 3 kΩ at power - off |
|
Input Lead Wire Resistance (for RTD, ohm) |
5 Ω per wire or lower |
|
Output |
Two wire 4 to 20 mA DC |
|
Response Time |
1 to 60 seconds programmable |
|
Material |
Polycarbonate |
|
Color of the case |
Red |
|
Mounting |
DIN form B head mounting |
|
Terminals |
M3 screws |
|
Weight |
50 g (0.11 lb) |
