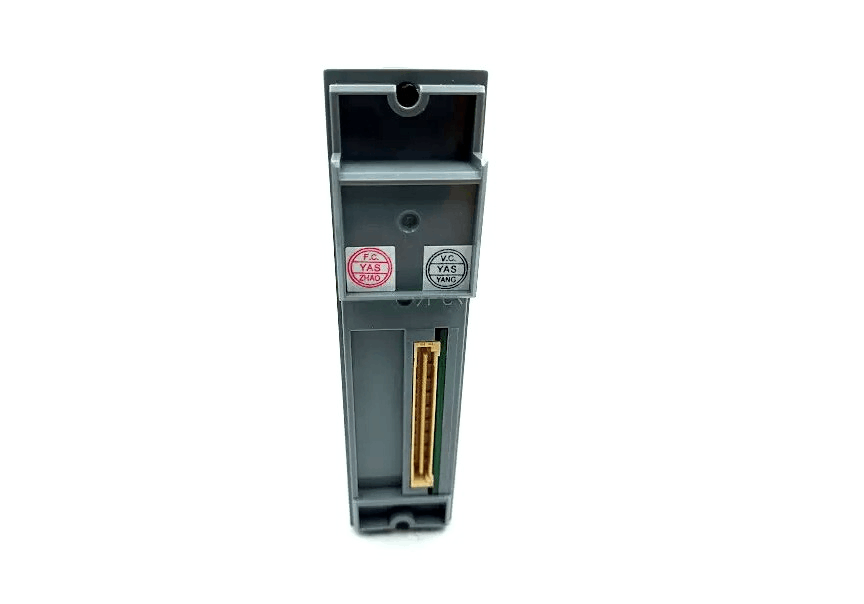

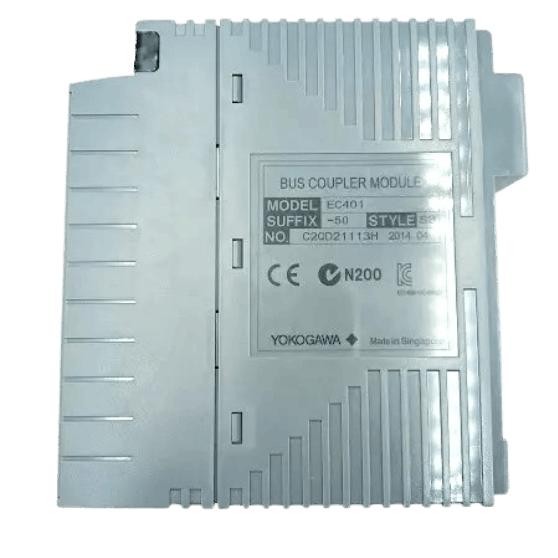

Yokogawa EC401-50 ESB Bus Coupler Module
Item Number:EC401-50
Brand: Yokogawa
Lead Time: In stock
Description:ESB Bus Coupler Module
Payment: T/T
Product Description
EC401-50 is an ESB bus coupling module produced by Yokogawa. It is a communication interface module used to connect field control units and node units. It has ESB bus interface function and is a key module for realizing ESB bus communication between field control units and node units.
This module supports redundant configuration and can be installed in various types of field control units. By installing two modules, a dual redundant ESB bus can be configured.
Function&Features
- Communication interface: EC401-50 provides ESB bus interface for data exchange between field control units (such as AFV30S, AFV40D, etc.) and node units (such as ANB10S, ANT401, etc.).
- Clear installation location: When non-redundant ESB bus, it needs to be installed in the 7th slot of a specific field control unit, and the 8th slot is covered by a virtual module; when dual redundant, the module must be installed in both the 7th and 8th slots.
- Adaptation: Only EC401 of S3 and above can be used with CP471 processor module.
Specifications
|
Maximum connectable units |
9 units (*1) |
|
Transmission speed |
128 Mbps (I/O module data transfer) |
|
Maximum transmission distance |
10 m |
|
Current consumption |
0.5 A |
|
Weight |
0.4 kg |
MODEL AND SUFFIX CODES:
|
Category |
Code |
Description |
|
Model |
EC401 |
ESB Bus Coupler Module (for N-IO/FIO, 1-Port) |
|
Suffix Codes |
-5 |
Standard type with no explosion protection |
|
-E |
Standard type with explosion protection |
|
|
0 |
Basic type |
|
|
1 |
With ISA Standard G3 option |
FAQs
Q: What is the brand?
A:Yokogawa
Q: What is the type?
A:ESB Bus Coupler Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping lovation?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
