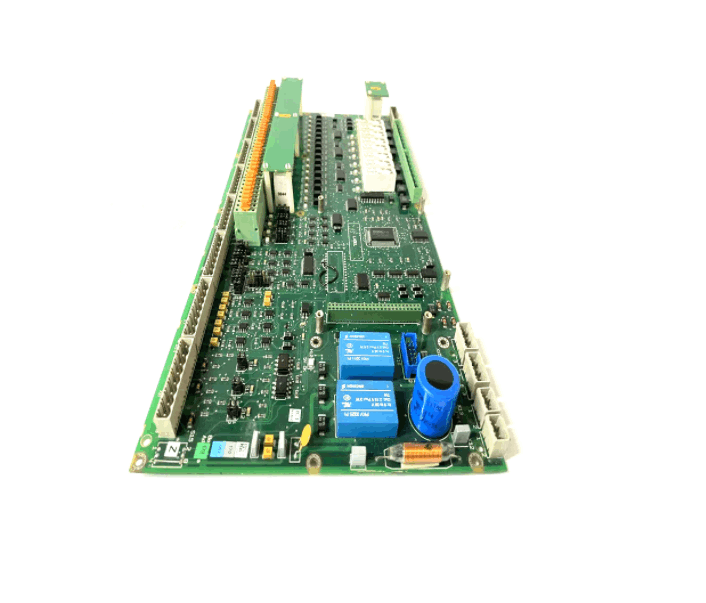

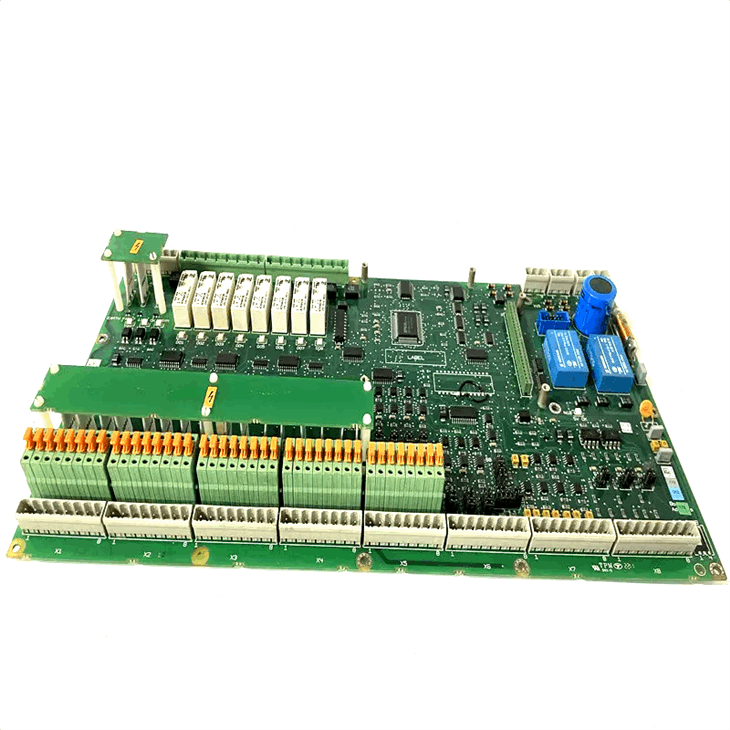

ABB DATX 110 3ASC25H209 I/O Terminal Block
Item Number:DATX 110 3ASC25H209
Brand: ABB
Lead Time: In stock
Description:I/O Terminal Block
Payment: T/T
Product Description
ABB DATX 110 3ASC25H209 is an I/O terminal board. The following describes the jumper settings related to different analog input and output channels on the board, including the jumper configurations of analog input channel 5 (channel 8), channel 6 (channel 8), and analog output channel 2 (channel 2), to adapt to different types of signal input and output.
Function & Features
- Analog Input Channel 5 (8) Function: The ABB DATX 110 processes load cell signals and supports 0-20 mA or 4-20 mA current inputs and 0-10 V voltage inputs. Different connections of jumper S5 enable different functions.
- Analog Input Channel 6 (8) Function: The ABB DATX 110 processes 0-10 V weighing signals. Jumper S6 is set up similarly to Analog Input Channel 5 (8). Different connections are used to source current from the sensor, connect a shunt resistor, and connect the negative input to ground.
- Analog Output Channel 2 (No. 2) Function: The ABB DATX 110 processes the 0-10 V output of the load cell. No jumpers need to be set. Jumpers marked with an "x" need to be installed. Jumpers marked with an "(x)" are not important.
Specifications
| Input Voltage Range | 20.4 V DC to 28.8 V DC |
| Output Current Per Channel | 0.5 A |
| Operating Temperature Range | -20°C to +65°C |
| Dimensions | 160 mm x 100 mm x 25 mm |
| Condition | New |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A: I/O Terminal Block
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
