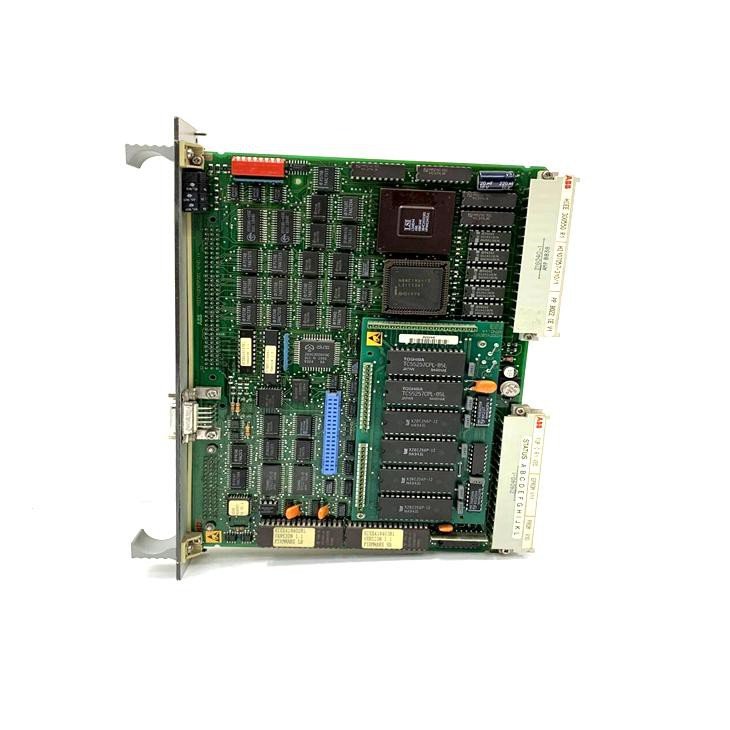

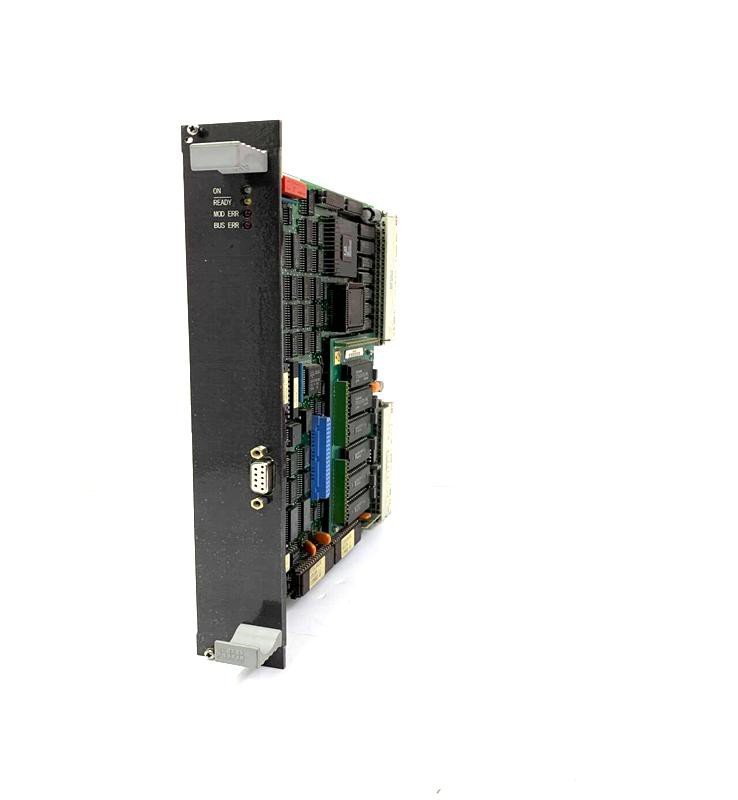

ABB PPB022CE HIEE300550R1 Processor Board
Item Number:PPB022CE HIEE300550R1
Brand: ABB
Lead Time: In stock
Description:Processor Board
Payment: T/T
Product Description
ABB PPB022CE HIEE300550R1 processor board is a processor board designed for ABB industrial automation systems. The processor board can efficiently handle complex computing tasks, signal processing and control functions to ensure system operation. It supports multiple input types, including 0-20 mA analog input and 8 0-5 V digital input channels, which can meet the needs of various industrial applications.
Fuctions & Features
- Power supply:ABB PPB022CE Processor Board is powered by a 24 VDC DC power supply. The power supply circuit stabilizes and filters the input 24 VDC power supply to ensure that a stable and pure DC voltage is provided to each circuit module on the board.
- Signal acquisition: When connecting external analog sensors and other devices, the 0-20 mA current signal output by the sensor enters the analog input channel of the ABB PPB022CE Processor Board.
- Signal conversion: The ABB PPB022CE Processor Board usually converts the input current signal into a voltage signal through a precision sampling resistor, and then the voltage signal is amplified and filtered by the signal conditioning circuit to improve the signal quality.
- Analog-to-digital conversion: The conditioned voltage signal is sent to the analog-to-digital converter (ADC), which converts the analog voltage signal into a digital signal so that the ABB PPB022CE Processor Board can process and analyze it.
Specifications
Operating Voltage:
24 VDC: Provides a stable 24 VDC operating voltage to ensure reliable operation in a variety of industrial environments.
Current Draw:
Maximum Current Draw: 200 mA,Optimizes energy efficiency while meeting high power requirements.
Analog Input:
Input Range: 0 - 20 mA,Supports processing of analog sensor data or other analog control signals.
Digital Input:
8 digital input channels: Each channel has a logic level of 0 - 5 V, suitable for connecting digital sensors, switches or other devices that require binary input signals.
Physical Parameters:
Dimensions: 136 mm x 60 mm x 85 mm
Weight: 0.8 kg
