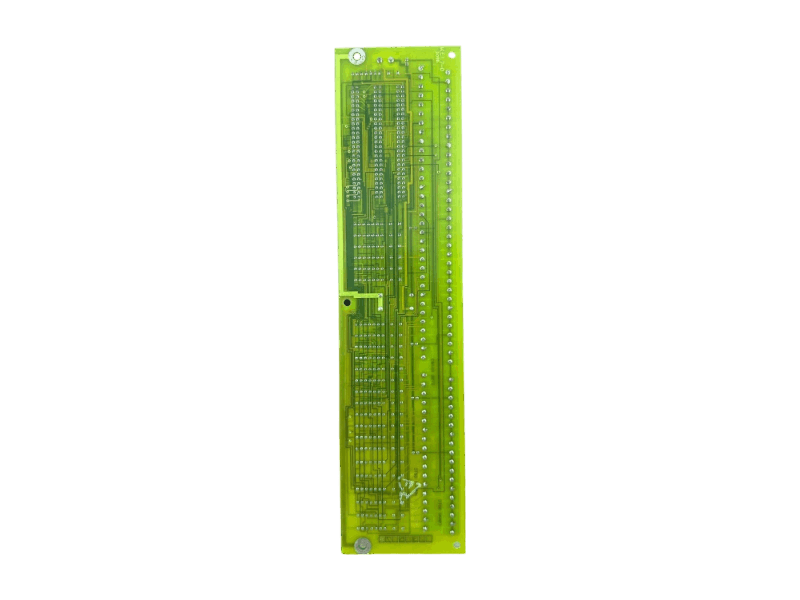

General Electric DS200DTBBG1A DS200DTBBG1ABB Terminal Digital Connector Board
Item Number: DS200DTBBG1A DS200DTBBG1ABB
Brand:GE
Lead Time: In stock
Description:Terminal Digital Connector Board
Payment: T/T
Product Description
GE DS200DTBBG1A/DS200DTBBG1ABB is a terminal board/digital connector card that provides connection points (signal connection terminals) for a large number of digital signals and can access a large number of digital input/output signals.
Note: The three 40-pin connectors (JFF, JFG, JFH) must be correctly connected to the corresponding ribbon cables. If connected incorrectly, the entire drive system will not work properly.
Function & Features

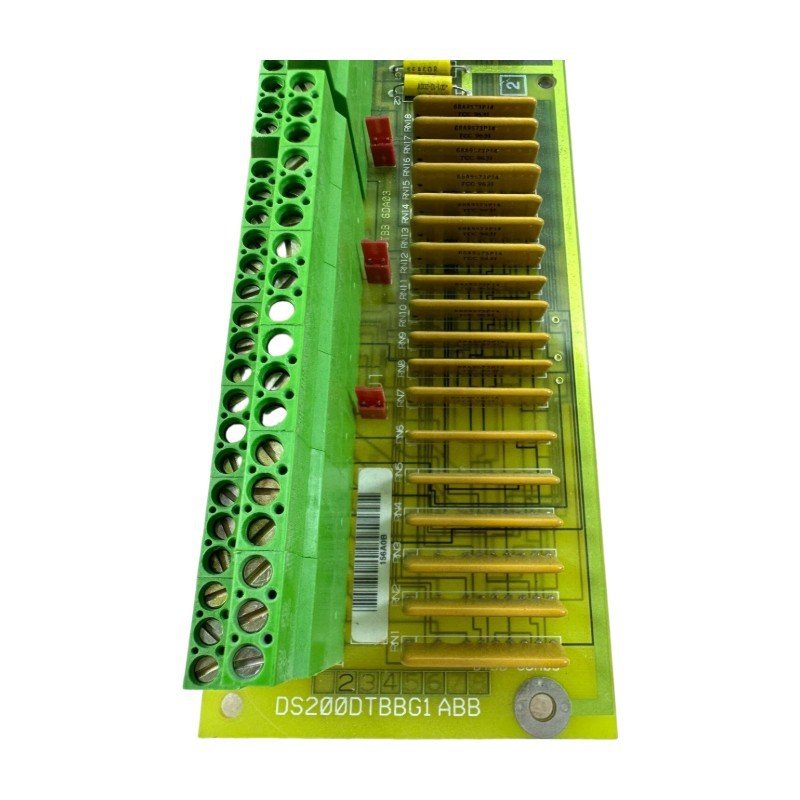

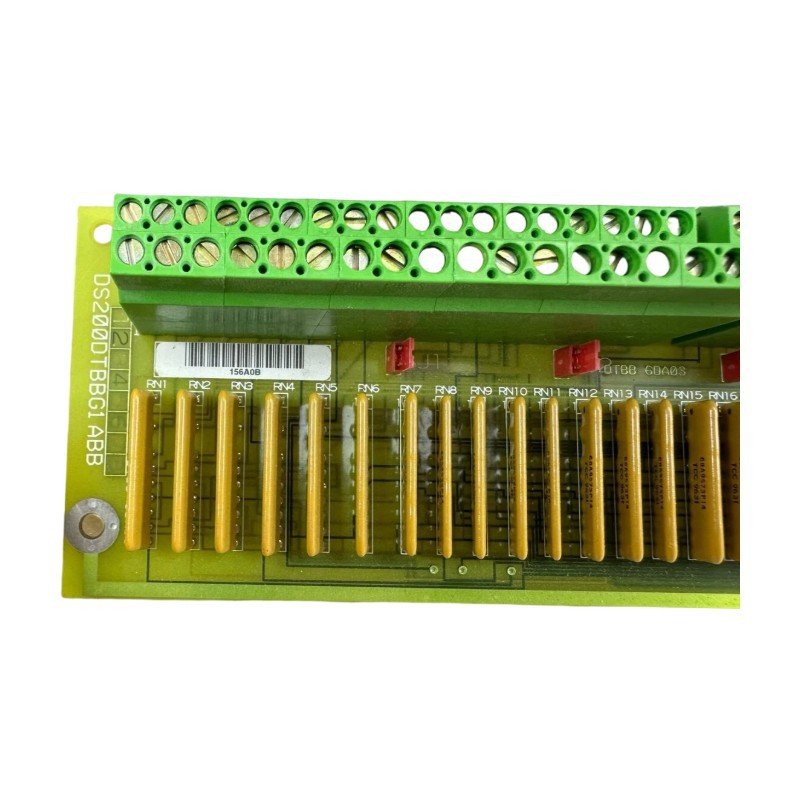

- Signal Interfaces: The DS200DTBBG1A board's primary function is providing a large number of signal connectors. It features two large terminal blocks (TB1 and TB2) that can connect up to 110 signal lines (95 per block).

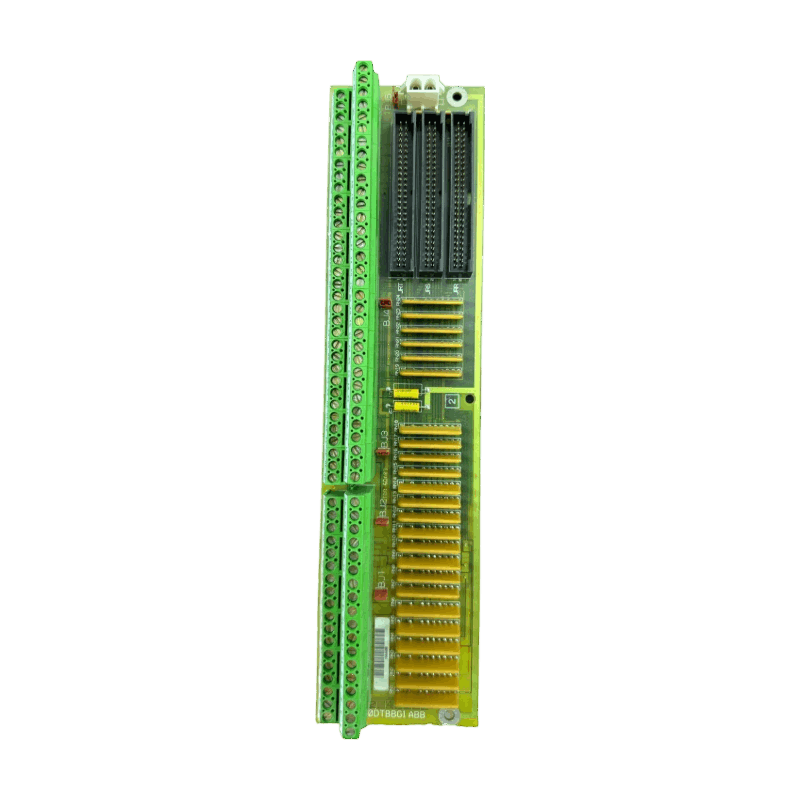

- Board-to-Board Connections: The DS200DTBBG1A board is equipped with three 40-pin connectors (JFF, JFG, and JFH) for data communication with other boards within the system via ribbon cables.
- Marking System: Each terminal and connector is clearly labeled, with the two terminal blocks marked TB1 and TB2. Each terminal on each block is individually numbered (e.g., TB1 90, TB2 48).
Specifications
| Parameter | Description |
|---|---|
| Product Model | DS200DTBBG1A/DS200DTBBG1ABB |
| Board Type | Terminal board/Digital signal connector interface board |
| Main Function | Provide terminal blocks and interfaces for Digital Input (DI) and Digital Output (DO) signals |
| Terminal Blocks | 2, identified as TB1 and TB2 |
| Signal Capacity per Terminal Block | Up to 95 signal terminals (a total of about 190 points) |
| Other Connectors | Include 5 jumpers and bayonet connectors |
| Length | 300.83 mm |
| Width | 100.01 mm |
| Weight | 470 g |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
