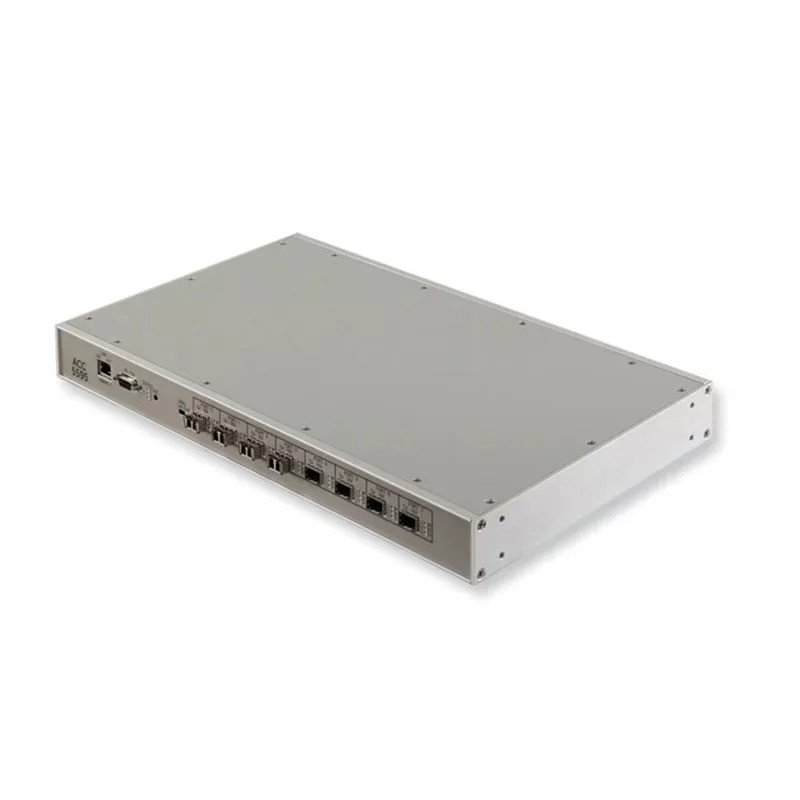

GE ACC-5595 Reflective Memory Hub

The GE ACC-5595 functions as a managed hub within the 5565 family of Reflective Memory real-time network products. It acts as a central connection point, ensuring efficient and reliable data transfer among multiple devices.

Key Features

• Scalability: The hub supports up to eight ports using small form factor pluggable (SFP) transceivers. This feature allows for flexible network expansion.
• Reliability: It automatically bypasses faulty or disconnected nodes, ensuring continuous operation within the network.
• Performance: Each port regenerates the optical signal, minimizing signal loss and jitter. This results in high-quality data transmission.
• Versatility: The hub is configurable for use with cables up to 10 km in length, accommodating various network topologies.
• Management: Users can access both local and remote configuration and monitoring through RS-232 and 10BaseT Ethernet ports.
• Compatibility: The hub is specifically designed for use with Abaco Systems 5565 Reflective Memory network products.

Technical Specifications

• Bit Rate: Varies based on SFP transceiver
• Form Factor: 19″ 1U rack mount or desktop
• Function: Managed Hub
• Memory: N/A
• Operating System: N/A
• Ports: 8x SFP

Additional Features

• Cascading: Up to 256 nodes can be cascaded.
• Automatic Bypass: Configurable based on signal loss or sync pattern.
• Dark on Dark: Optionally turns off the transmitter if no signal is detected.

Applications

The GE ACC-5595 is ideal for high-performance, real-time networks in various industries, including:

• Aerospace: Used for mission-critical systems and data acquisition.
• Defense: Applied in military communication and control.
• Industrial Automation: Serves in process control and monitoring.
