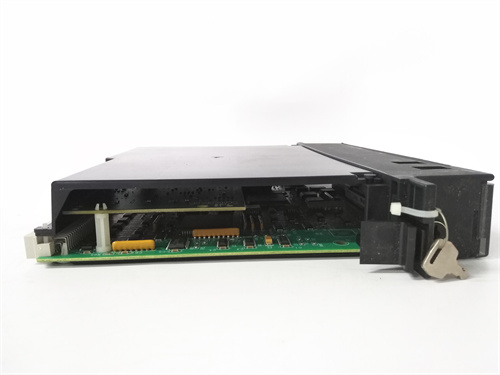

GE IC697CPM790 Detailed Introduction

GE IC697CPM790 is a high-performance PLC CPU with high-speed computing,high reliability and multiple interface functions.It is suitable for the field of industrial automation and control systems and can complete various complex control and computing tasks.

Main Features

Processor performance

64MHz,32-bit floating-point processor,supports 32-bit floating-point operations and 80486DX2 performance.

Single-slot programmable controller CPU,allowing floating-point operations.

Memory configuration

Equipped with 1MB memory,of which 512Kbytes can be used for user applications and data.

CMOS RAM memory board with battery support ensures that data can be saved even in power failure.

Interface and communication

Firmware upgrades can be performed through the serial port,providing module operation control and alarm functions.

Supports multiple communication protocols and control methods,such as serial communication,fieldbus protocol,etc.

Programmable and configurable through Ethernet TCP/IP or SNP port.

Modularity and expandability

As a single-slot CPU,it can seamlessly connect and communicate with a variety of I/O and intelligent option modules.

Supports IC660/IC661 input/output(supports IC697 input/output only in simplex mode).

Operation and control

Three-speed run/stop switch control,can also be remotely controlled by the connected programmer and programming software.

Program and configuration data can be locked by software password,or manually locked by memory protection key switch.

Indication and status

The status of the CPU is displayed by four green LED indicators on the front of the module,which is convenient for users to monitor and diagnose.

Application fields

GE IC697CPM790 PLC central processor is widely used in industrial automation and control systems,including but not limited to the following fields

Manufacturing:Control machine tools,production lines,assembly lines,etc.to improve production efficiency and product quality.

Process control:Plays a key role in process control in chemical,petroleum,natural gas and other industries.

Energy management:Monitor and control power equipment to ensure efficient operation of energy systems.

Building automation:Control lighting,air conditioning,heating and other equipment in buildings to improve energy efficiency.

Traffic signal control:Control of traffic lights and other traffic equipment in urban traffic systems.
