GE ACC-5595 Reflective Memory Related Documents

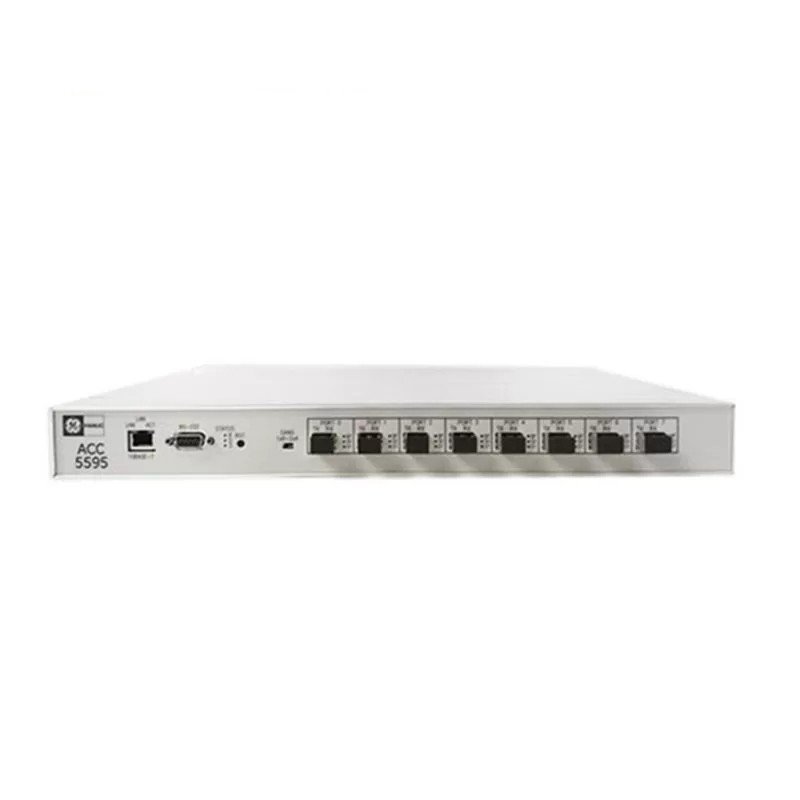

The GE ACC-5595 is a managed hub designed to work with GE Intelligent Platforms’ 5565 family of Reflective Memory real-time network products. It offers high performance and fault tolerance, capable of connecting up to 256 nodes in a network.

Key Features

• Supports up to 256 nodes
• SFP transceivers for flexible configuration
• Automatic bypass of defective or disconnected nodes
• 10BaseT Ethernet TCP/IP port for remote access and control
• RS-232 port for local access and control
• Optional 19-inch 1U rack mount or desktop enclosure
• Internal universal power supply

Applications

• Industrial automation
• Defense and aerospace
• Transportation
• Medical
• Scientific research

Technical Specifications

• Number of ports: 8
• Port type: SFP
• Data rate: Up to 2.5 Gbps
• Fiber optic distance: Up to 10 km (6.2 miles)
• Power supply: 100-240 VAC, 50/60 Hz
• Operating temperature: 0 to 55°C (32 to 131°F)
• Storage temperature: -40 to 70°C (-40 to 158°F)
• Humidity: 5% to 95% non-condensing
• Dimensions: 19 inches (48.3 cm) x 1.75 inches (4.4 cm) x 16.8 inches (42.7 cm)
• Weight: 24 pounds (10.9 kg)
