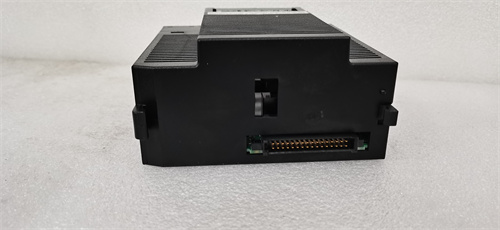

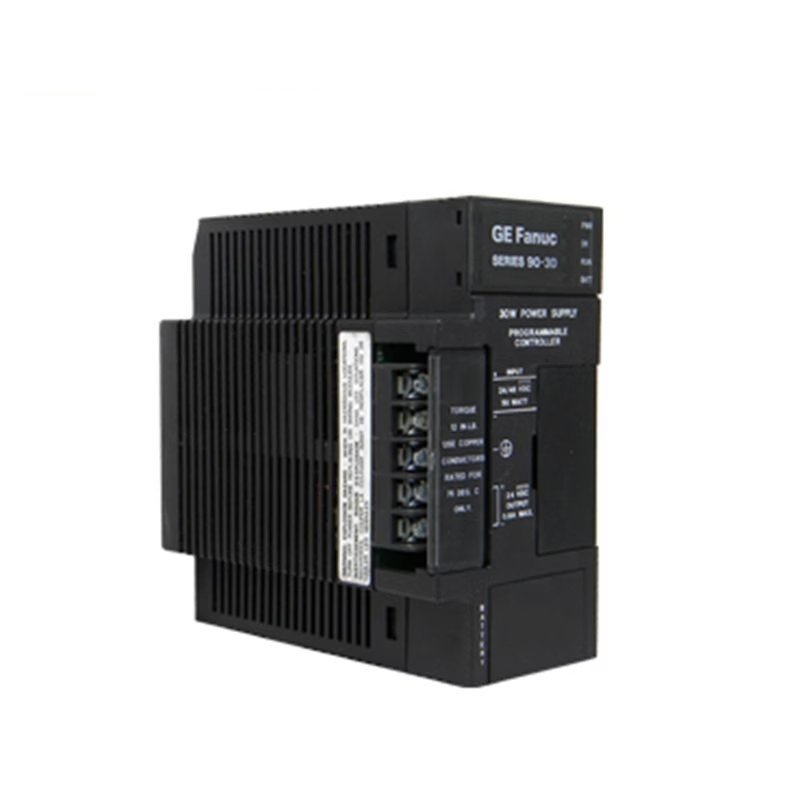

GE IC693PWR322 Product Introduction

GE IC693PWR322 is a high-performance power module designed and manufactured by General Electric(GE).The following is a detailed introduction to the product.

Basic features

Brand and model:GE IC693PWR322

Origin:United States

Input voltage:supports a wide range of input voltages,including 85264V AC and 120350V DC,suitable for power grid standards in different regions of the world.However,there are also claims that it requires an input power supply voltage of 24 to 48VDC.

Output voltage and current:Provides stable 5V DC and 24V DC dual-channel output voltages.Among them,the maximum output current of 5V is 6A,and the maximum output current of 24V is 2A.There are also claims that+5VDC output is used for backplane power supply,with a maximum of 30 watts;+24VDC relay power supply output is a maximum of 5 watts;isolated+24VDC is a maximum of 20 watts(not more than 30 watts in total).

Power:30 watts

Efficiency:The conversion efficiency of the power module is as high as 85%,which reduces energy loss and improves the overall energy efficiency of the system.

Dimensions and weight:The module is compact and lightweight,making it easy to install and maintain.The specific dimensions are 133mm×115mm×38mm(or similar dimensions)and the weight is approximately 0.5kg(the specific weight may vary depending on product batches and accessories).

Features

Multiple outputs:It has three outputs,including+5VDC,+24VDC isolation and+24VDC relay outputs,and each power output has a specific function.

Status indicator:It has four status indicators,such as PWR LED,OK LED,RUN LED and BATT LED,which are convenient for users to monitor the power status.

Communication port:It has an RS485 communication port,allowing the connection of programming workstations,GE Fanuc handheld programmers and other devices compatible with the RS485 communication standard.

Protection function:It has overload protection,overvoltage protection and short circuit protection functions to ensure that the module can automatically cut off the output under abnormal conditions to protect the system safety.

Memory battery:Managed RAM battery,used to retain RAM content,the battery can be replaced with IC693ACC301.

Application Fields

GE IC693PWR322 power module is widely used in manufacturing,energy,transportation,building automation and other fields.It is suitable for PLC systems,DCS systems and other industrial control occasions that require stable power supply.It is mainly used as the power supply for CPU and other modules to ensure stable operation of the system.
